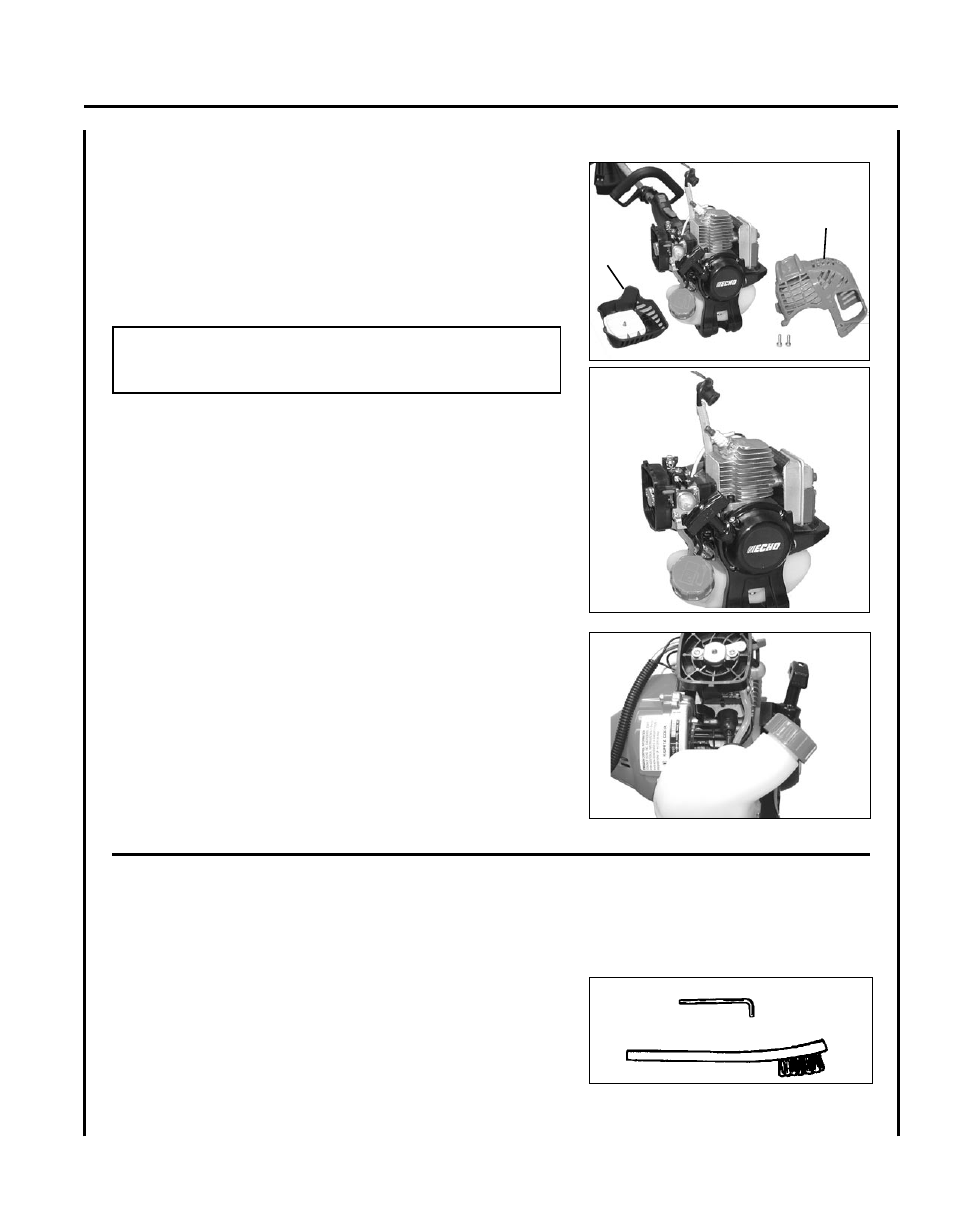

1. Remove spark plug lead.
2. Remove air cleaner cover (A).
3. Remove 2 engine cover screws and engine cover (B).
(1 machine screw - handle side)
(1 tapping screw - starter side)
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
4. Use brush to remove dirt from the cylinder fins.
5. Remove ignition wires from clip for cleaning.
6. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
7. Assemble components in reverse order.
A
B
eXhaust system
Spark Arrestor Screen
Level 2.
Tools Required: Torx L-Wrench T27, Soft Metal Brush
Parts Required: Spark Arrestor Screen, Gasket
