Electrical connection
Any electrical work required to
install this cooker should be
carried out by a qualified
electrician or competent
person, in accordance with the
current regulations.
THIS COOKER MUST BE
EARTHED.
The manufacturer declines any liability
should these safety measures not be
observed.
This cooker is designed to be
connected to a 230 V 50 Hz AC electrical
supply.
Before switching on, make sure the
electricity supply voltage is the same as
that indicated on the cooker rating plate.
The rating plate is located on the oven
frame.
The cooker is supplied with a 3 core
flexible supply cord incorporating a
13amp plug fitted. In the event of having
to change the fuse, a 13amp ASTA
approved (BS 1362) fuse must be used.
Should the plug need to be replaced
for any reason, the wires in the mains lead
are coloured in accordance with the
following code:

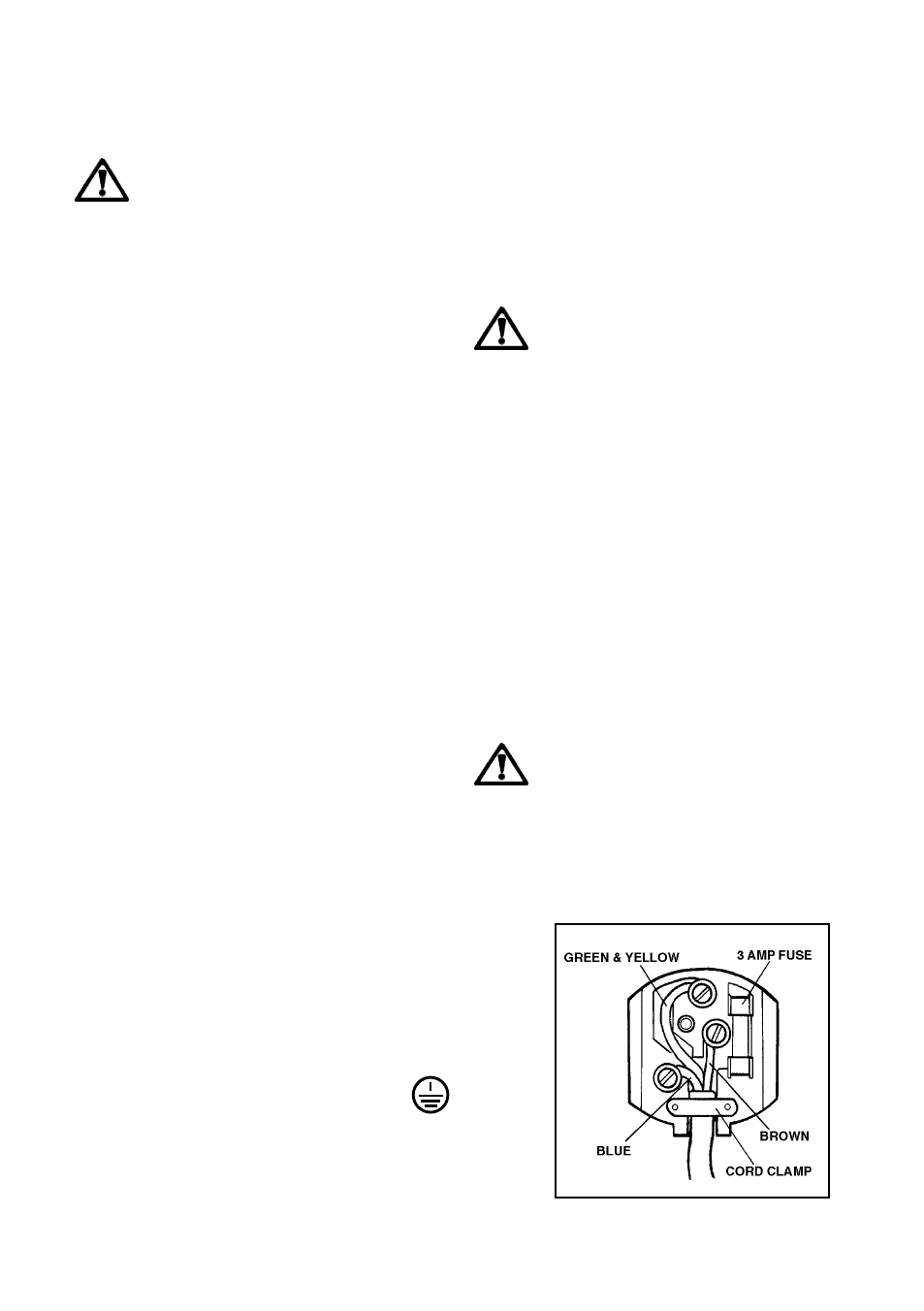

Green and Yellow - Earth
Blue
- Neutral
Brown - Live
— Connect the green and yellow
(earth) wire to the terminal in the
plug which is marked with the
letter 'E' or the earth symbol
or coloured green and yellow.
— Connect the blue (neutral) wire
to the terminal in the plug which
is marked with the letter 'N' or
coloured black.
— Connect the brown (live) wire
to the terminal in the plug which
is marked with the letter 'L' or
coloured red.
Upon completion there must be no
cut, or stray strands of wire present and
the cord clamp must be secure over the
outer sheath.
A cut off plug inserted into a
13 amp socket is a serious
safety (shock) hazard. Ensure
that the cut off plug is
disposed of safely.
Permanent Connection
In the case of a permanent
connection, it is necessary that you install
a double pole switch between the cooker
and the electricity supply (mains), with a
minimum gap of 3 mm. between the
switch contacts and of a type suitable
for the required load in compliance with
the current electric regulations.
The switch must not break the yellow
and green earth cable at any point.
Ensure that the cooker supply
cord does not come into
contact with surfaces with
temperatures higher than 50
deg. C.
