Electro-Voice ZX5-60 - Manual (Page 2)

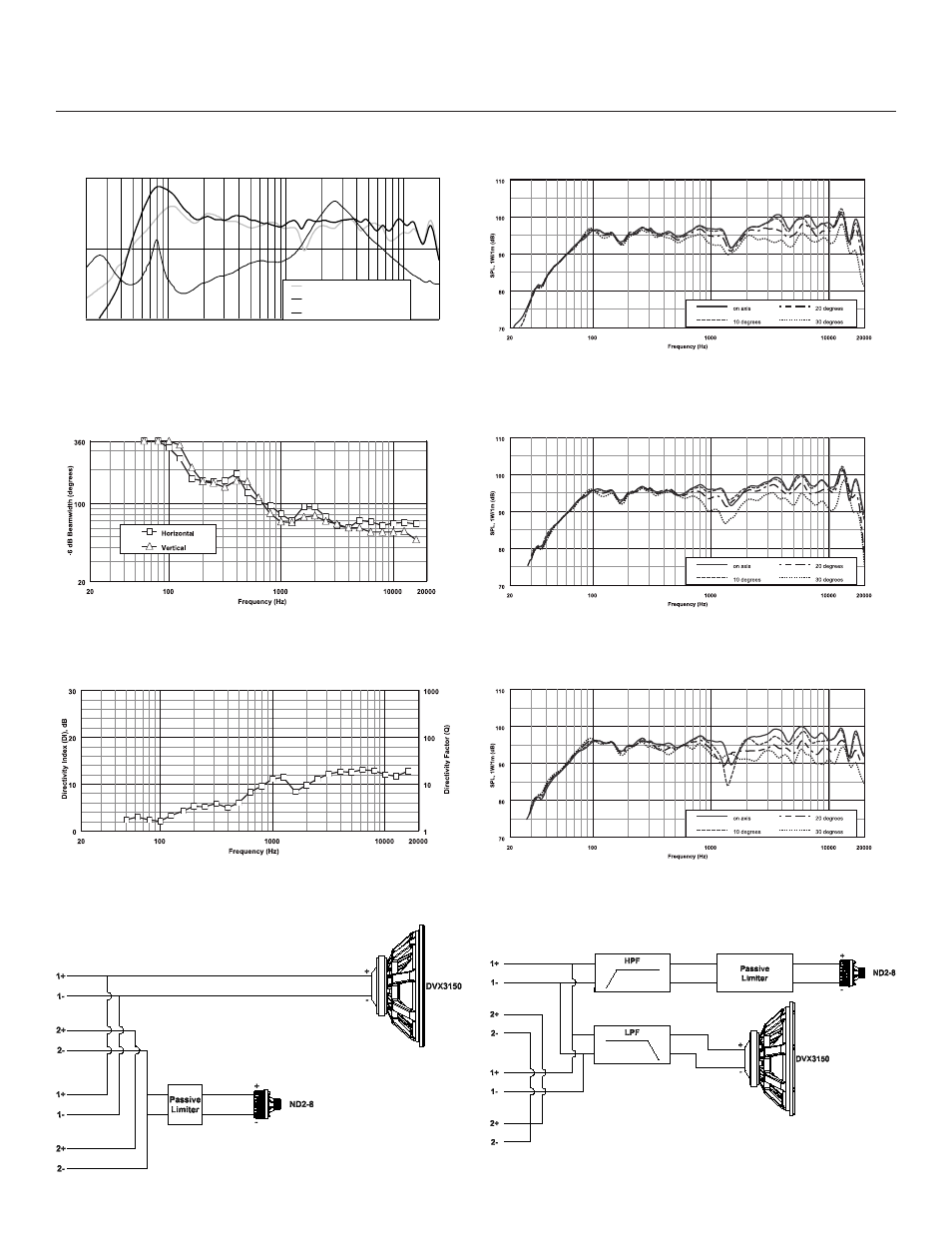

Zx5-60 Full Range Loudspeaker
Frequency Response & Impedance:
Beamwidth:
Directivity:
Block Diagram (Biamp):
Horizontal Off Axis Frequency Response:
Vertical Off Axis Frequency Response
(Up):
Vertical Off Axis Frequency Response
(Down):
Block Diagram (Passive):
20 50 100 1000 10000 20000
3.16
10
100
316
70
80
90
100
110
Frequency (Hz)
S
e ns
it iv
it y (
d B
)
Im
pe
da
nc
e (
O
hm
s )
Passive Mode, Half Space
Biamp Mode, Half Space
Impedance
