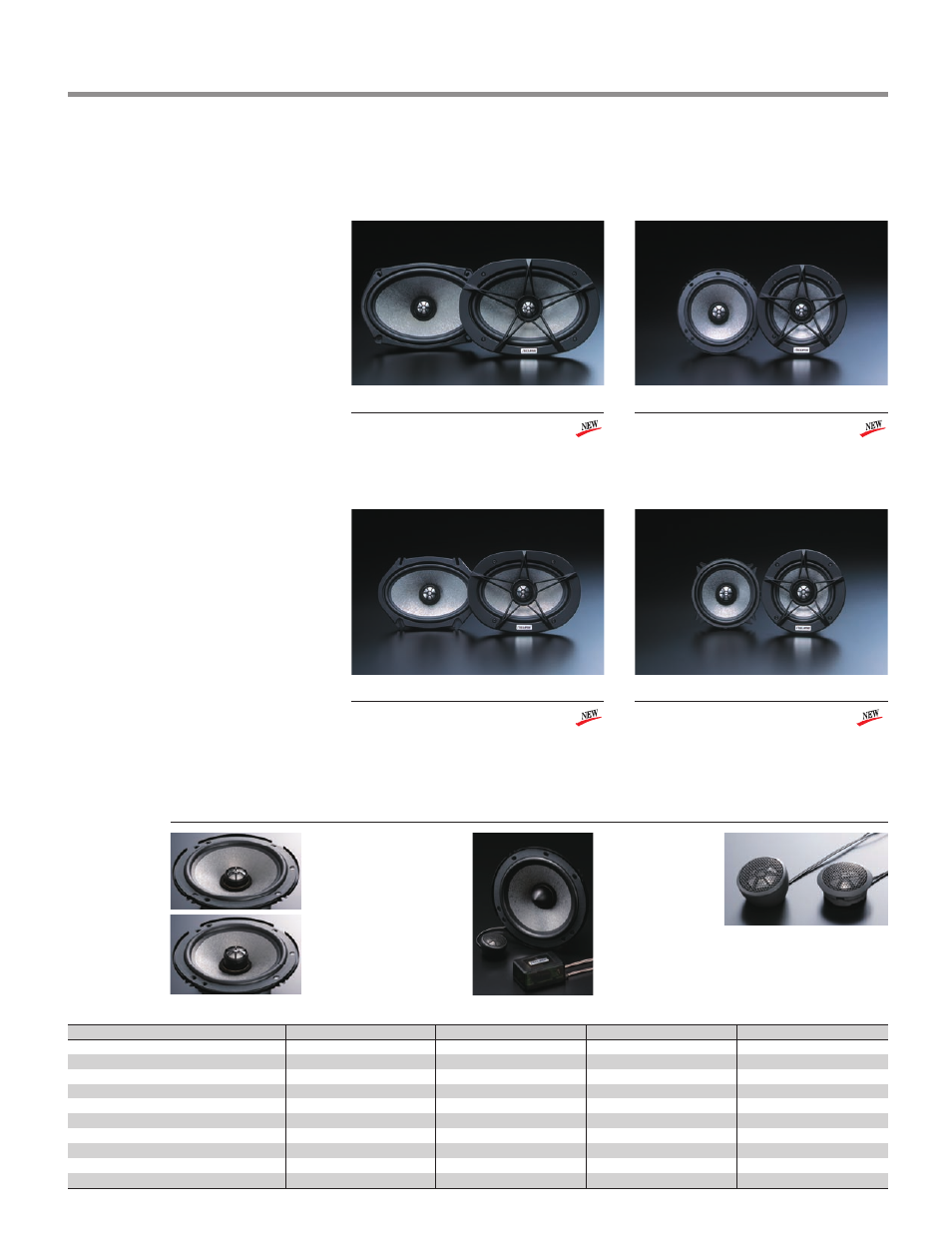

Point Source Series Speakers

The SP Series II Point Source is an innovative
2-way component system that offers
mounting options for the high frequency
driver positioning flexibility in order to better
meet installation requirements and achieve
optimal sound. Woofers feature a new Kevlar
composite for increased power handling and
the external crossovers employ premium
components.

Sound improvements
The improved power handling capability of ECLIPSE
Point Source Series Speakers and the detachable
tweeter option allows them to be more versatile to
better suit a car's interior in achieving the maximum
performance. ECLIPSE subwoofers can also be used
for greater low frequency impact, blending easily with
the sonic signature of these speakers.

An ideal solution
Specifically designed to function as self-contained
speakers that represent the easiest way to drastically
upgrade an in-car system, ECLIPSE Point Source
Speakers are available in configurations to suit
virtually any car. With a distinctive high-performance
appearance, the many advantages these speakers have
raise them above conventional replacement speakers.

SP6900

6

× 9˝ 2-Way Point Source

SP6500

6-1/2˝ 2-Way Point Source

• RMS power handling: 90W
• Max. power handling: 270W

• RMS power handling: 60W
• Max. power handling: 180W

SP5700

5

Ч 7˝ / 6 Ч 8˝ 2-Way Point Source

SP5000

5-1/4˝ 2-Way Point Source

• RMS power handling: 55W
• Max. power handling: 165W

• RMS power handling:

50W

• Max. power handling: 150W

2-Way SP-Series

SP6900

SP6500

SP5700

SP5000

6

Ч 9˝

6-1/2˝

5

Ч 7˝/ 6 Ч 8˝

5-1/4˝

270W

180W

165W

150W

90W 60W 55W

50W

88dB

87dB

88dB

84.5dB

45 — 40,000Hz

85 — 40,000Hz

90 — 40,000Hz

105 — 40,000Hz

45Hz

85Hz

90Hz

105Hz

24oz

12oz

12oz

10oz

3.5˝

2-1/4˝

2-3/8˝

2-1/4˝

3.6

3.6

3.6

3.6

Woofer Size
Tweeter Size
Max. Power Handling
RMS Power handling
Sound Pressure Level
Frequency Response
Fs
Magnet Size
Mounting Depth
Voice Coil DCR (

Ω)

33

• 1˝ titanium hard dome tweeter
• Low mass, low distortion Kevlar-PMI cone
•Neodymium tweeter magnet
• Detachable tweeter
• Grilles and Adaptors included
• Woofer, bullet diffuser for tweeter height extension
• Tweeter relocation kit (flush/surface mount kit)

Configuration Style

Point Source

Point Source w/ Extended Tweeter

Point Source
Detached Tweeter

Direct speaker replacement
for factory-installed speakers.

The speaker can be
detached into woofer and
tweeter components so
that the woofers can be
installed in doors while
tweeters can be installed
closer to windows and
other positions such as
the dashboard.

Tweeters can be installed flush or
mounted on dashboards and other
locations as separate housings are
provided.

For installations where the speaker
is mounted some distance behind
the grille, the supplied tweeter
stand-off spacer can be added to
extend the tweeter for better high
frequency dispersion.
