Elkay Hi-Arc LKD2447BH - Manual (Page 2)

A51861
"O" RING
A52835
COLD BUTTON
A52834
HOT BUTTON
A52657 (2)
BEARING
A52656
SPOUT NUT
SPOUT ASSEMBLY A52722
INCLUDES:
A52656, A52657 (2), A51861
A51357
A51357
AERATOR
A52062
NUT
A51846
ESCUTCHEON
A70002
CARTRIDGE
A72279
HANDLE
A71951
SCREW
A52060
MOUNTING
HARDWARE
{
LKD2447BH
A55179 (Red)
A55180 (Blue)
A55165 (Chrome)
SCREW
A75163 (Hot)
A75164 (Cold)
BLADE HANDLE
A70001
CARTRIDGE

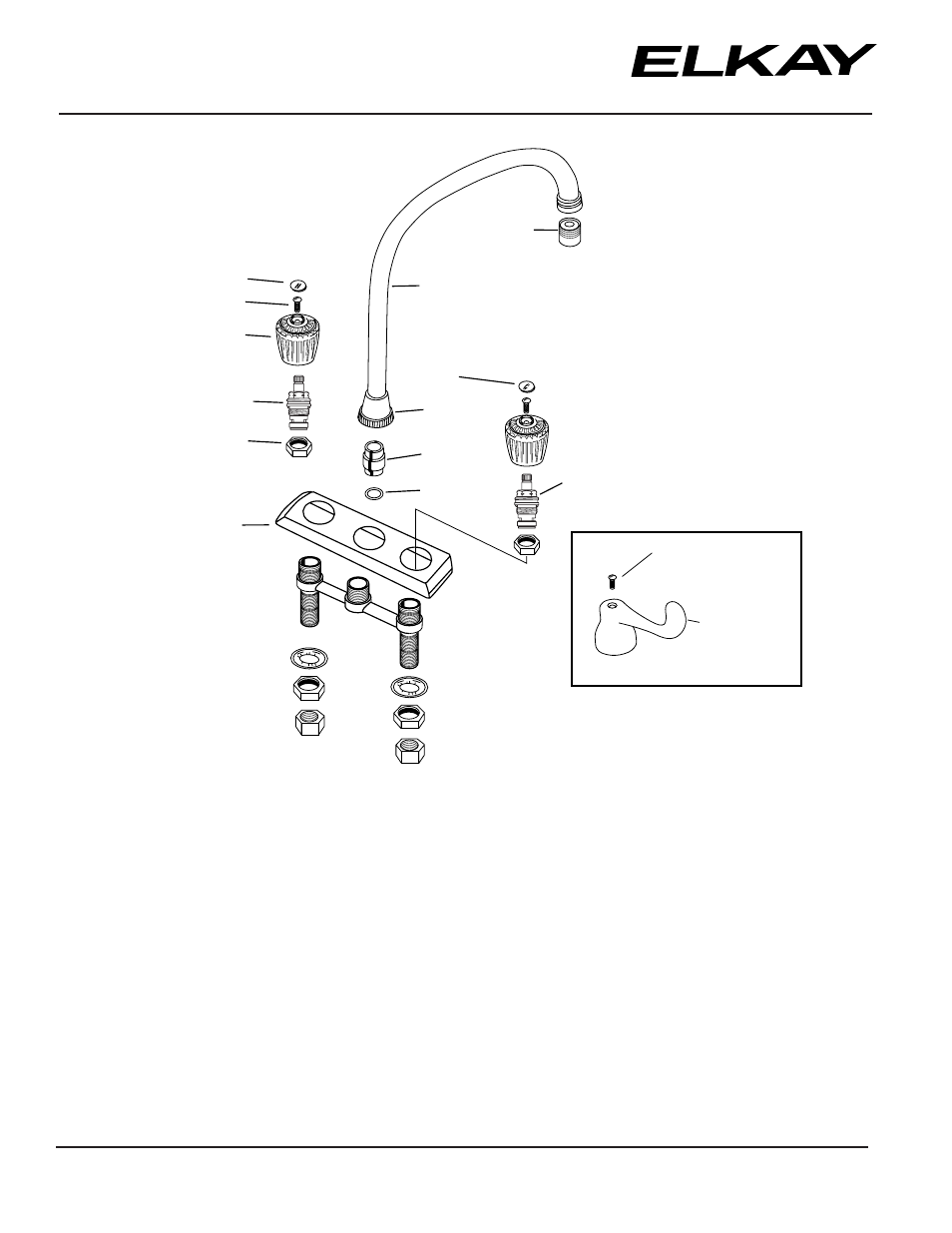

Hi-Arc ® Dual Handle Bar Faucet
Models LKDA2447 and LKD2447BH
®
PA RT S L I S T
Elkay 2222 Camden Court
Oak Brook, IL 60523
www.elkayusa.com
Printed in U.S.A.
©2005 Elkay
5-136 (10/05)
Elkay recommends installation by a licensed plumber.
