Dimensional and Electrical Data
5
2.0 D
IMENSIONAL AND
E
LECTRICAL
D
ATA

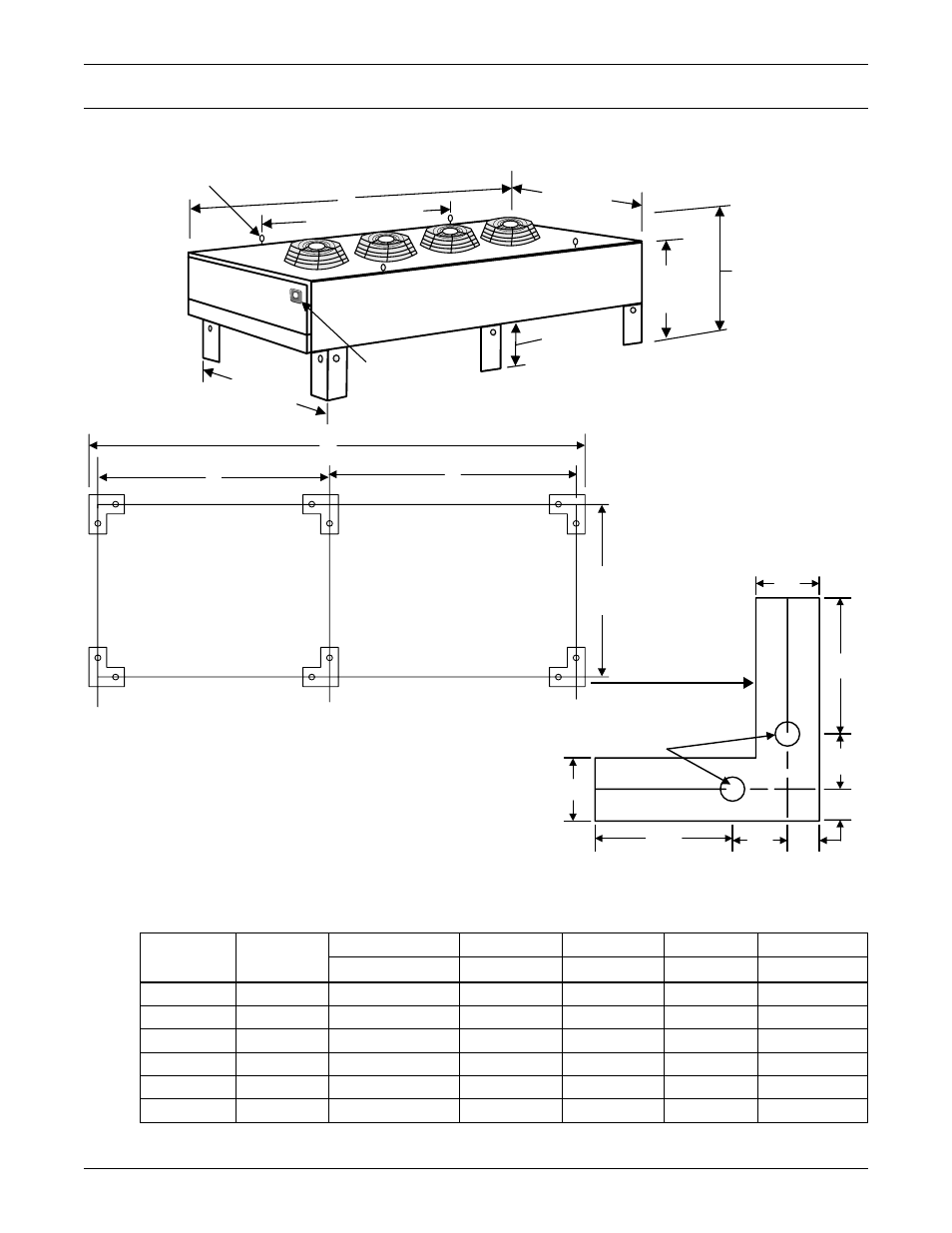

Figure 3 Cabinet and anchor dimensional data—VFD control condensers, 50 and 60Hz
Table 5 Physical data—VFD control condensers, 50 and 60Hz
Model #
Number
of Fans
A B C D Net Weight
in (mm) in (mm) in (mm) in (mm) lb (kg)
TCDV165 2 91-1/2 (2324) 84 (2134) 82 (2083) -- 425 (193)
TCDV205 2 91-1/2 (2324) 84 (2134) 82 (2083) -- 495 (225)
TCDV251 3 131-1/2 (3340) 124 (3150) 122 (3099) -- 500 (227)
TCDV308 3 131-1/2 (3340) 124 (3150) 122 (3099) -- 670 (305)
TCDV415 4 171-1/2 (4356) 164 (4166) 82 (2083) 80 (2032) 815 (370)
TCDV510 4 171-1/2 (4356) 164 (4166) 82 (2083) 80 (2032) 1188 (540)
All condenser fan motors are 3/4 hp
1-7/8”
(47.6mm)
DPN001049
Rev. 0
1-3/4”
(44.5mm)
4-1/4”
(108mm)
1-3/4”
(44.5mm)
4-1/4”
(108mm)
1”
(25.4mm)
1-7/8”
(47.6mm)
Typical Footprint
Typical Diameter
9/16" (14.3mm)
Unit Anchor Plan
4 legs furnished for 2- and 3-fan
models
6 legs furnished for 4-fan models
B
D
C
37-11/16"
(957mm)
A
70" (1778mm)
18" (457mm)
Disconnect
Switch
Eyebolts for lifting condenser
Provided on four-fan models only
37-7/8"
(962mm)
Height to top
of fan guard:
43-1/8" (1095mm)
Clearance of 36" (914.4mm) on all
sides is recommended for proper
operation and component access
Cabinet Dimensions
43-9/16"
(1107mm)
43-3/16"
(1097mm)
