30 Setting Up the TV
Camcorder, Digital Camera, or Other Portable Video Connection
It’s best to connect a portable video device to the S-Video or Video connector on the front
of the TV; however, you can use the connectors on the back. These instructions use a
camcorder as an example.
1 Connect one end of an S-Video cable to the S-Video connector on the front of the TV
beneath the connector cover.
2 Connect the other end of the S-Video cable to the S-Video connector on your
camcorder.
3 Connect one end of a standard, red/white audio cable to the Video Inputs R and L
Audio connectors on the front of the TV.
4 Connect the other end of the audio cable to the R and L A/V Output connectors on
your camcorder.
Note
If your device doesn’t have
an S-Video connector, you
can connect a video
cable (yellow) to the Video
connector instead of the
S-Video cable using these
instructions.
If you’re connecting a
device with mono audio,
connect the left (white)
cable to the L A/V Output
connector on your device
and the L Audio connector
on the front of the TV.
If you connect your device
to a video connector on
the TV’s front panel, select
Video 4 as the input source
using the TV/Video button.

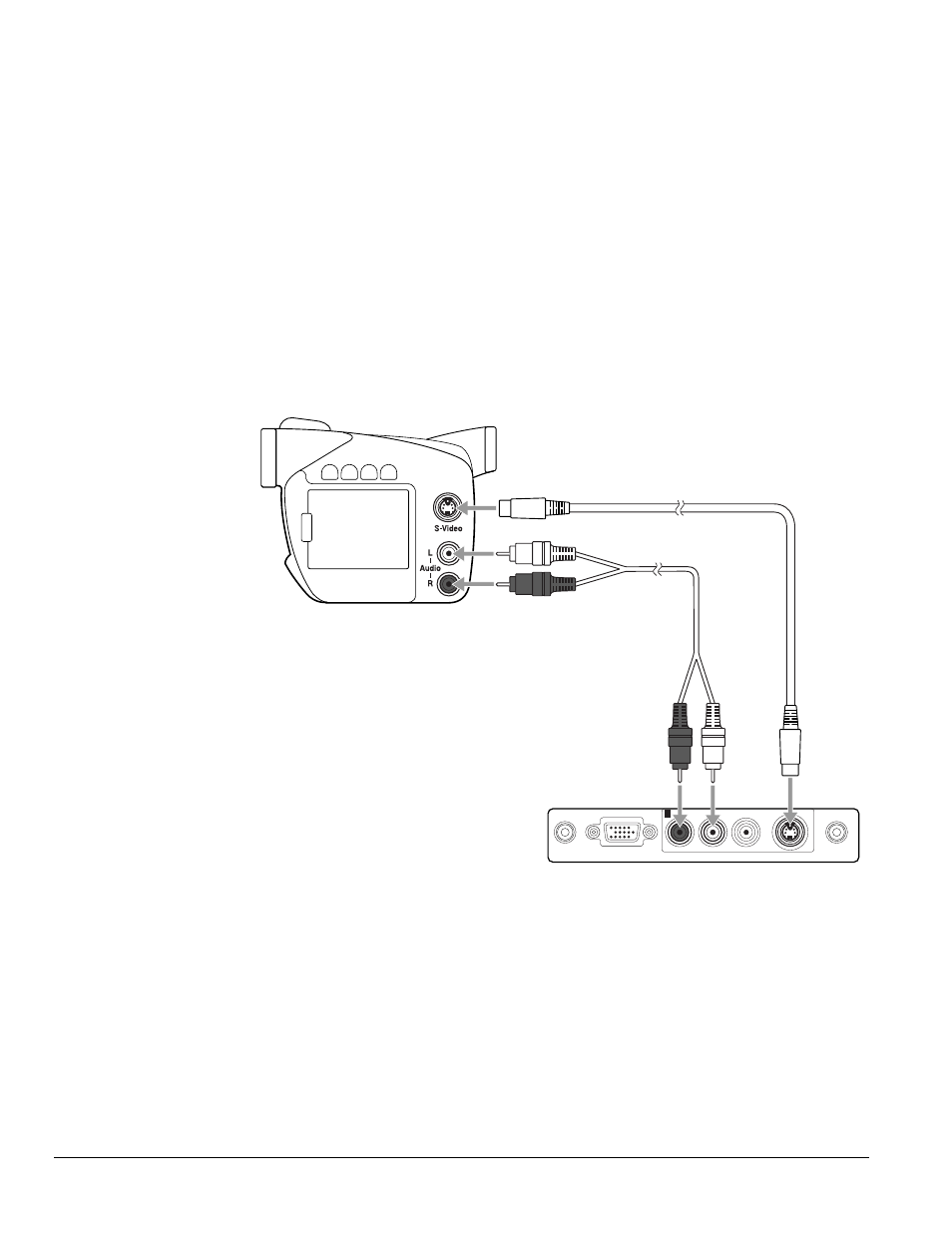

4 Video Inputs
S-Video R–Audio–L
TV’s front
connector
panel
Audio cable
S-Video cable
