Setting Up the TV 23
VCR Connection

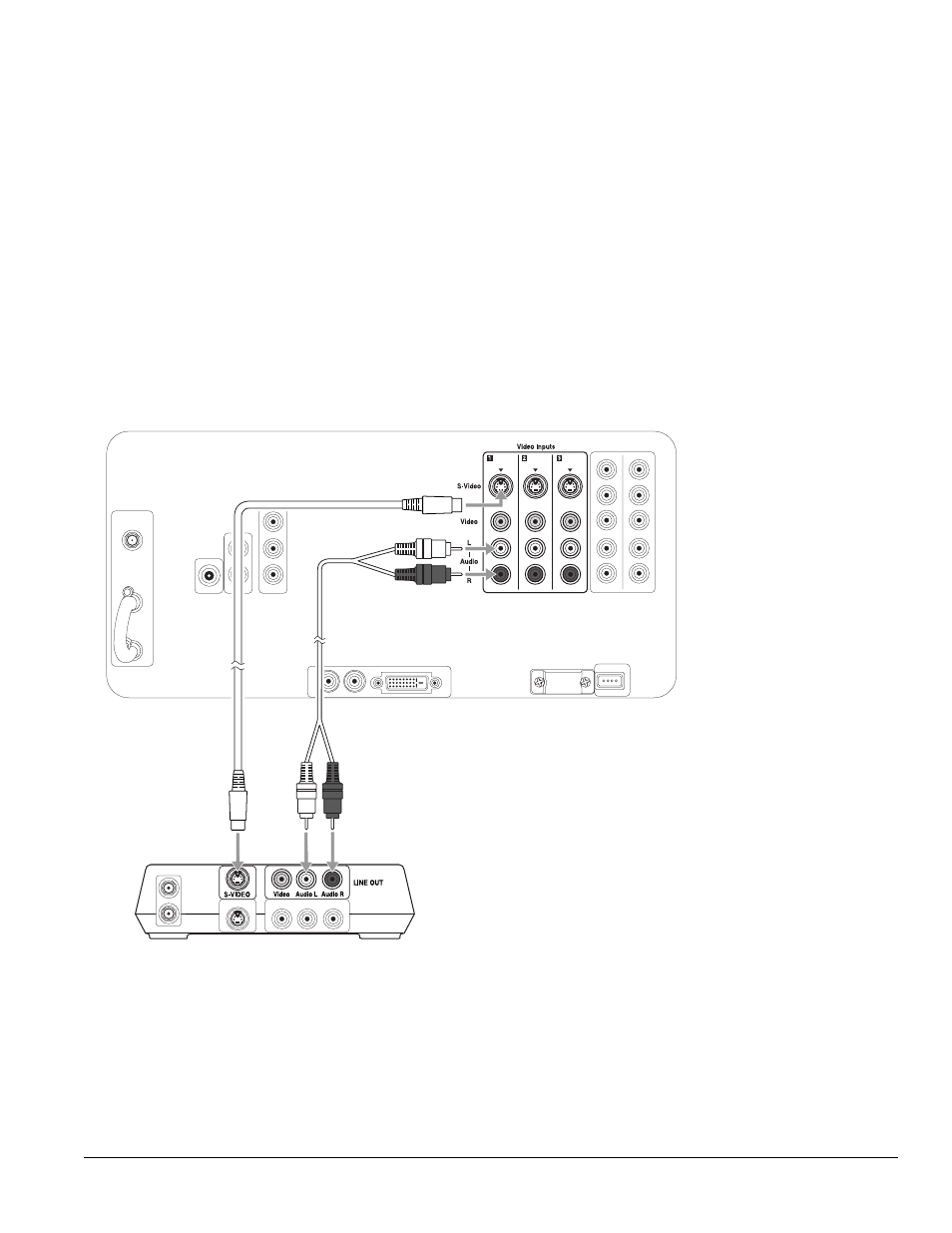

Follow these steps to connect a VCR by itself.
If you’re connecting a cable, cable box, or satellite receiver along with the VCR, or if you’re
connecting two VCRs for tape editing, see the instructions in the sections following this one
instead.
1 Connect one end of an S-Video cable to one of the S-Video connectors on the back of
the TV or to the one on the front of the TV beneath the connector cover.
2 Connect the other end of the S-Video cable to the S-Video connector on your VCR.
3 Connect one end of a standard, red/white audio cable to the corresponding Video
Inputs R and L Audio connectors on the back or front of the TV.
4 Connect the other end of the audio cable to the R and L Audio Line Out connectors on
your VCR.
Note
If your VCR doesn’t have
an S-Video connector, you
can connect a video
cable (yellow) to the Video
connectors instead of the
S-Video cable using these
instructions.
It’s best to connect your
VCR to the S-Video
connectors on the back of
the TV to free up the
S-Video connector on the
front to connect a
camcorder.
Audio cable S-Video cable
VCR
