Setting Up the TV
19
Digital TV (HDTV) Receiver with Component Video Connection
1
Turn off and unplug your TV and your digital TV receiver.
2
Connect one end of the component video cable to any available set of Y (green), PB
(blue), and PR (red) connectors on the back of the TV.
3
Connect the other end of the component video cable to the Y, PB, and PR connectors on
your digital TV receiver.
4
Connect one end of a standard, red/white audio cable to the corresponding
Component Input R and L Audio connectors on the back of the TV.
5
Connect the other end of the audio cable to the R and L Audio Out connectors on your
digital TV receiver.
6
Plug your TV and digital TV receiver back into their power outlets.
Note
Before connecting a digital
TV receiver to the TV, be
sure to read any
instructions that came with
the receiver.

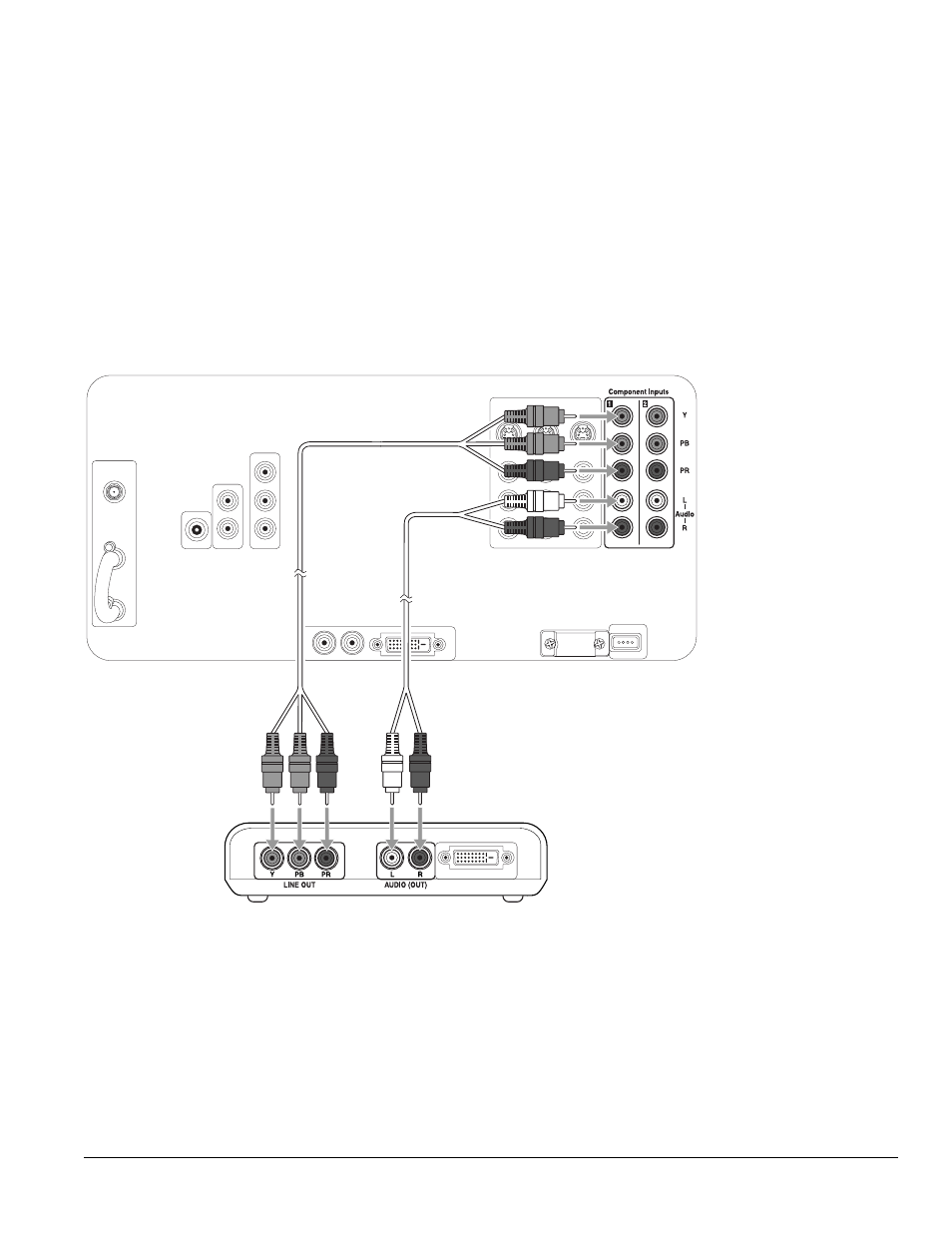

Digital receiver
Audio cable
Component video
cable
