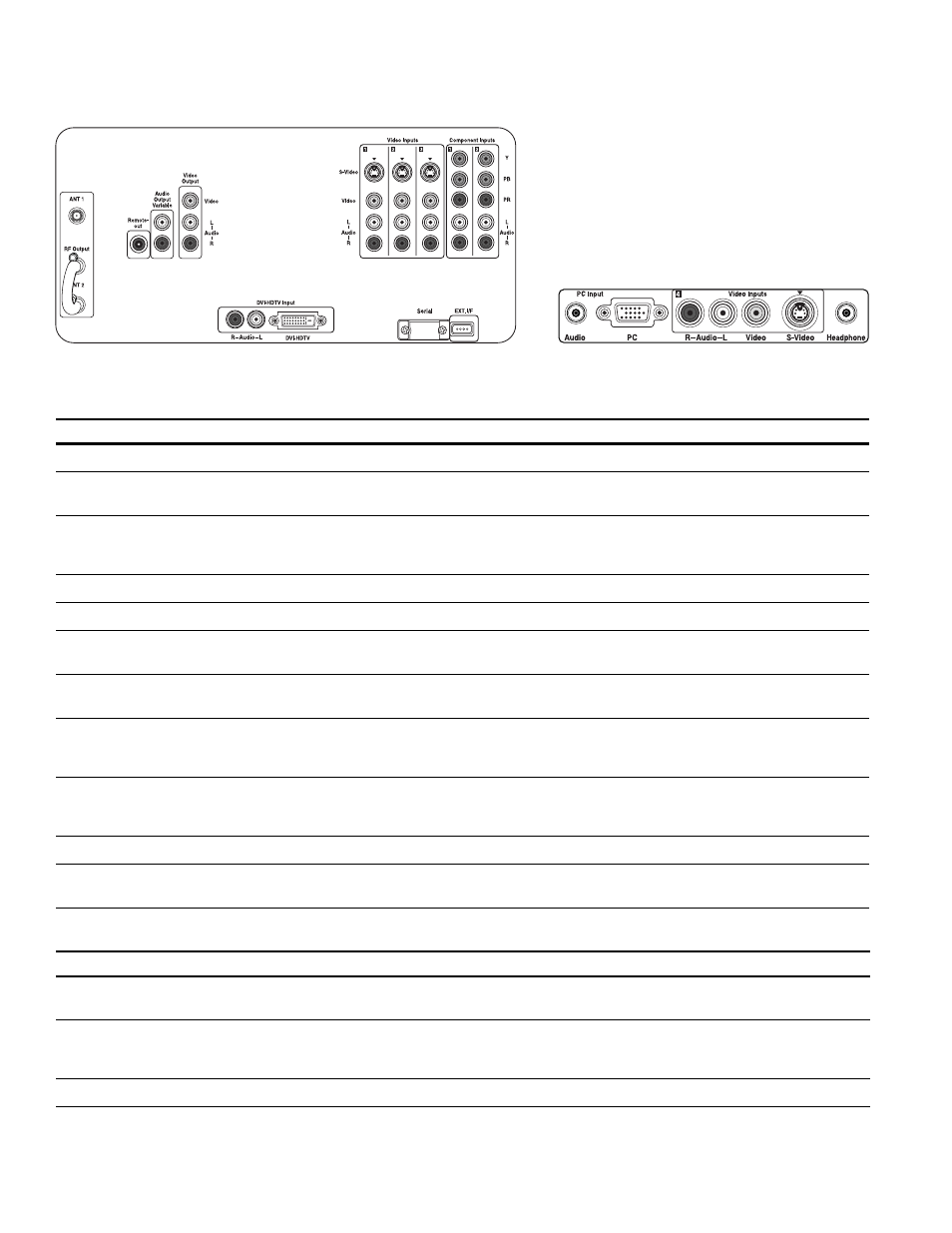

Connector Panel Maps
Back connector panel
Connector
Function
ANT 1
For outside antenna, cable service line, or other video inputs.
RF Output
Video output for various connections. Leave jumper cable connected to RF Output and ANT 2
connectors to provide POP and Channel Zapping features in certain connection schemes.
ANT 2
Alternate connector for outside antenna, cable service line, or other video inputs. Leave jumper cable
connected to RF Output and ANT 2 connectors to provide POP and Channel Zapping features in certain
connection schemes.
Remote-out
For optional remote IR repeater.
Audio Output Variable
For output to an audio receiver.
Video Output
(Video, Audio L/R)
For an external video/audio recorder (standard video only).
DVI-HDTV Input
(DVI-HDTV, Audio R/L)
For a digital TV (HDTV) receiver.
Video Inputs
(S-Video 1, 2, 3; Video 1, 2,
3; and Audio L/R 1, 2, 3)
For DVD, VCR, Satellite, and other video and audio input devices that use S-Video or standard video.
Component Inputs
(Y 1, 2; PB 1, 2; PR 1, 2; and
Audio L/R 1, 2)
For DVD, VCR, Satellite, and other video and audio input devices that use component video.
Serial
For use only by your EPSON servicer.
EXT. I/F
(external interface; USB)
For an external CD-R/RW drive only.
Front connector panel
Connector
Function
PC Inputs
(Audio and PC)
For PC or game console audio and video.
Video Inputs
(Audio R/L 4, Video 4,
S-Video 4)
For DVD, VCR, satellite, and other video and audio input devices that use S-Video or standard video. Best
for use of a camcorder, digital camera, or other portable video equipment.
Headphone
For headphone connection only.
Back connector panel
Front connector panel
