2-4 Installation Rosemount Analytical Inc. A Division of Emerson Process Management

Model 755A

755A

Analyzer

Recorder

Controller

Remote

Indicator

+
-

+
-

+
-

+
-

mA

d. Isolated Current Output (Optional)

1. Verify that the Current Output Board

appropriate to desired output is
properly in place. See Figure 2-2,
page 2-3. If originally ordered with
analyzer, the board is factory
installed.

2. On TB2, Figure 2-1 (page 2-2),

connect leads of shielded recorder
cable to "MA+" and "-" terminals.

3. Connect free end of output cable to

input terminals of recorder or other
current actuated device, making sure
that polarity is correct. If two or more
current-actuated devices are to be
used, they must be connected in
series as shown in Figure 2-4 below

Total resistance of all output devices and
associated interconnection cable must not
exceed 850 ohms.

Current and voltage outputs may be
utilized simultaneously, if desired.

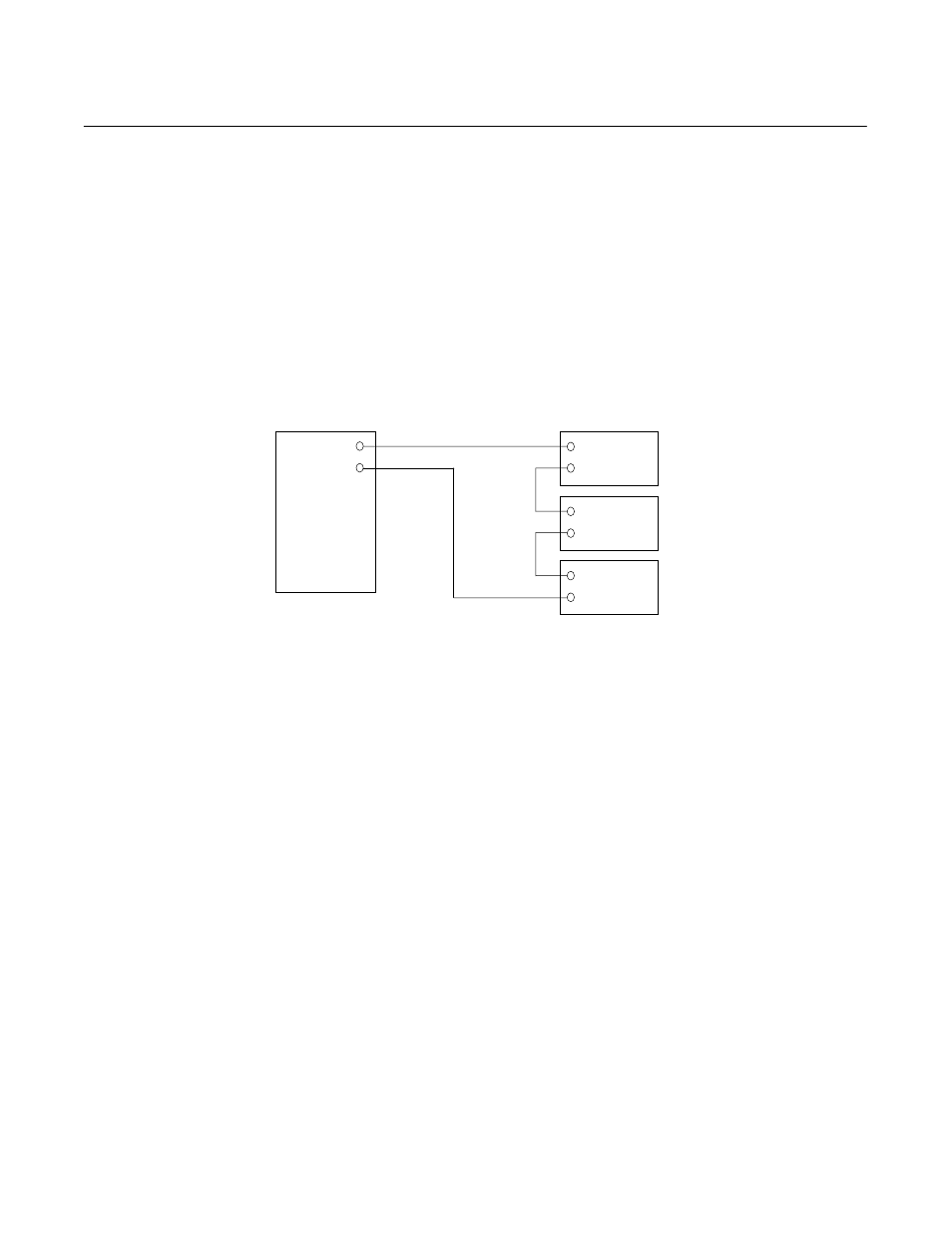

Figure 2-4. Model 755A Connected to Drive Several Current-Activated Output Devices

e. Output Connections for Dual Alarm

Option

If so ordered, the analyzer is factory-
equipped with alarm output. Alternatively,
the alarm feature is obtainable by
subsequent installation of the 618083
Alarm Relay Kit.

f. Alarm

Output

Connections

The alarm output provides two sets of
relay contacts for actuation of alarm
and/or process control functions. Leads
from the (customer-supplied) external
alarm system connect to terminals on the
638254 Alarm Relay Assembly (see
Figure 2-1, page 2-2).

Note the following recommendations:

1. A line fuse should be installed in the

line between the (customer-supplied)

power supply and the alarm relay
terminals on the Alarm Relay
Assembly.

2. If the alarm contacts are connected to

any device that produces radio
frequency interference (RFI), it should
be arc-suppressed. Rosemount
Analytical Arc Suppression (PN
858728) is recommended.

3. If possible, the analyzer should

operate on a different AC power
source to avoid RFI.

4. Do not allow internal cable service

loop to touch the detector assembly
or associated inlet and outlet tubing.
This precaution ensures against
possible transmission of mechanical
vibration through the cable to the
detector, which can cause loss of
accuracy.
