Emerson SP-6TVN - Manual (Page 2)

AC Power Protection
Nominal Operating Voltage 120 VAC, Single Phase
Operating Voltage Range 120 VAC +/- 10%
Operating Frequency Range 47 – 63 Hz
Rated Output (Amps) 15 Amperes
ANSI/IEEE C62.41 Category Category A & B
Connection Type (6) 5- 15R Receptacles and 5- 15P Plug
Phase Configuration 2 Wire + Gnd
Size 7.5 x 4.75 x 1.75 (Inches)
Enclosure High Impact Plastic
Weight 2.0 lbs. (0.9 kgs.)
Modes Of Protection L – N, L – G, N – G
Indication of Suppression Status Status Indicator
Response Time < .5 ns Normal mode
Certifications UL 1449 Listed
Warranty 5 Year
Maximum Continuous Operating Voltage (MCOV)
Line to Neutral 130 VAC
Peak Surge Current (8 x 20ms)
Line to Neutral 13,000 Amps
Line to Ground 13,000 Amps
Neutral to Ground 13,000 Amps
Total 39,000 Amps
ANSI/IEEE C62.41 Cat A Ringwave (6 kV, 200A, 100 kHz)
Normal Mode 265 V
Common Mode 290 V
ANSI/IEEE C62.41 Cat B Ringwave (6 kV, 500A, 100 kHz)
Normal Mode 275 V
Common Mode 290 V
Frequency Response
Normal Mode 60 dB Maximum, forward/reverse, 100 kHz to 50 MHz
Common Mode 40 dB Maximum, forward/reverse, 5 MHz to 50 MHz
Low Voltage Protection Video 1 & 2 Phone Network
Connection Type Type “F” Type RJ11 Type RJ45
Cables Provided 6’ (2x) Type “F” ends 6’ RJ11 Male Ends 6’ RJ45 Male Ends
Peak Surge Current 5kA (8x20us) 2kA (10x1000us) 3kA (8x20us)
Capacitance <12pf <50pf <70pf
Protection Level L-G T-R, T-G, R-G L-G (8 Lines)
Clamping Voltage (DC) 145V 270-350V 30V
Attenuation 1db @ 2Ghz N/A N/A
Emerson Network Power.com
Emerson Network Power.
The global leader in enabling
Business-Critical Continuity ™ .
AC Power
Connectivity
DC Power
Embedded Computing
Embedded Power
Monitoring
Outside Plant
Power Switching & Controls
Precision Cooling
Racks & Integrated Cabinets
Services
Surge Protection
Headquarters
Surge Protection
328 Water Street
Binghamton, NY 13901
T: 607-724-2484
T: 800-288-6169
F: 607-722-8713
1805 N.E. 19th Avenue
Ocala, FL 34470
T: 352-732-3029
T: 800-648-4076
F: 352-867-1237
10020 E. Knox Avenue
Suite 50
Spokane Valley, WA 99206
T: 509-777-2300
T: 800-953-3701
F: 509-927-0435
Technical Support
800 288 6169 Toll-Free
607 721 8865 Phone
607 722 8713 Fax
SP-6TVN
Specifications

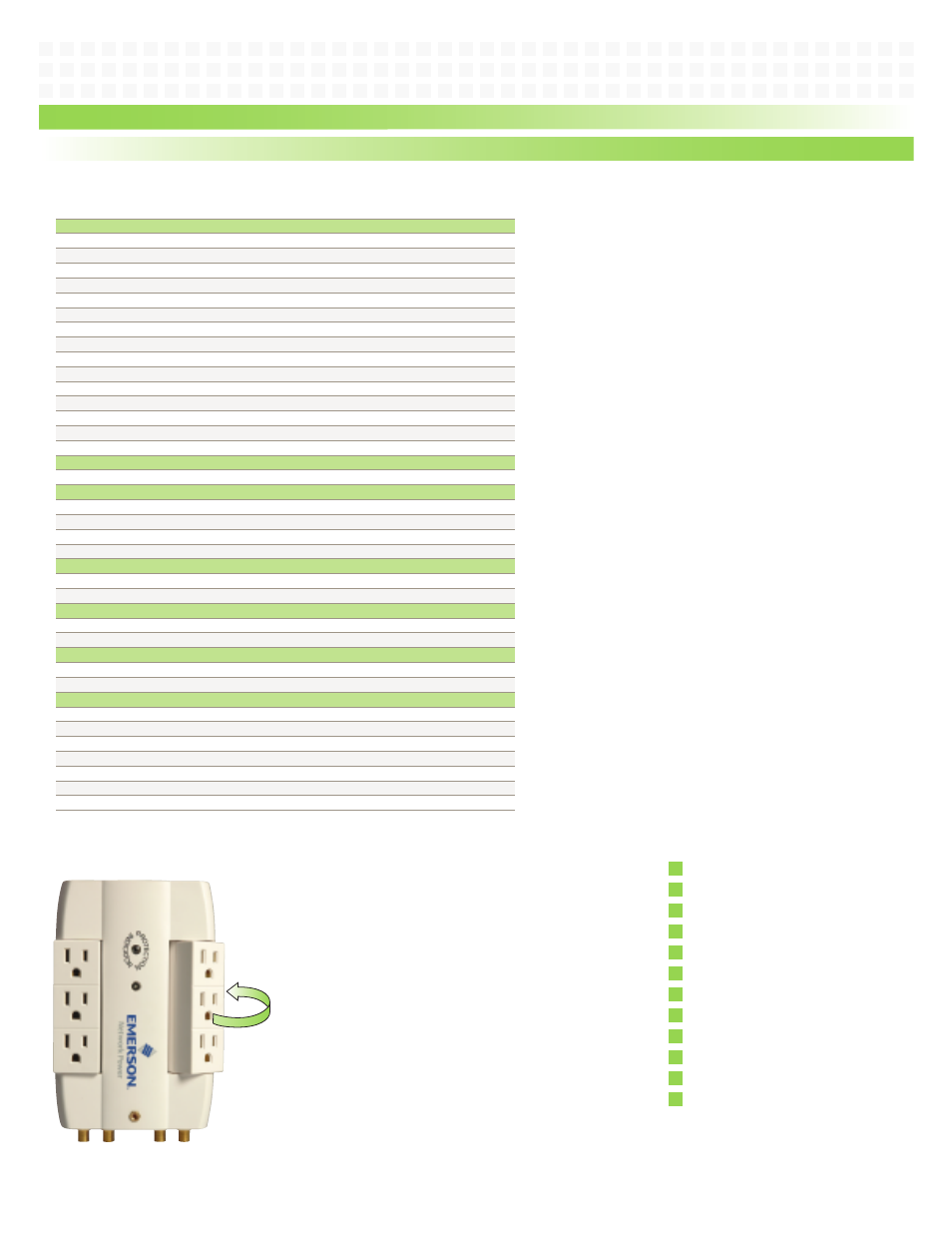

The SP-6TVN is a high-quality surge
suppression/filtering device that plugs
into a standard duplex receptacle. This
uniquely designed product contains
repositionable outlets for easier
installation behind desks and other
furniture. The SP-6TVN protects your
sensitive home or office equipment,
including TVs, home theaters, satellite
dishes, computers, printers, copiers,
and fax machines, from damaging power
disturbances traveling through your
wiring and into your electrical outlets.
