ET288/ET388 7

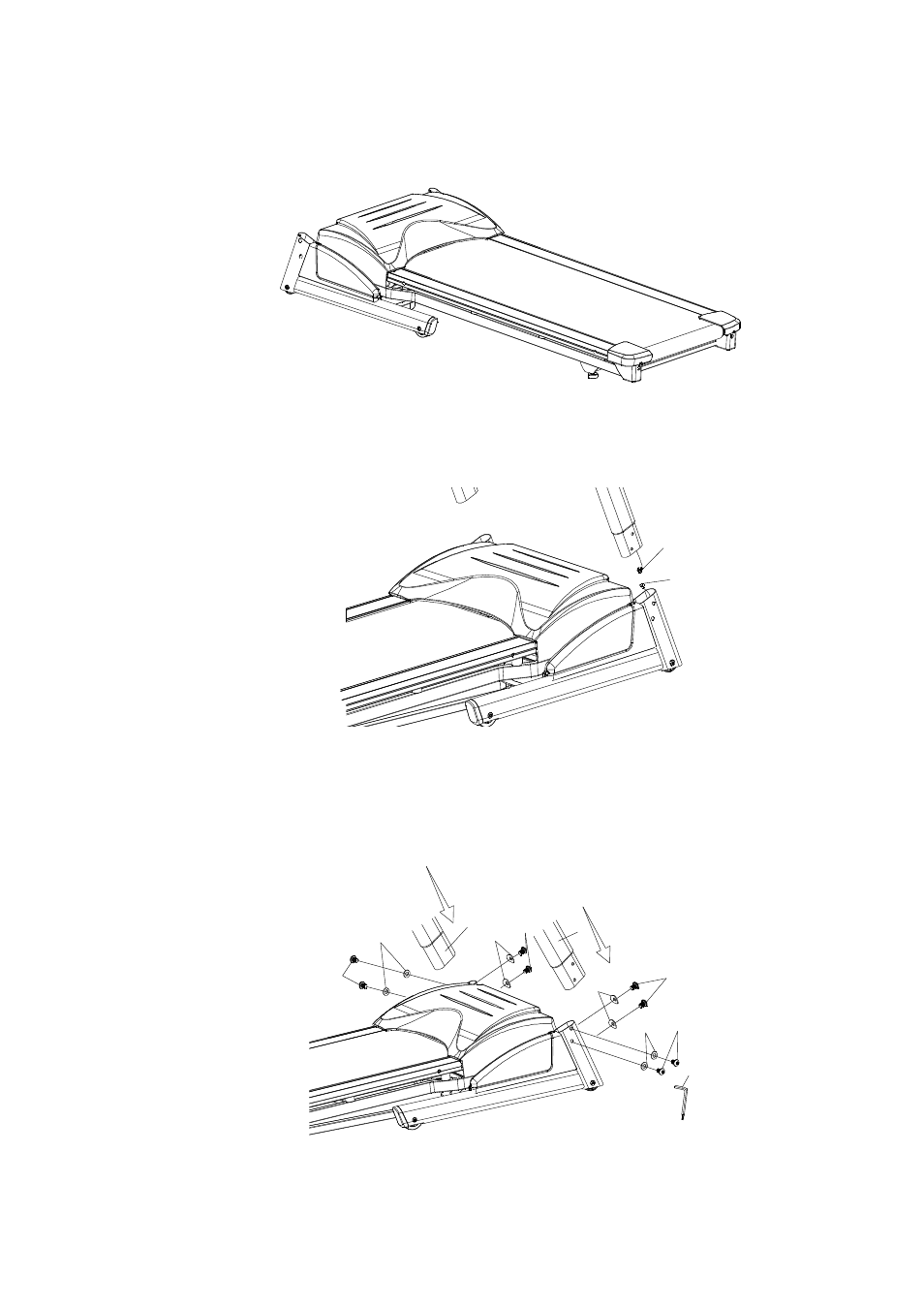

n STEP 1
Remove all the parts from the carton and lay the main base frame on a flat level surface.
n
STEP 2
Connect the cable from the base frame (53) to the cable in the right side upright tube (54) and
slide the tube into the base frame tube. Be careful not to pinch the wire harness. Slide the
left upright tube into the base frame tube.
53
54
n STEP 3
Install, and just hand tighten for now, all eight 5/16 x 1/2 socket head bolts (104) and the four
5/16 flat washers (105) for the side bolts and four 5/16 curved washers (106) for the front
bolts. Tighten all eight bolts as tight as possible.
104
107
4
5
105
106
106
104
104 104
105
