Wall-Mounted Dewpoint Sensor

Product Information Sheet

210-2002

10.

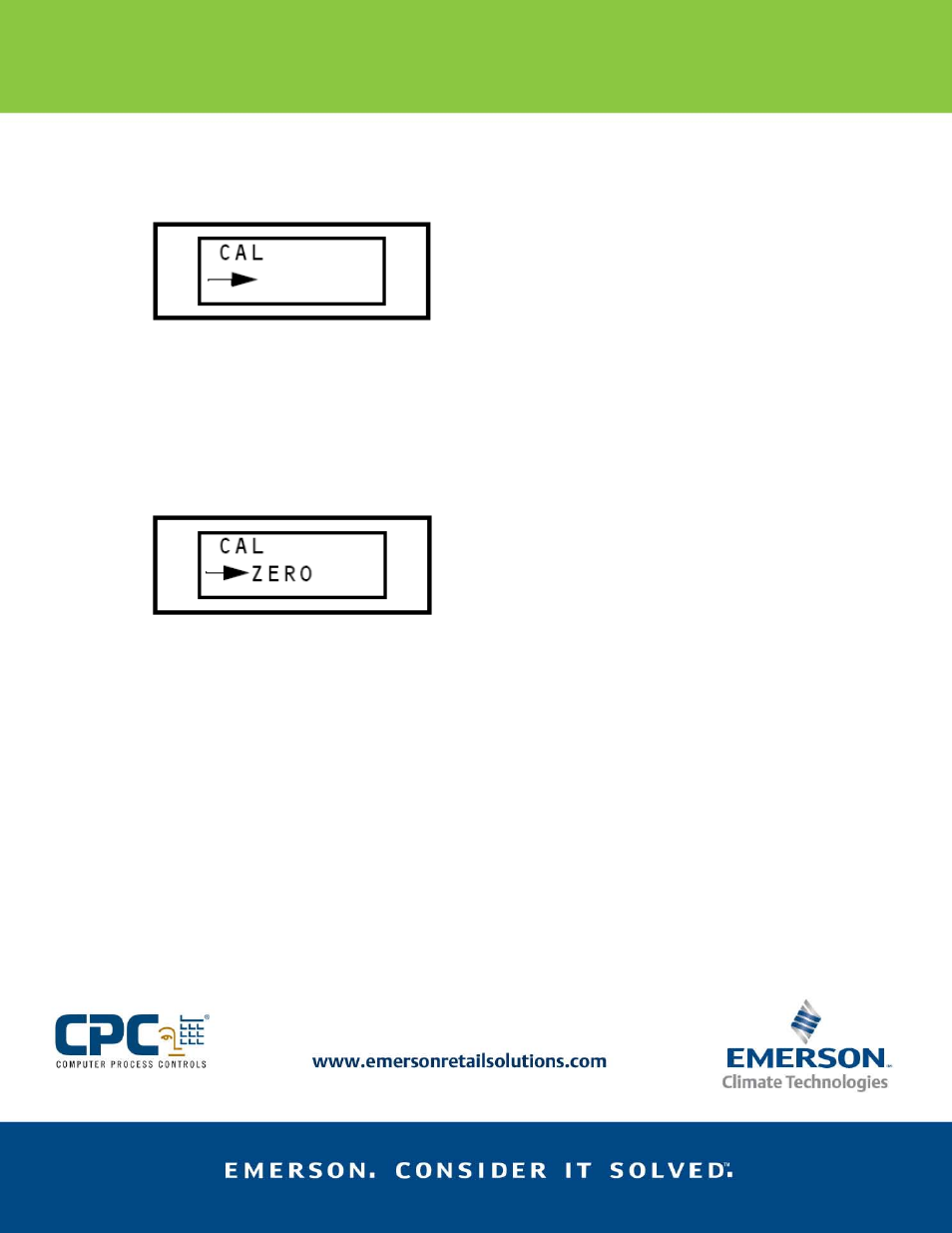

Press the Clear and Enter buttons together

and hold for five seconds. The word CAL will

appear in the topline of the LCD display:


11.

Use the arrow buttons to toggle to the Zero

Calibration mode.

NOTE: Prior to pressing the Enter button, the zero

gas should be flowing to the dewpoint sensor

for atleast five minutes.

12.

When ZERO is displayed, press the Enter

button to initiate the calibration process.


13.

Once the Enter button is pressed, the

calibration process will take five to seven

minutes during which time the green LED

below the display will flash. Once calibration

is completed, the sensor will revert to its

normal display mode.


Calibration Layout

Refer to the calibration topic of the manufacturer’s
manual for the sensor’s zero calibration layout.

Contact your CPC sales representative for calibration

kit (P/N 210-2005) purchasing information.
