ENG-5

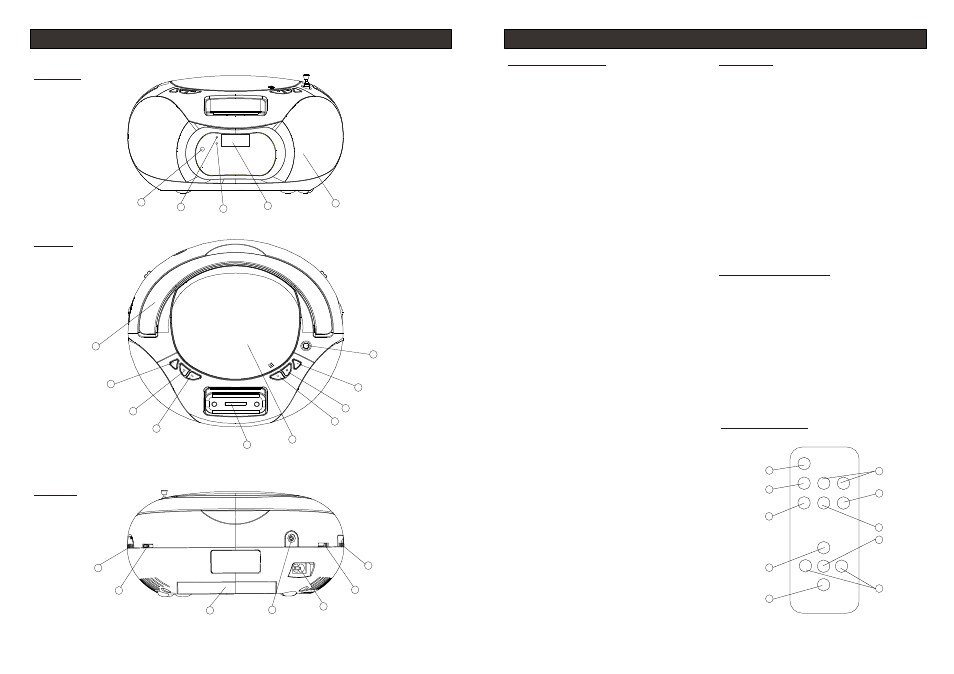

Functions and Locations Functions and Locations
ENG-6
Front panel
REAR PANEL
16. VOLUME CONTROL
- sound level control.
17. FUNCTION SELECTOR
- source selection iPod, CD, RADIO and power off.
18. AC POWER SUPPLY
- power supply cord connection.
19. STEREO HEADPHONE JACK
- connect for the 3.5mm stereo headphone.
20. BATTERY COMPARTMENT
- opening of the battery compartment.
21. BAND SELECTOR (AM•FM•FM ST.)
- frequency band selection: AM, FM or FM ST.
22. TUNING KNOB
- AM/FM/FM ST. stations selector.
FRONT AND TOP PANEL
DISPLAY
- display of CD functions.
IPOD INDICATOR
- display of iPod indications.
FM STEREO INDICATOR
- display of FM stereo indications.
5. REMOTE SENSOR
6. TELESCOPIC ANTENNA
- improvement of FM reception.
7. PROGRAM (FOR CD ONLY)
CD: programming and control of programmed track
number.
8. PLAY/PAUSE
CD: start or pauses CD playback.
9. STOP
CD: stops CD playback or delete a program.
10. CD DOOR
- CD compartment door open/close mark
(OPEN/CLOSE).
11. iPod DOCKING JACK
- connect your iPod.
12. NEXT
CD: next tracks.
13. BACK
CD: return to the previous track.
14. MODE (FOR CD ONLY)
Repeat 1/Repeat All/Random playback.
15. HANDLE
1. SPEAKER
2.
3.
4.
Top panel
Rear panel
REMOTE CONTROL PANEL
1. iPod SCROLL UP/DN (operate for iPod only)
2. REPEAT
3. RANDOM
4. PLAY/PAUSE
5. SKIP +/-
6. MUTE
7. STOP
8. PROGRAM
(operate for CD only)
9. SELECT (operate for iPod only)
10. MENU (operate for iPod only)
VOLUME VOLUME
~~ AC I N ~~ AC I N
17
18
19 20
21
22 16
Remote control panel
6
7
8
9
10
11
12
13
14
15
1 2 3 4
5
2
1
3
4
5
6
7
10
9
8
MU TE
ME NU
SE LEC T iP od SCRO LL DN iPod SCROLL UP
PR OG . (C D) RA ND OM RE PE AT
STOP
PL AY/ PAUS E SK IP- SK IP+
