Design LED Panel 72IP MKII

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

COLORS

• 72 x 3W K2 LED’s (24 Red, 24 Green, 24 Blue)
• High output, outdoor color L.E.D. wash panel
• Infinite color possibilities (RGB color mixing)

PHOTOMETRICS

Design LED Panel 72 MKII

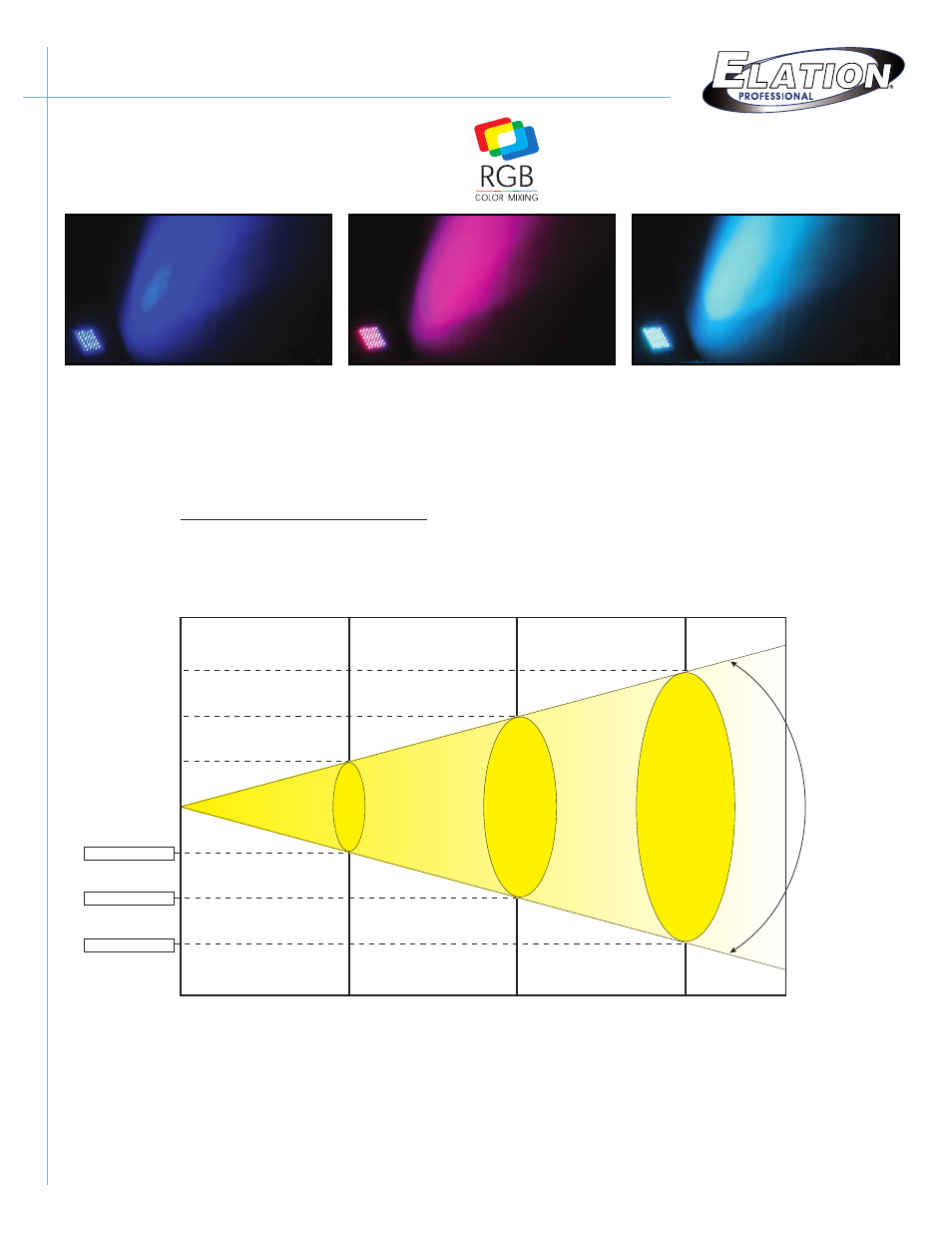

Photometric Beam Angle Data
Beam Angle 53°

LUX x 0.0929 = FC

53°

Beam Angle

1,028 FC

11,070 LUX

521 FC

5,605 LUX

141 FC

1,523 LUX

0 m

0 ft

1 m

3.28 ft

3 m

9.8 ft

2 m

6.6 ft

Ø 1.0 m

Ø 3.28 ft

Ø 2.0 m

Ø 6.6 ft

Ø 3.0 m

Ø 9.8 ft

Beam Diameter

Ø 1.0m / Ø 3.28ft

Ø 2.0m / Ø 6.6ft

Ø 3.0m / Ø 9.8ft
