Installing Fireplace in Mantel
Figure 9
1. Position base approximately 5" from wall surface.
2. Attach nailing flange to fireplace top with two (2) 10 x 1/2"
screws.
3. Place fireplace on top of base.
4. Gas line connections must be made at this time. When facing
the fireplace the gas supply will enter on right-hand side. See
"Gas Supply" Page 8.
5. Place right mantel side against base. Insert dowels in breastboard
into right mantel side. Breastboard will rest on fireplace top
and in front of nailing flange.
Attention: Placing the breastboard in front of nailing flange
will secure the fireplace.
6. Place left mantel side against base. Insert dowels in breastboard
into left mantel side.
7. Use four (4) pre-drilled screw holes on back of breastboard to
secure breastboard to mantel sides with four (4) Phillips wood
screws.
8. Place mantel top onto mantel.
9. Installation of fireplace into mantel is completed.
Installation of Trim
1. Lower bottom louver.
2. Remove screen from fireplace.
3. Remove top louver from fireplace [two (2) Phillips screws].
4. Attach right and lift trim to fireplace. Use two (2) Phillips
screws for each side.
5. Attach trim top to fireplace with two (2) Phillips screws.
6. Reattach top louver to fireplace using two (2) Phillips
screws.
7. Reattach screen to fireplace.
8. Raise bottom louver.
Figure 8

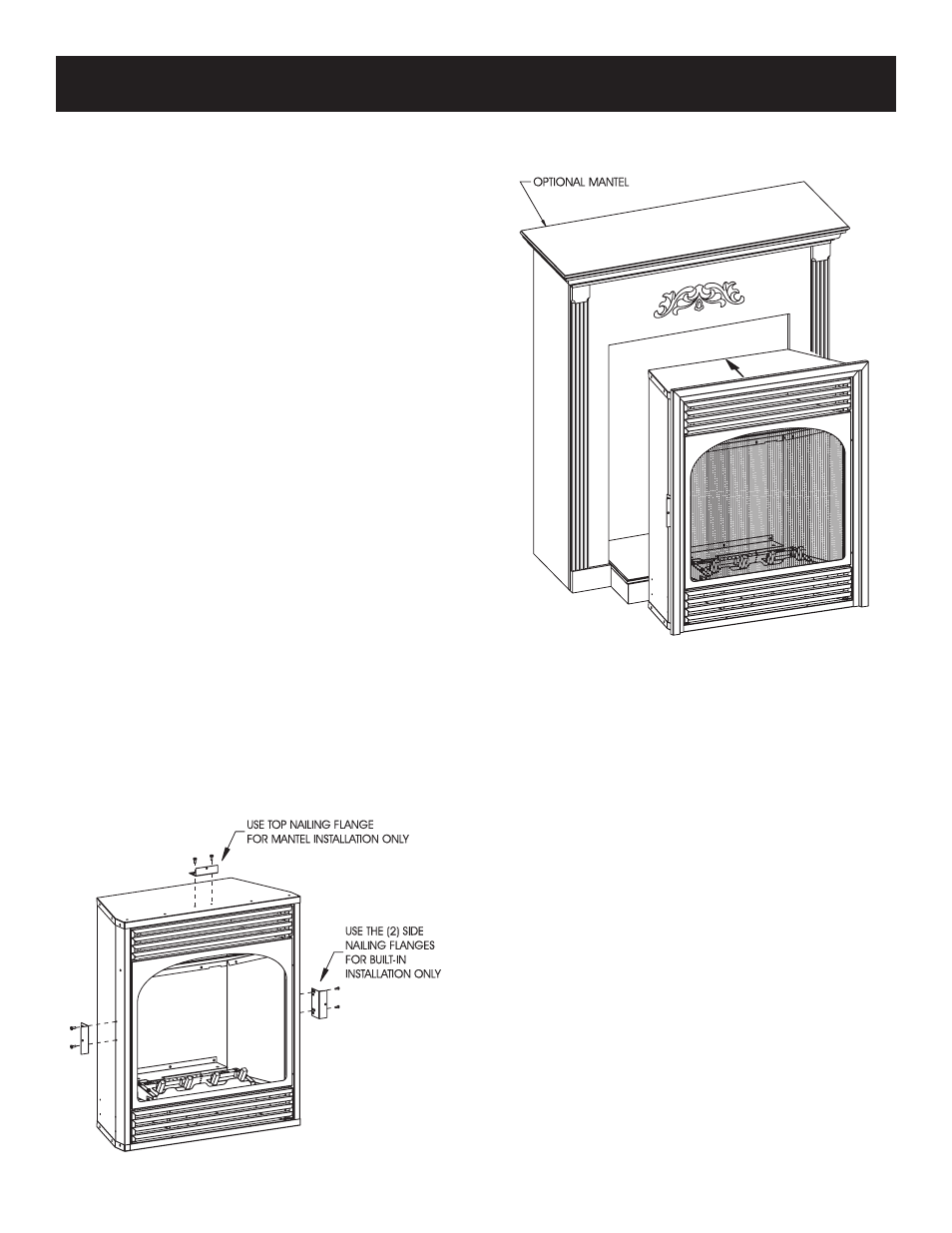

INSTALLATION OF FIREPLACE INTO MANTEL
