OCX 8800
O
2
CELL AND HEATER
STRUT ASSEMBLY

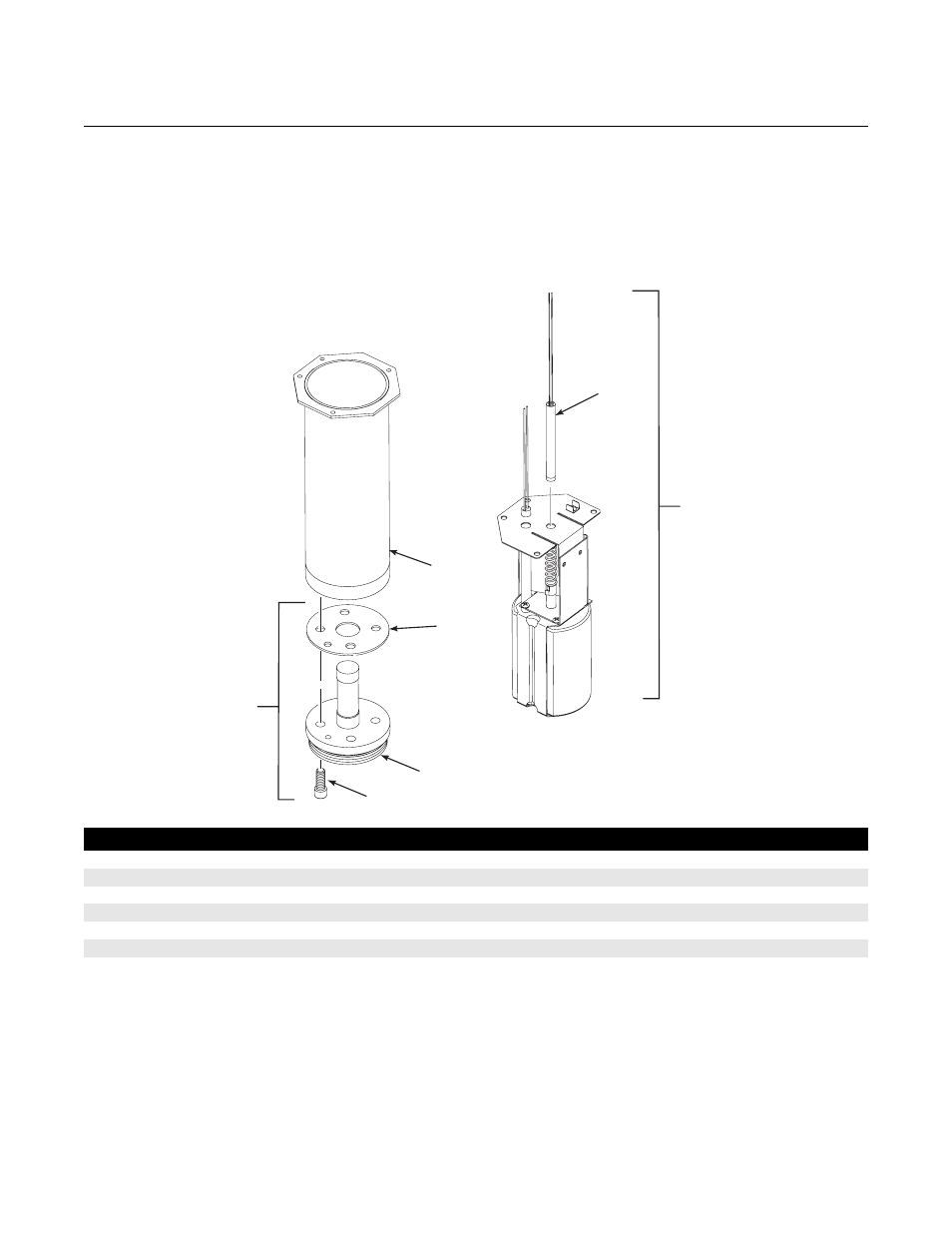

Figure 8-5. O
2
Cell and
Heater Strut Assembly
37390055
2
1
3
4
5
6
7
Index No.
Part Number
Description
1
4851B44G01
Contact and Thermocouple Assembly
2
5R10211G02
Heater Strut Assembly
3
5R10188G01
Heater Tube
4
Ref
Gasket (part of O
2
Cell Replacement Kit, item 7)
5
Ref
O
2
Cell (part of O
2
Cell Replacement Kit, item 7)
6
Ref
Screw (part of O
2
Cell Replacement Kit, item 7)
7
4851B45G01
O
2
Cell Replacement Kit
