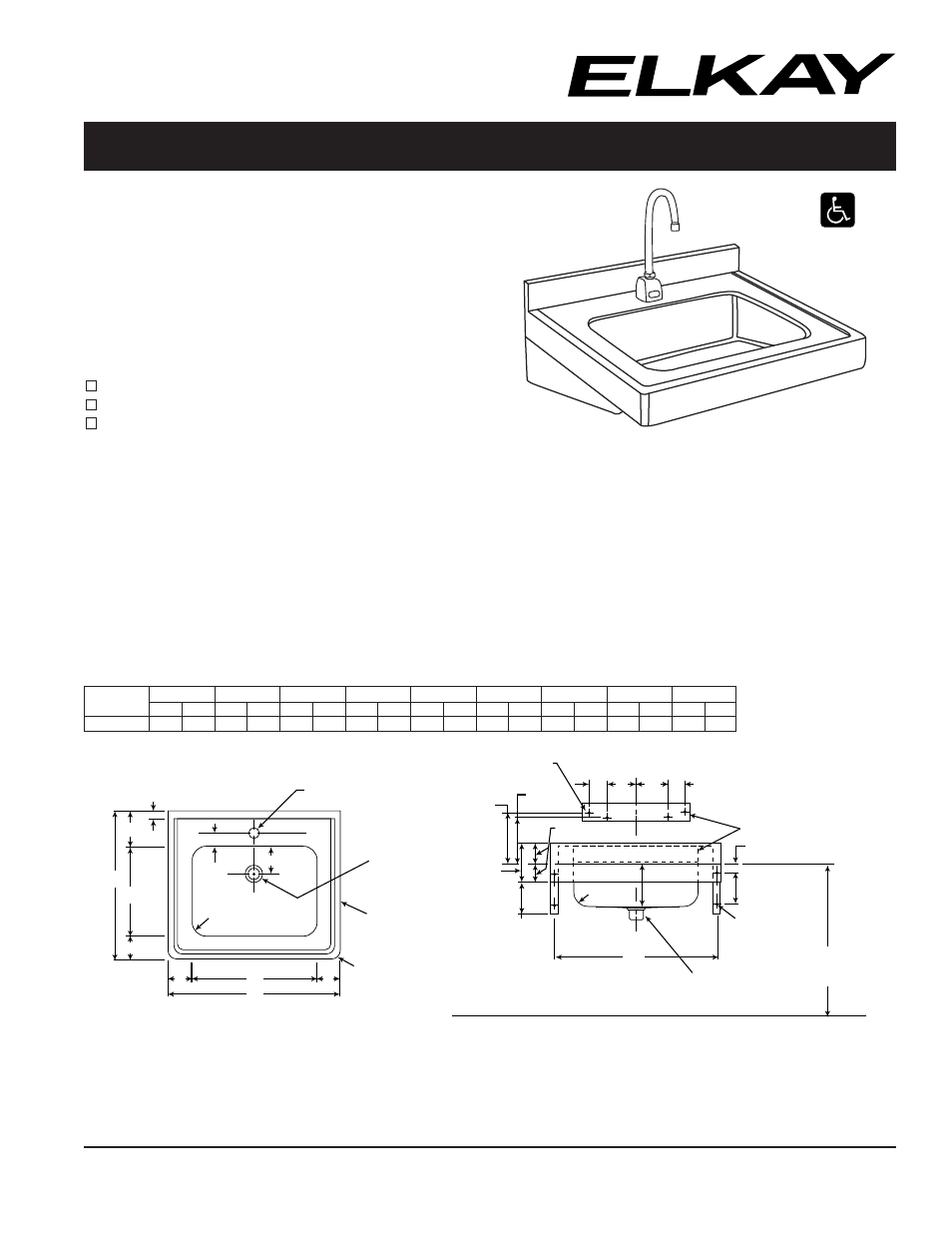

Elkay ELV2219SACC - Manual

Lavatory Sink, Wall Mounted
With Sensor Faucet, AC Powered
Models ELV2219SACC, ELV2219SACMC
and ELV2219SACTMC ®
SPECIFICATIONS
GENERAL
ELV2219 #18 gauge, type 304 (18-8) stainless steel lavatory
with 5/32" (4mm) raised rim and 2-1/2" (64mm) high back-
splash. Compartment has 1-3/4" (44mm) radius vertical and
horizontal coved corners. 2-1/2" (64mm) apron at front and
both sides. Exposed surfaces are hand blended to a uniform
satin luster finish. Rear centered outlet. Drain opening 1-5/8"
(41mm). Underside is sound deadened. Furnished with integral
stainless steel support brackets and separate wall hanger.
Meets ADA requirements.
(CHECK MODEL SPECIFIED)
MIXING
MODEL FAUCET VALVE
ELV2219SACC LK721AC NONE
ELV2219SACMC LK721AC LK724
ELV2219SACTMC LK721AC LK723
LK721AC Sensor-operated, non-mixing (tempered water),
deck-mounted gooseneck faucet with adjustable sensor eyes.
A continuous beam is emitted from sensor. The sensor faucet
is activated by user placing hands under the spout. Tempered
water will flow as long as hands remain within sensor range.
When hands are removed, the water stops automatically based
on shut off delay settings. The sensor then resets and is ready
for the next user. AC powered, chrome plated-solid brass body
construction and 12-1/2" (318mm) high from deck to top
of spout, 8-1/4" (210mm) from deck to spout outlet, 5 3/8"
(137mm) reach C.P. spout with 2.0 gpm laminar flow control on
spout end. Includes vandal-resistant, water-resistant sensor
control module with armored vandal-resistant control and
power cables, 12V DC plug-in voltage adapter, slow-closing
piston operated solenoid valve, in-line filter with clean out trap,
and 3/8" (10mm) stainless steel braided 12" (305mm) supply
line. Control circuit is solid state, has adjustable sensor range
(6" [152mm] preset to 30" [762mm]), shut off delay preset at
1 second and field adjustable to 2, 4 or 8 seconds, and auto-
matic time-out feature (to prevent sink overflow) is preset at
0 seconds and is field adjustable to 15, 30 or 60 seconds.
LK723 Anti-scald thermostatic mixing valve with nickel-plated
brass body 1/2" (13mm) SWT inlets and outlet connections,
check valves on inlets and a mixed temperature range of 80°-
120°F. Certified under ASSE1016.
LK724 Mechanical mixing valve with C.P. brass body, 3/8"
(10mm) compression inlets and outlet connections, and check
valves on inlets.
Elkay Manufacturing Company 2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2001 Elkay Mfg. Co.
(3/01) 3-33
www.elkay.com
Model ELV2219SACC
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
DIMENSIONS
Model A B C D E F G H I
Number in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm
ELV2219 22 559 19 483 16 406 11 1 / 2 292 3 76 4 1 / 2 114 3 1 / 2 89 2 5 / 8 67 4 15 / 16 125
1-3/4"
(44mm)
1-1/4" (32mm) DIA.–
1 HOLE
1-5/8" (41mm)
DIA. HOLE
RAISED RIM
FRONT & ENDS
1" RADIUS
(25mm)
1"
(25mm)
1-3/4"
(44mm)
G
D
E
E E C
A
F
B
31-1/2" (800mm)
TO FLOOR
RECOMMENDED
5-1/2"
(140mm)
1-3/4" R
(44mm)
4 SLOTS
1/4" (6mm) x 1" (25mm)
2-1/2"
(64mm)
4"
(102mm)
5"
(127mm)
5/8"
(16mm) 15/16"
(24mm)
3/8" (10mm) DIA.
2 HOLES EACH
BRACKET
1/4"
(6mm)
5"
(127mm)
21"
(533mm)
WALL HANGER
H I I H
TOP OF RIM
STAINLESS STEEL HOUSING
WITH RUBBER WASHER
FURNISHED LOOSE
ADA
Compliant
