Page 5

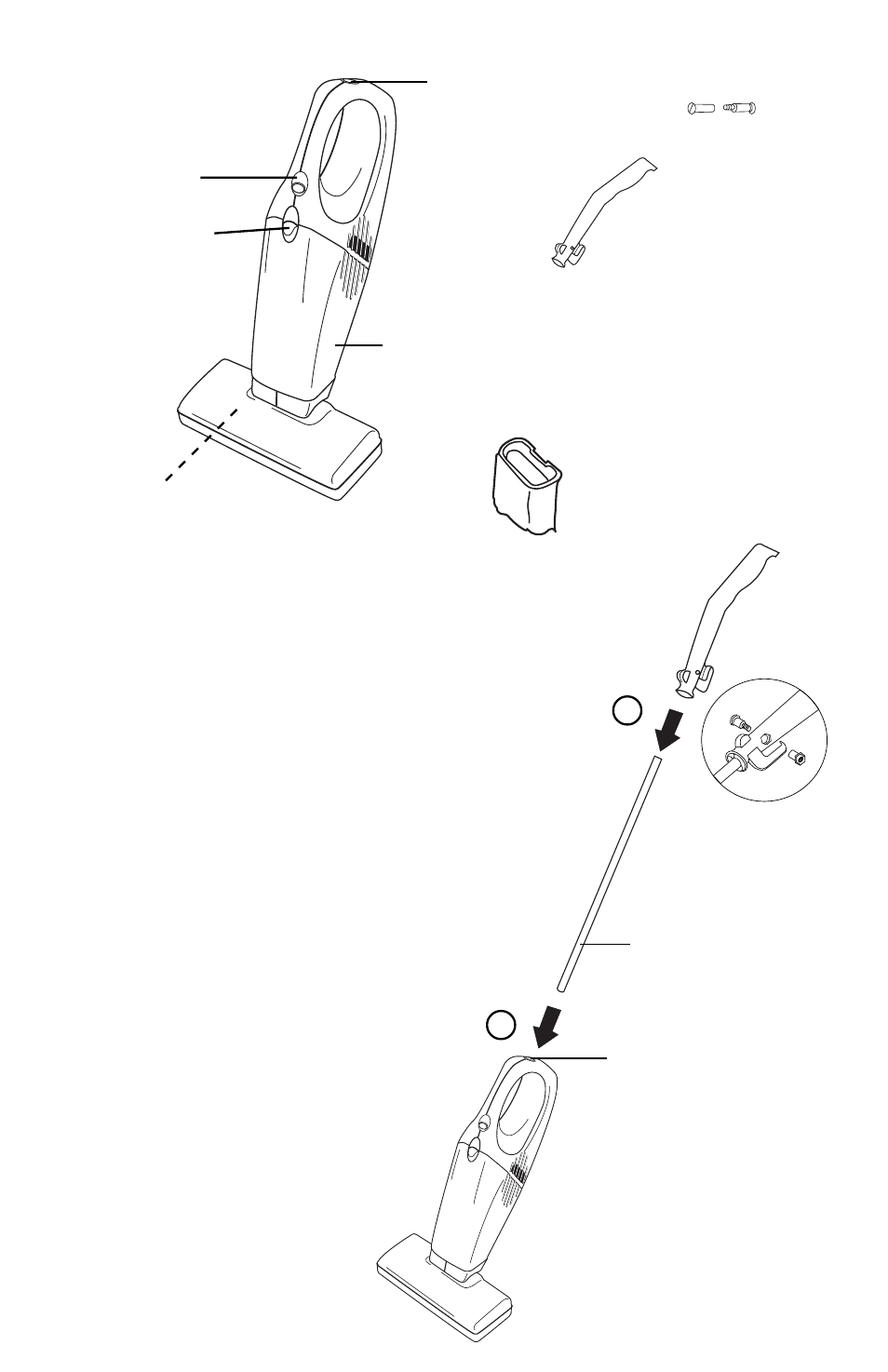

Identify Parts

HOW TO ASSEMBLE

Assemble completely before using.

On/Off Switch

Dust Cup Latch

Brush Roll (optional)

(inside nozzle)

Handle Grip

Dust Cup Filter

(inside dust cup)

Handle

Bolt

Detail A

Dust Cup

Lock Button

2. Attach Handle Grip

Locate the handle bolt in the
accessory package.

Align the hole in the handle with the
hole in the handle grip and secure
with the 2-part handle bolt, see
Detail A. Tighten the handle bolt.

1. Attach Handle

Use your thumb to pull back on the lock button.

Push handle into top of cleaner. Insert end with
black knob into the cleaner.

Release lock button and rotate handle until it
locks into place.

Handle
