3
Introduction
Chapter 1
Network Application Platforms
F1 Power/Status/HDD LED
Power: If the LED is on it indicates that the system is powered on. If it is off, it indicates that the system is powered off.
Status: If the LED is green, it indicates that the system’s operational state is normal. If it is red, it indicates that the system is
malfunctioning.
HDD: If the LED blinks, it indicates data access activities. Otherwise, it remains off.
F2 System Panel
The LCD System Panel can be programmed to display operating status and configuration information. For more details or
sample programming code, please refer to Appendix C Programming the LCM.
F3 Reset Switch
The reset switch can be used to reboot the system without turning off the power.
F4 Console Port
By using suitable rollover cable or RJ-45 to DB-9 Female, you can connect to a computer terminal for diagnostic or
configuration purpose. Terminal Configuration Parameters: 115200 baud, 8 data bits, no parity, 1 stop bit , no flow control.
F5 Two USB 2.0 Ports
It connects to any USB devices; for example, a flash drive.
F6 6 Gigabit LAN ports (provided by Intel 82583V or 82574L for model FW-7582D)
Left LED (Yellow): If the LED is on, it indicates that the port is linked/active. If it blinks, it indicates network activity.
Right LED (Clear): If the LED is orange, it indicates that the connection speed is 1000Mbps. If the LED is green, it indicates
that the connection speed is 100Mbps. If the LED is off, the connection speed is 10Mbps.
3 pairs (LAN1-LAN2, LAN3-LAN4, LAN5-LAN6) can be configured as LAN Bypass when failure events occur. This feature is
implemented in hardware using watch dog timer functionality. Refer to Appendix D Programming Lan Bypass for a sample
implementation of this feature.
LAN1 is capable of the Preboot eXecution Environment (PXE), which allows you to boot computers using a network interface
independently of data storage devices (like hard disks) or installed operating systems. Enable this function with this option
here.

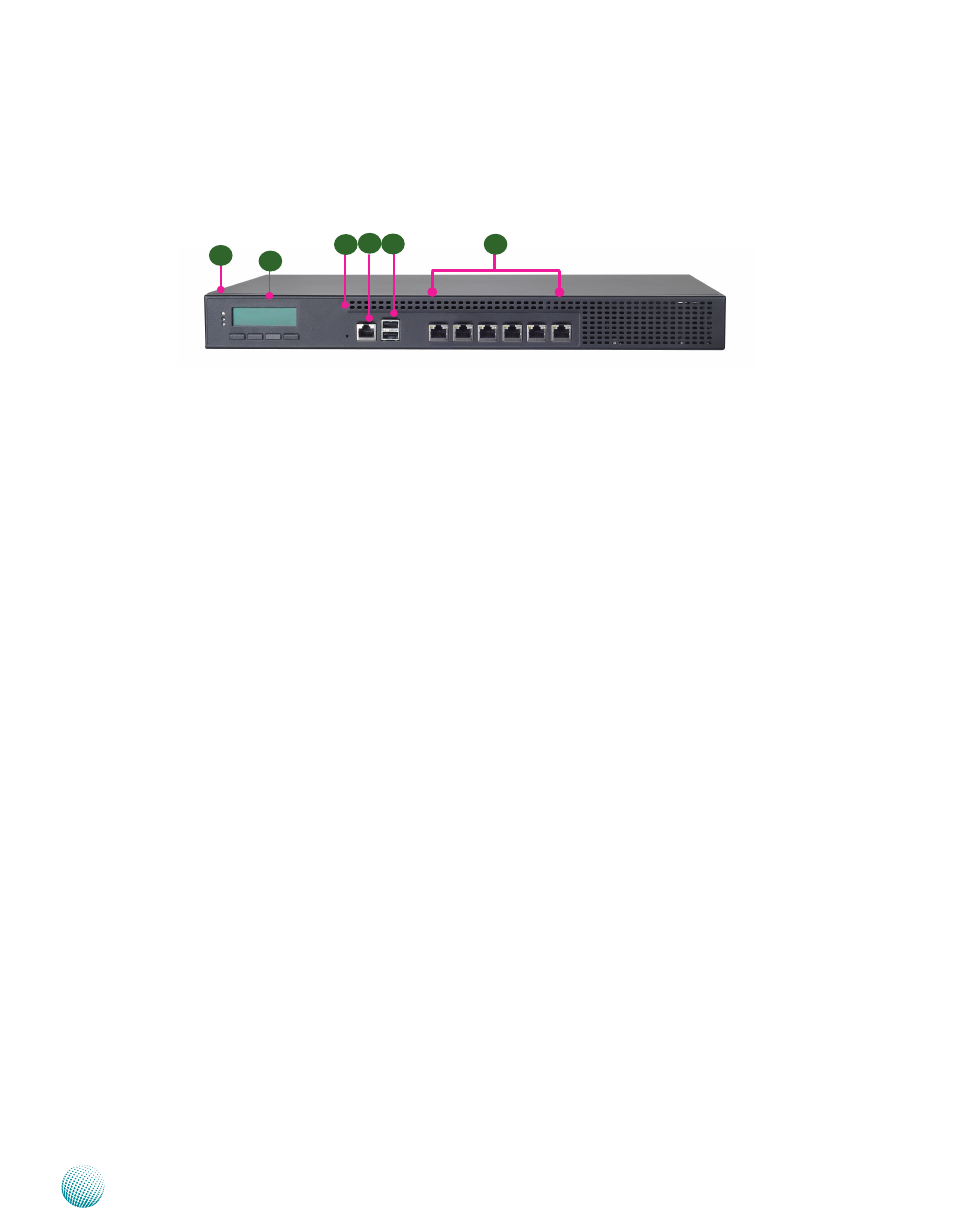

Front Panel Features
F3 F4 F5
F1
F2
F6
LAN1
