air-o-steam

class B

Natural Gas Combi Oven 102

air-o-steam

class B Natural Gas Combi Oven 102

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2012.07.24

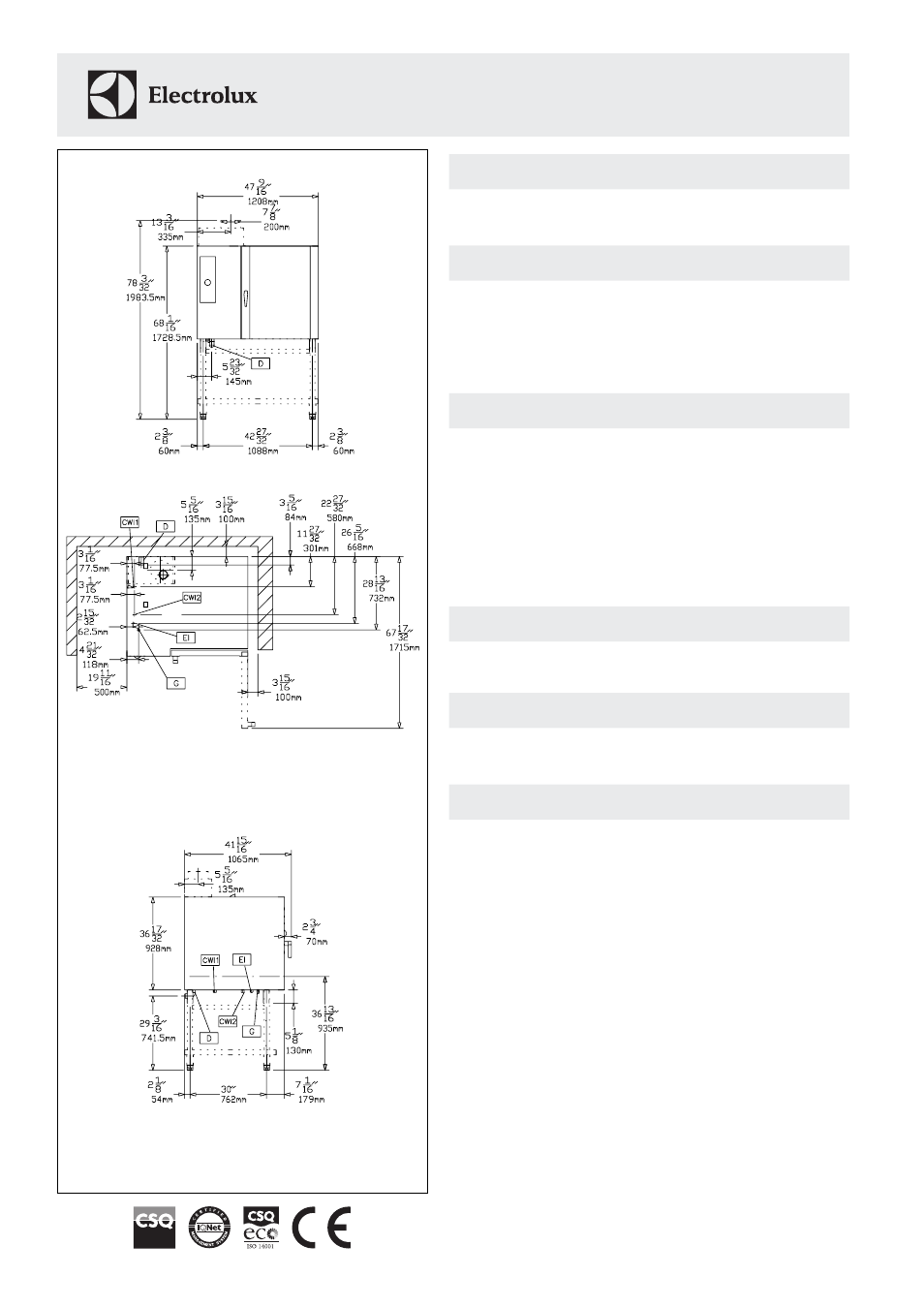

Front

Top

CWI = Cold Water inlet

D = Drain

DO = Overflow drain pipe

EI = Electrical connection

G = Gas connection

Side

Electric

Supply voltage:

268703(AOS102GBG2)

230 V/1N ph/50/60 Hz

Circuit breaker required

Gas

ISO 7/1 gas connection diameter:

1/2" MNPT

Natural gas:
Pressure:

7" w.c. (17.4 mbar)

Steam generator:

25 kW

Heating elements:

92043 BTU (27 kW)

Total thermal load:

153405 BTU (45 kW)

Water:

Water inlet "CW" connection:

3/4"

Water inlet "FCW" connection:

3/4"

Total hardness:

5-50 ppm

Pressure:

1.5-4.5 bar

Pressure:

22-36 psi (1.5-4.5 bar)

Drain "D":

1"1/4

Electrolux recommends the use of treated water, based on

testing of specific water conditions.
Please refer to user manual for detailed water quality
information.

Installation:

Clearance:

5 cm rear and right hand sides.

Suggested clearance for service

access:

50 cm left hand side.

Capacity:

GN:

10 - 2/1 Gastronorm

GN:

20 - 1/1 containers

Max load capacity:

80 kg

Key Information:

External dimensions, Height:

1058 mm

External dimensions, Width:

1208 mm

External dimensions, Depth:

1065 mm

Net weight:

203 kg

Shipping weight:

229 kg

Shipping volume:

1.36 m³
