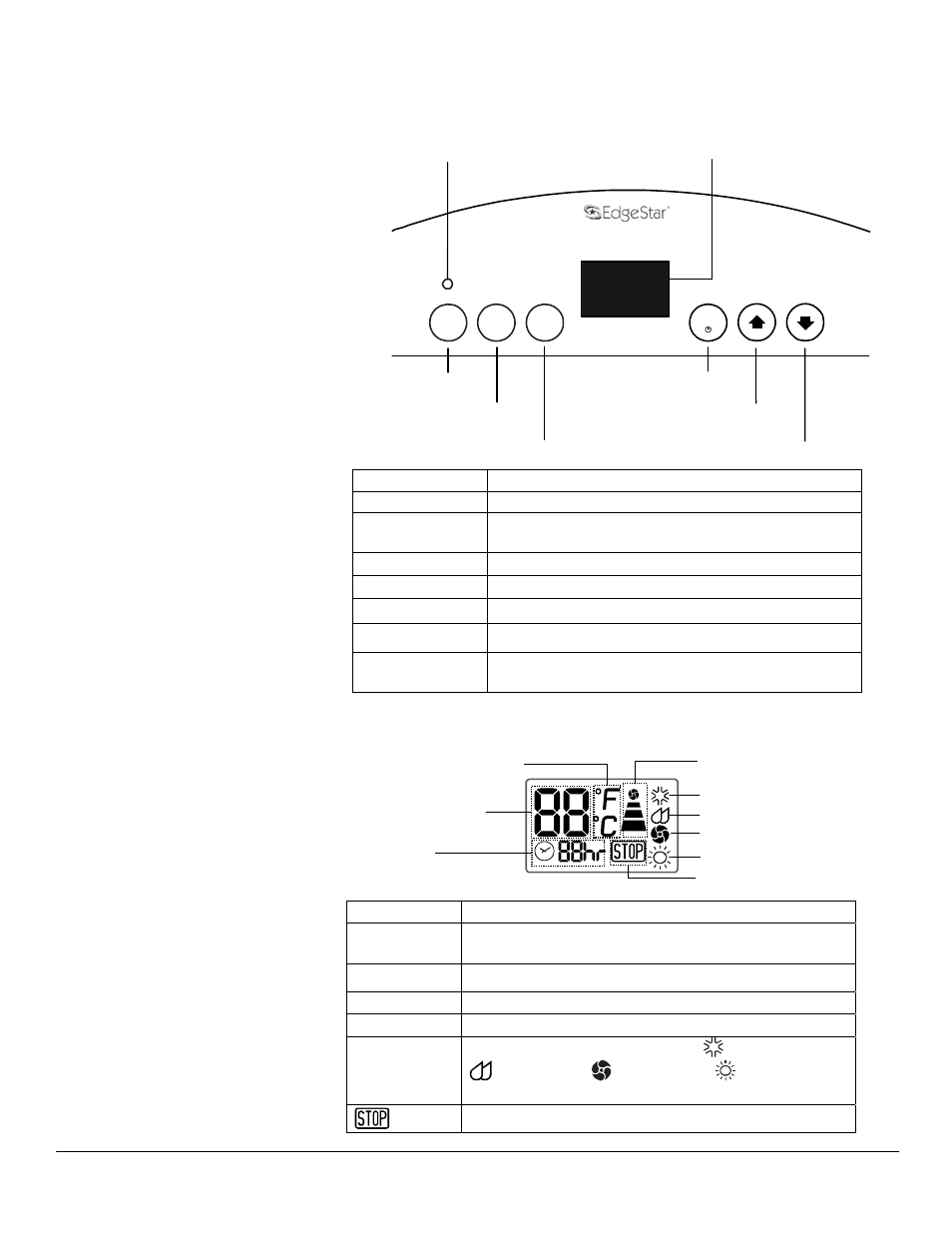

Control Panel Overview
Control Panel LCD Indicators
Function
Power Powers the unit on or off.
Mode Changes between cool, dehumidify, fan, and
heat (HS model) modes.
Speed Sets the fan speed.
Timer  Used to enable the timer.
 (Up) Increases the set temperature or timer hours.
 (Down) Decreases the set temperature or timer hours.
Water Light  The water light will turn on if the unit has filled
the internal water reservoir.
WATER
Speed Mode Timer POWER
Water Light
LCD Display
Power Button
Down Button
Up Button Mode Button
Speed Button
Timer Button
Indicator Function
F/C
Shows if the set temperature is in Fahrenheit or
Celsius.
Temperature Displays the set or ambient temperature.
Timer  Appears when the timer is enabled.
Fan Speed
Shows the set fan speed.
Modes
Shows the set mode between, Cooling,
Dehumidify, Fan Only, or Heat (HS
model only).
Appears when the water reservoir is full.
Timer
Water Full Indicator
Cool Mode
Fan Speed
Temperature
Dehumidify Mode
Fan Only Mode
Heat Mode (HS Model)
Fahrenheit / Celsius
