For gpd 515/g5 adjustable frequency drives, 1 encoder wiring examples, 2 marker pulse wiring examples – Yaskawa GPD515C-ZZZZ-CS104 User Manual

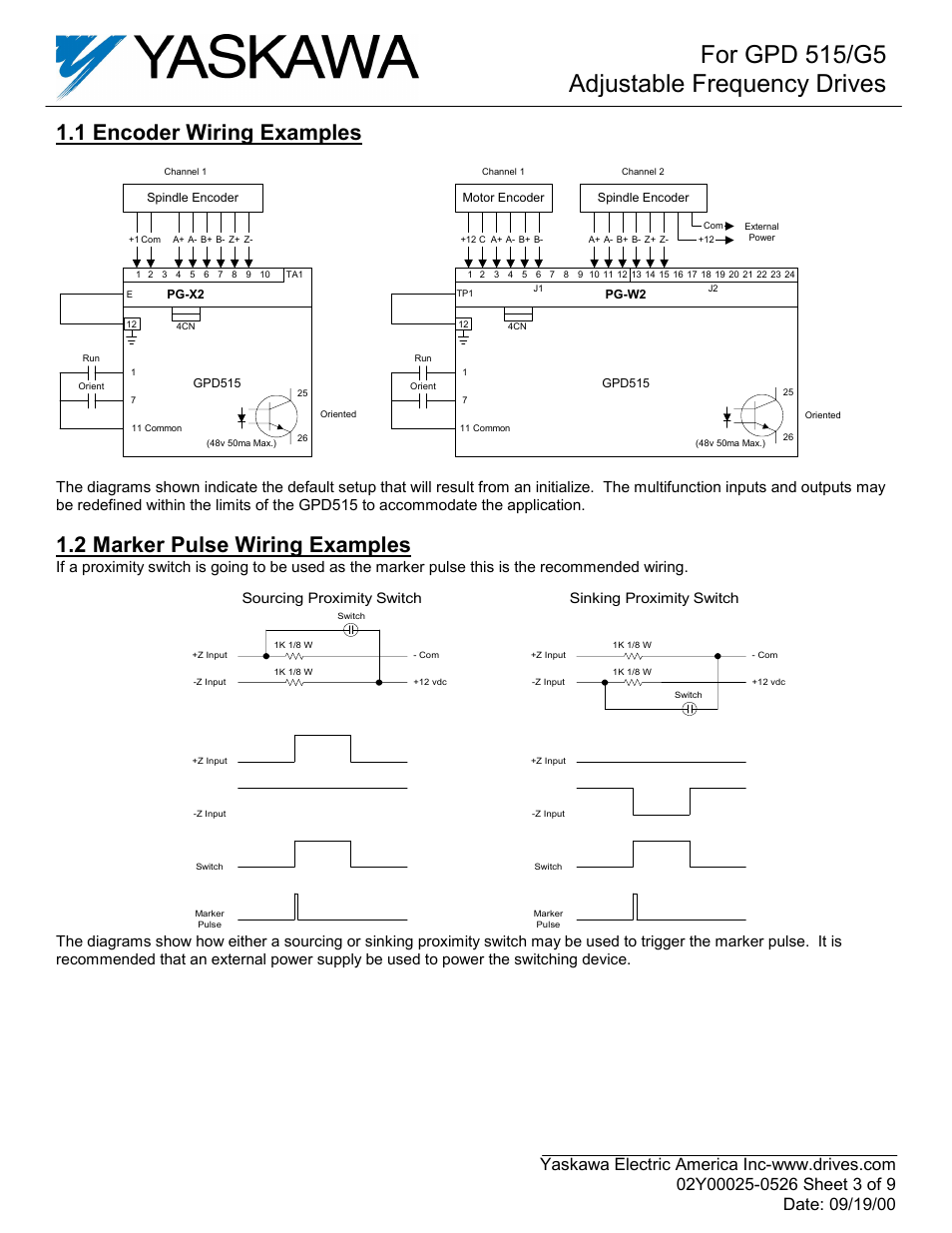

Page 3: Sinking proximity switch sourcing proximity switch
