PREPARING CABINET FOR FITTING
OVEN
Make sure the space between the cabinets is
the correct size for the appliance to be fitted
(Ref. Fig. 5 & 6).
The plinth board spanning the space into which
the appliance is to be installed should be
removed.
If the size between adjacent cabinets is
605-610*mm, then the cabinets should be
modified so that the recommended dimension of
at least 600-605mm is maintained.
The adjacent cabinets must be stable and firmly
secured to the wall or floor. If necessary, make
arrangements to ensure the work surface below
which the oven will rest is level.
Drill two pilot screw holes into the sides of the
adjacent cabinets, in the positions indicated by
Fig. 5.
Fit the appliance mounting brackets using the
two holes indicated in Fig. 7 to the adjacent
cabinets ( Ref. Fig.5 & 6 )
39
INSTALLATION INSTRUCTIONS

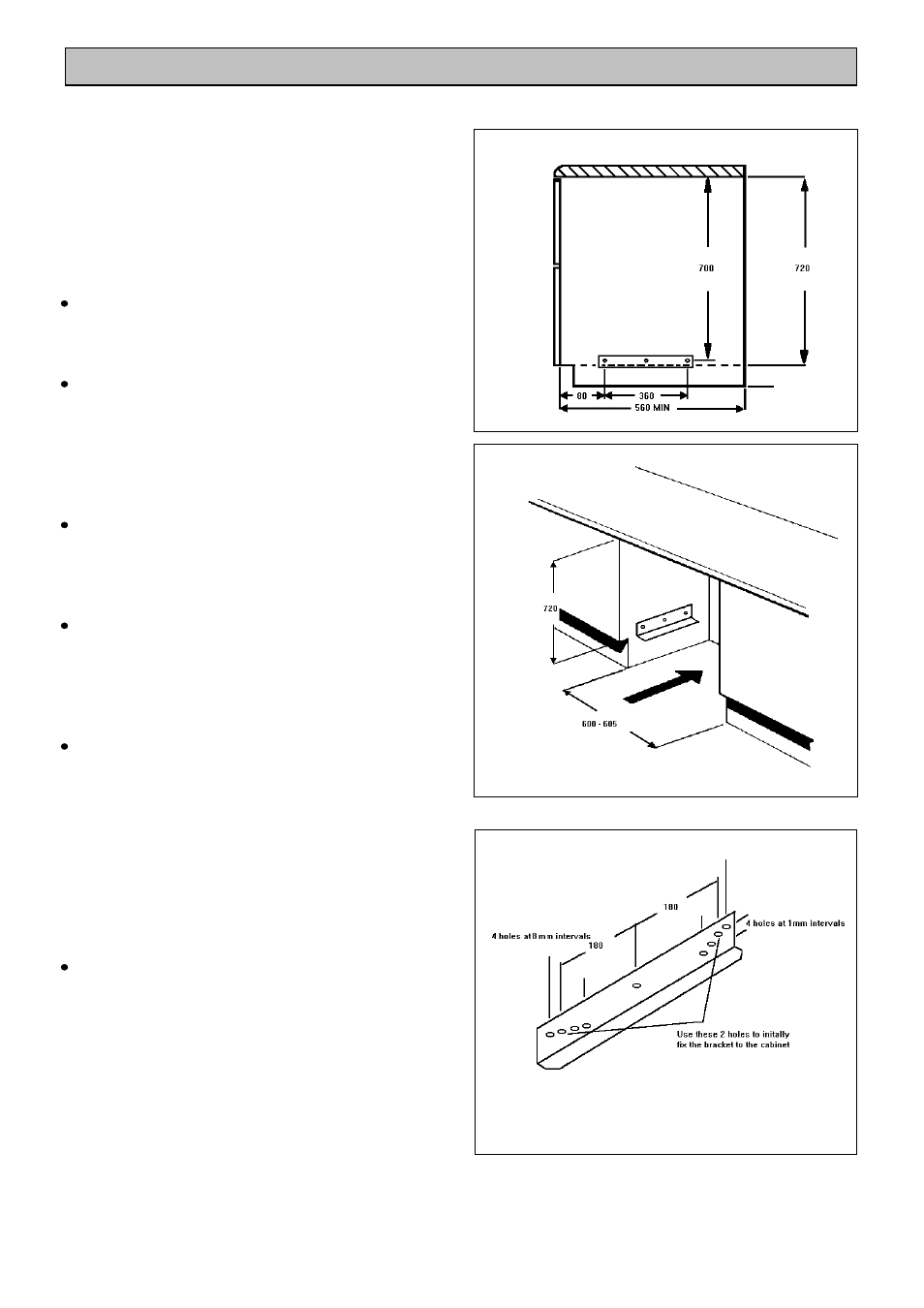

Fig. 5
Fig. 7
Fig. 6
