Eltax DR-109 User Manual

Page 13

Important

This well-designed DVD receiver provides

optimum sound quality when the speakers used
are within the range of their rated impedance.

The minimum impedance of the five speaker
terminals is 4 ohm; for the subwoofer, it is
8 ohm.

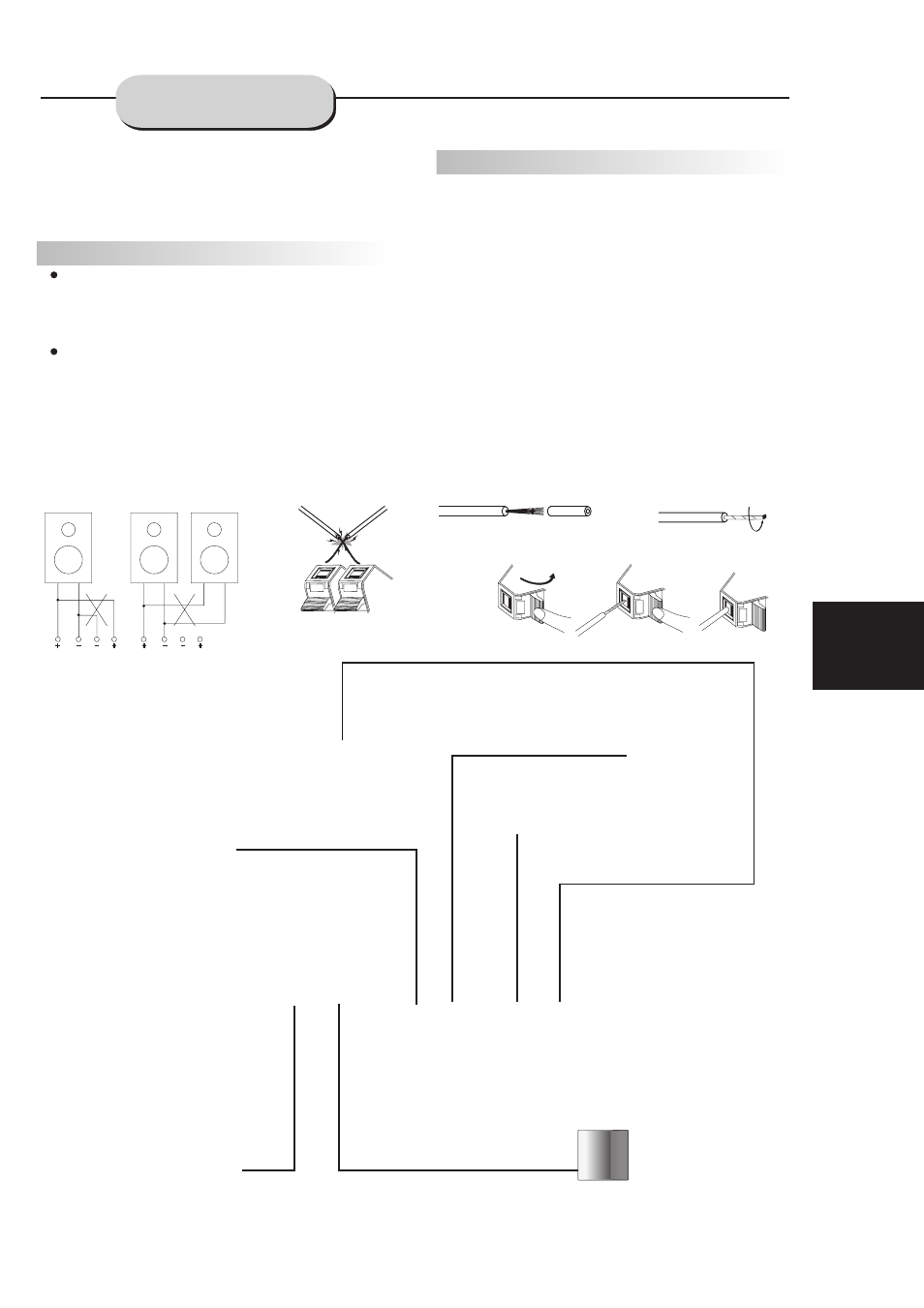

If you want to use only one speaker or listen

individual speakers to the left and right
channel terminals. See the figure on the left
below.

to monophonic music, do not parallel connect

Connecting Speaker Cables

Note:

1.Peel off approximately

of cable

insulation

2.Tighten the wire end (#2 below)
3.Open cable terminal by pressing back on

tab

4.Insert wire end into terminal
5.Release tab; make sure wire is in terminal

securely

To prevent damage to the circuit, care

should be taken to prevent short circuiting from
occurring at the positive and negative poles of
the speaker cord.

1/ 2

CONNECTING

SPEAKERS
