DVI DL 101 • Installation and Operation
Installation and Operation
DVI DL 101• Installation and Operation 2-2 2-3
Mounting the DVI DL 101
The DVI DL can be mounted on a rack shelf, under or through
furniture, attached to a projector pole, or placed on a table top.
Tabletop use
Four self-adhesive rubber feet are included with the DVI DL.
For tabletop use, attach one foot at each corner on the bottom
surface of the unit.
Rack mounting
The optional accessories available for rack mounting the DVI DL
include the following:
• RSF 123 — 3.5" deep 1U VersaTools
® rack shelf kit
(part #60-190-20)
• RSB 123 — 3.5" deep 1U VersaTools rack shelf (part #60-604-20)
• RSU 126 — 6" deep 1U universal rack shelf kit
(part #60-190-10)
• RSB 126 — 6" deep 1U basic rack shelf (part #60-604-10)
• RSU 129 — 9.5" deep 1U universal rack shelf kit
(part #60-190-01)
• RSB 129 — 9.5" deep 1U basic rack shelf (part #60-604-01)
UL rack mounting guidelines
The following Underwriters Laboratories (UL) requirements
pertain to the installation of the DVI DL 101 into or onto a rack.
1
. Elevated operating ambient — If the equipment is
installed in a closed or multi-unit rack assembly, the
operating ambient temperature of the rack environment
may be greater than room ambient. Therefore, consider
installing the equipment in an environment compatible
with the +122 °F (+50 °C) maximum ambient temperature
(Tma) specified by Extron.
2 . Reduced air flow — Install the equipment in the rack so
that the amount of air flow required for safe operation of
the equipment is not compromised.
3 . Mechanical loading — Mount the equipment in the rack
so that uneven mechanical loading does not lead to a
hazardous condition.
4 . Circuit overloading — When connecting the equipment
to the supply circuit, consider the connection of the
equipment to the supply circuit and the effect that circuit
overloading might have on overcurrent protection and
supply wiring. Consider equipment nameplate ratings
when addressing this concern.
5 . Reliable earthing (grounding) — Maintain reliable
grounding of rack-mounted equipment. Pay particular
attention to supply connections other than direct
connections to the branch circuit (such as the use of power
strips).
Rack mounting procedure
On the 6" deep and 9.5" deep rack shelves, the unit can be
mounted in the front or the rear of the rack.
1
. If rubber feet were previously installed on the bottom of
the unit, remove them.
2 . Secure the DVI DL on the rack shelf, using two 4-40 x
3/16" screws in opposite (diagonal) corners.
3 . Install blank panel(s) or other unit(s) on the rack shelf as
desired.
4 . Insert the shelf into the rack, aligning the holes in the shelf
with those of the rack.
5 . Secure the shelf to the rack using the supplied machine
screws. This shelf can be mounted in the front or in the
rear of the rack.

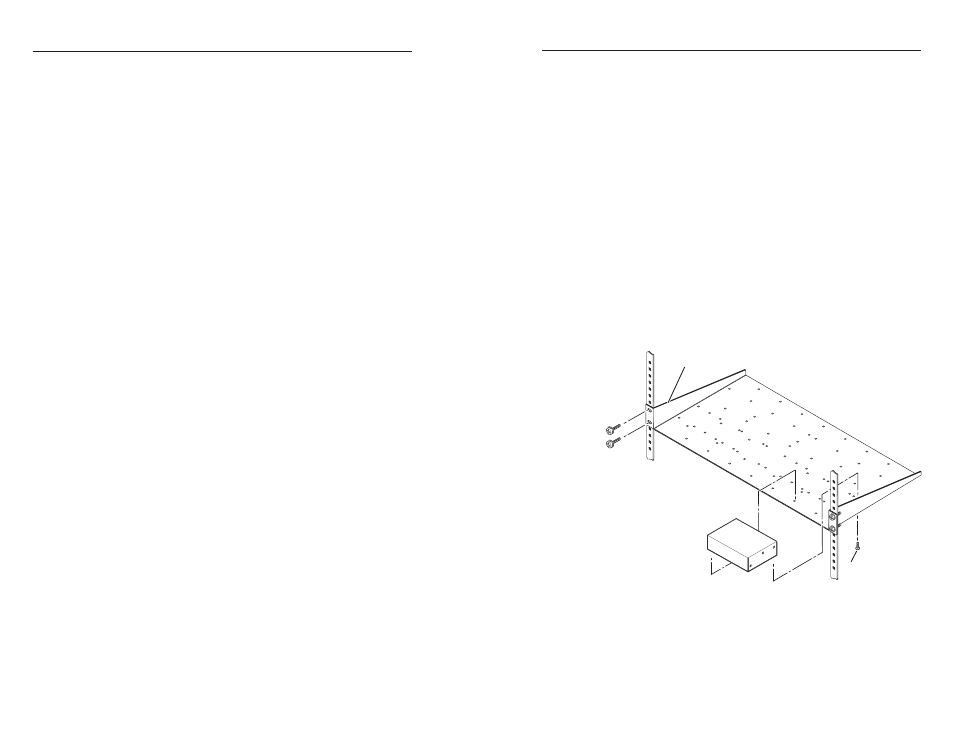

Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
1U Universal Rack Shelf
Mounting the DVI DL 100 on a standard rack shelf
