38 • ARMS Orderguide • rev. 05/30/03 870-03-005

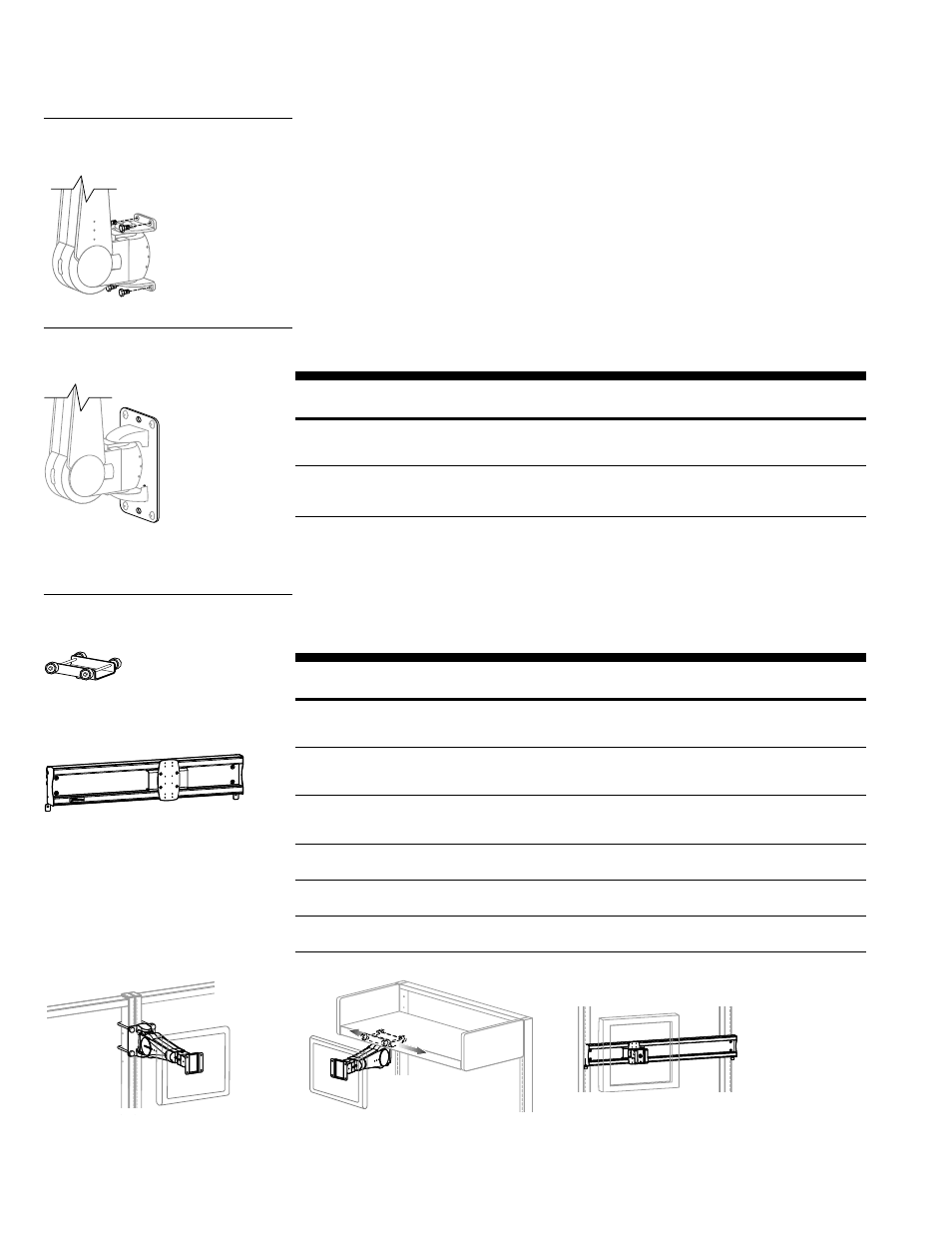

Surface Attachment Options
Direct Mounting
400, 300, 200, 100, VL, HD, and FX Series ARMS can mount directly to surfaces. Since
applications vary, fasteners that attach ARMS to any surface should be supplied by the
user. For direct-mount hole patterns, see pp. 54–57.
Always consult the appropriate construction, engineering, or architectural personnel to
ensure the product is mounted securely to handle applied loads. For most vertical-surface
applications, Ergotron recommends an additional mounting interface, such as a Wall Plate
or Wall Track, for added support.
Wall Plates provide better support by spreading weight over a larger area.
Part Description Dimensions Shipping
Number H x W Weight
97-101-003, aluminum* Wall Mount Plate for 8-3/8" x 3-1/2" 1 lbs
400, 300, 200, 100 (213 x 89 mm) (.5 kg)
Series & HD Pivots
60-152-100, grey* Wall Mount Bracket for 8" x 6-5/8" 1 lbs
HD Series Arms (203 x 169 mm) (.5 kg)
(excludes HD Pivots)
* Does not include fasteners for attaching to vertical surface. Customer supplied.
Note: Refer to page 56 for additional specifications.
Wall Plates
97-101-003,
Wall Mount Plate
w/ 400 Series Arm
Integrate Flat Panel ARMS within Ergotron technical furniture systems: LAN Organizer ™ 3000 and
TechStation.
Part Description Application Shipping
Number Weight
42-021-100, grey Shelf Mount Truck Mounts 400 Series Suspend Mount Arm 3 lbs
below Suspension Shelf or Security Cabinet. (1.4 kg)
Features side-to-side sliding motion across rail
30-062-100, grey 30" Rail with Truck Mounts 100 Series Pivots and 200, 300 and 400 7 lbs
Series Vertical Mount Arms between frame uprights. (3.2 kg)
Features side-to-side sliding motion across rail
30-061-100, grey 42" Rail with Truck Mounts 100 Series Pivots and 200, 300 and 400 7 lbs
Series Vertical Mount Arms between frame uprights. (3.2 kg)
Features side-to-side sliding motion across rail
60-231-100, grey Arm Mount Kit Mounts 200, 300 or 400 Series Vertical Mount Arm 3 lbs
to front of frame (1.4 kg)
60-230-100, grey Arm Mount Kit Mounts 200, 300 or 400 Series Vertical Mount Arm 3 lbs
to inside of frame (1.4 kg)
60-233-100, grey Arm Mount Kit Mounts 200, 300 or 400 Series Vertical Mount Arm 3 lbs
to double frame (1.4 kg)
Furniture Mounts
42-021-100
30-061-100
60-233-100, 400 Series Vertical Mount Arm
clamped to double frame 42-021-100, 400 Series Suspend Mount Arm
attached to Shelf Mount Truck below shelf 30-061-100, 100 Series Pivot mounted
between frame uprights
