2 Turbo iDDR Rack-Mount Instructions July 21, 2005
Rack mount hardware shipped with the iDDR
Rack mount hardware shipped with the iDDR

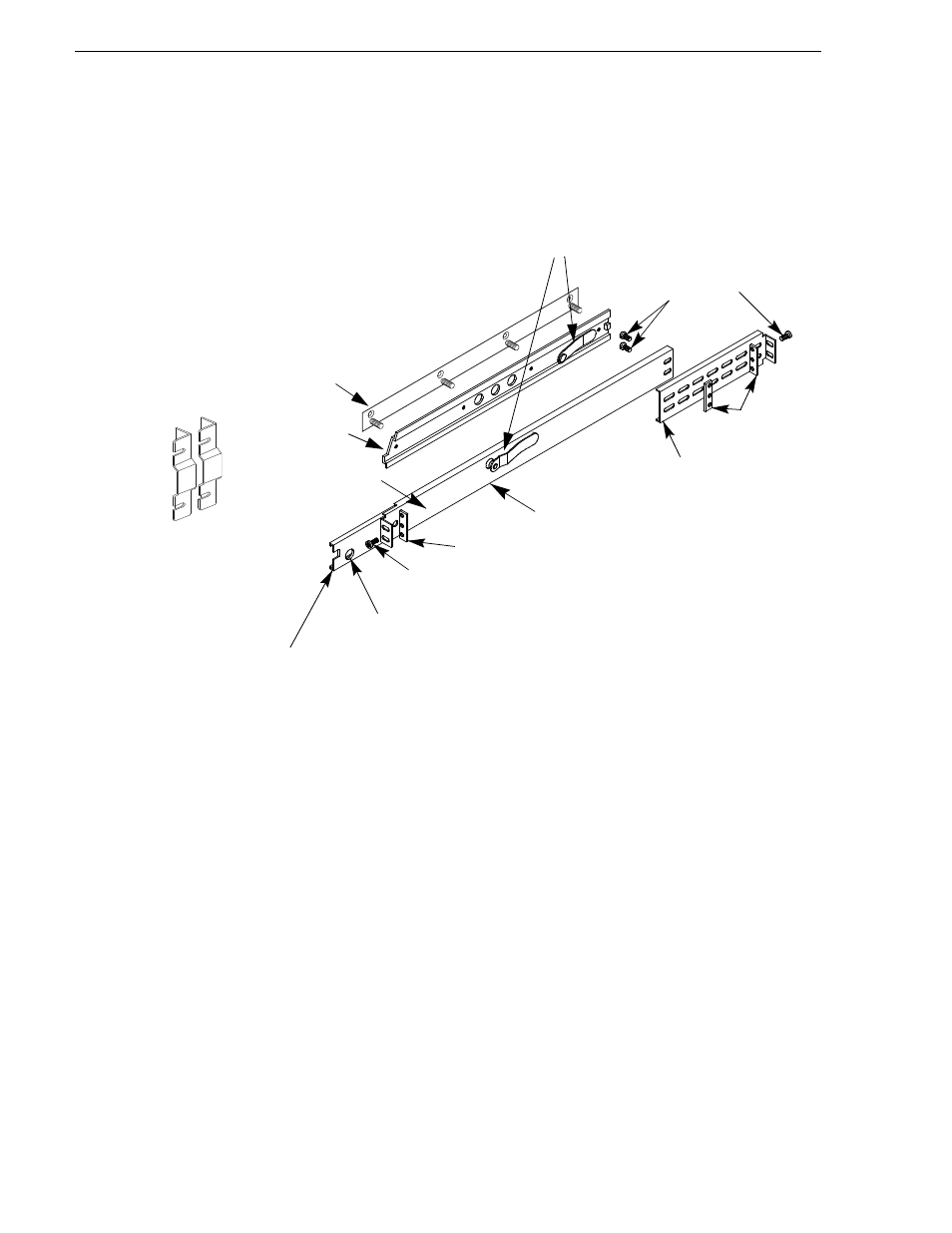

Your iDDR rack-mount kit comes with rack mounting hardware as shown.
NOTE: You must install
adapter and chassis
section on the Turbo
iDDR chassis
Automatic
Latches
Rack Section
10-32 PHS
10-32 PHS
Flat
Nut
Flat Nut Bar
Intermediate
Section
Stop Latch
Rear Stationary
NOTE: Right-hand and left-hand stationary section is
designated by the RH and the LH marked on the rails.
Mounting
Brackets and
Screws
Adapter
Chassis Section
