Page 21
LDK 4427 3G Fiber Camera to 3G Triax Converter User’s Guide (v1.0)
21
Chapter 3 - Specifications

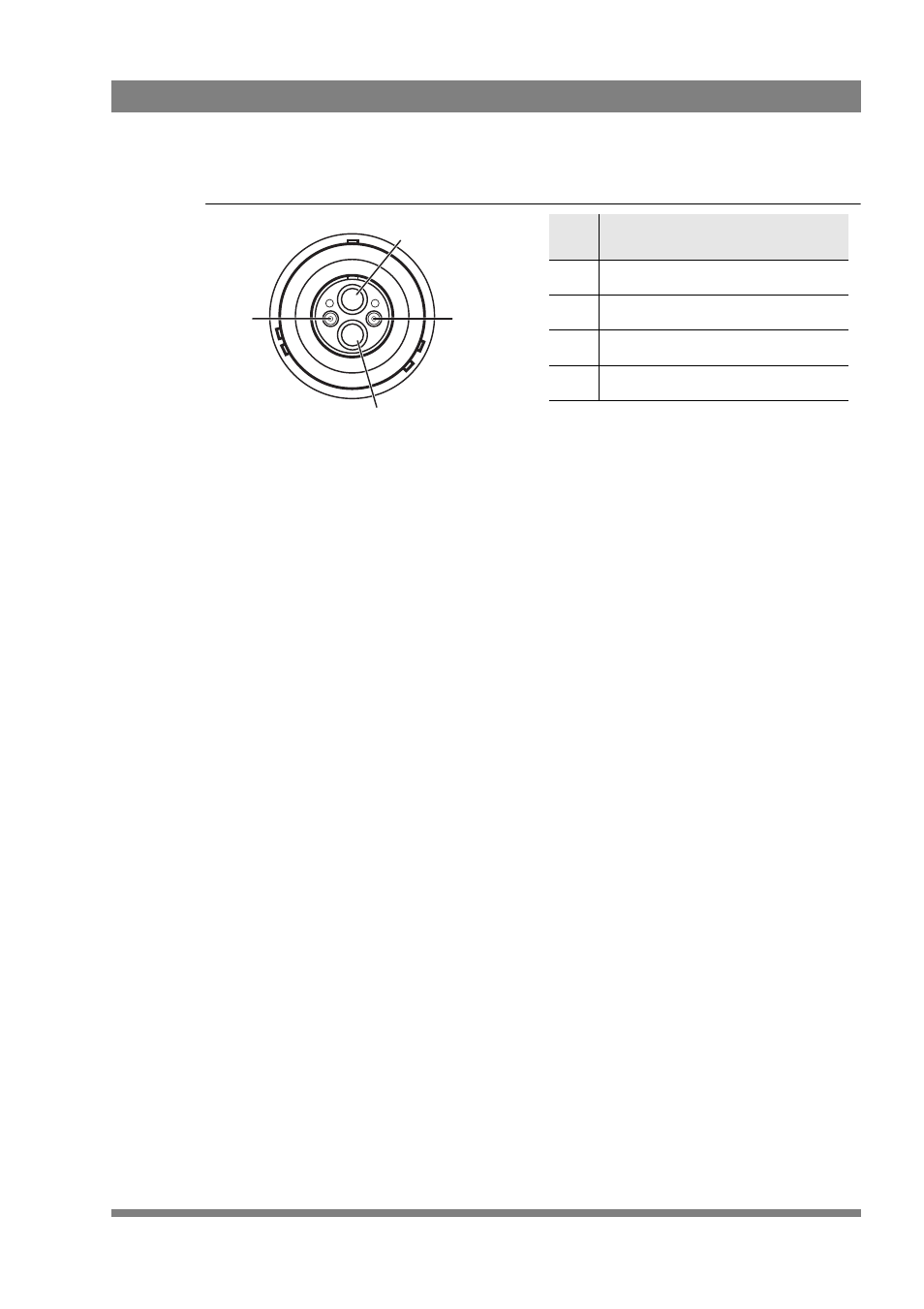

3.2.2 Hybrid fiber connector
Hybrid fiber connector is compliant
with SMPTE 304M.
Pin Description
1
Fiber A (cam to base station)
2
Power supply return
3
Fiber B (base station to cam)
4
Power supply (300 VDC)
1
4
2
3
Various types available
