LDK 4427 3G Fiber Camera to 3G Triax Converter User’s Guide (v1.0)

Chapter 1 - Installation

Chapter 1

Installation

1.1 Introduction

The 3G Fiber Camera to 3G Triax Converter is used to convert 3G Fiber signals
coming from a camera with an LDK 5420 3G Fiber adapter to Triax signals that are
routed to the LDK 4420 3G Twin or LDK 4400 3G Triax Base Station. The converter
and the camera system are both powered by the Triax or Twin base station.

1.2 Configurations

1.2.1 3G Fiber to 3G Triax (with LDK 4420)

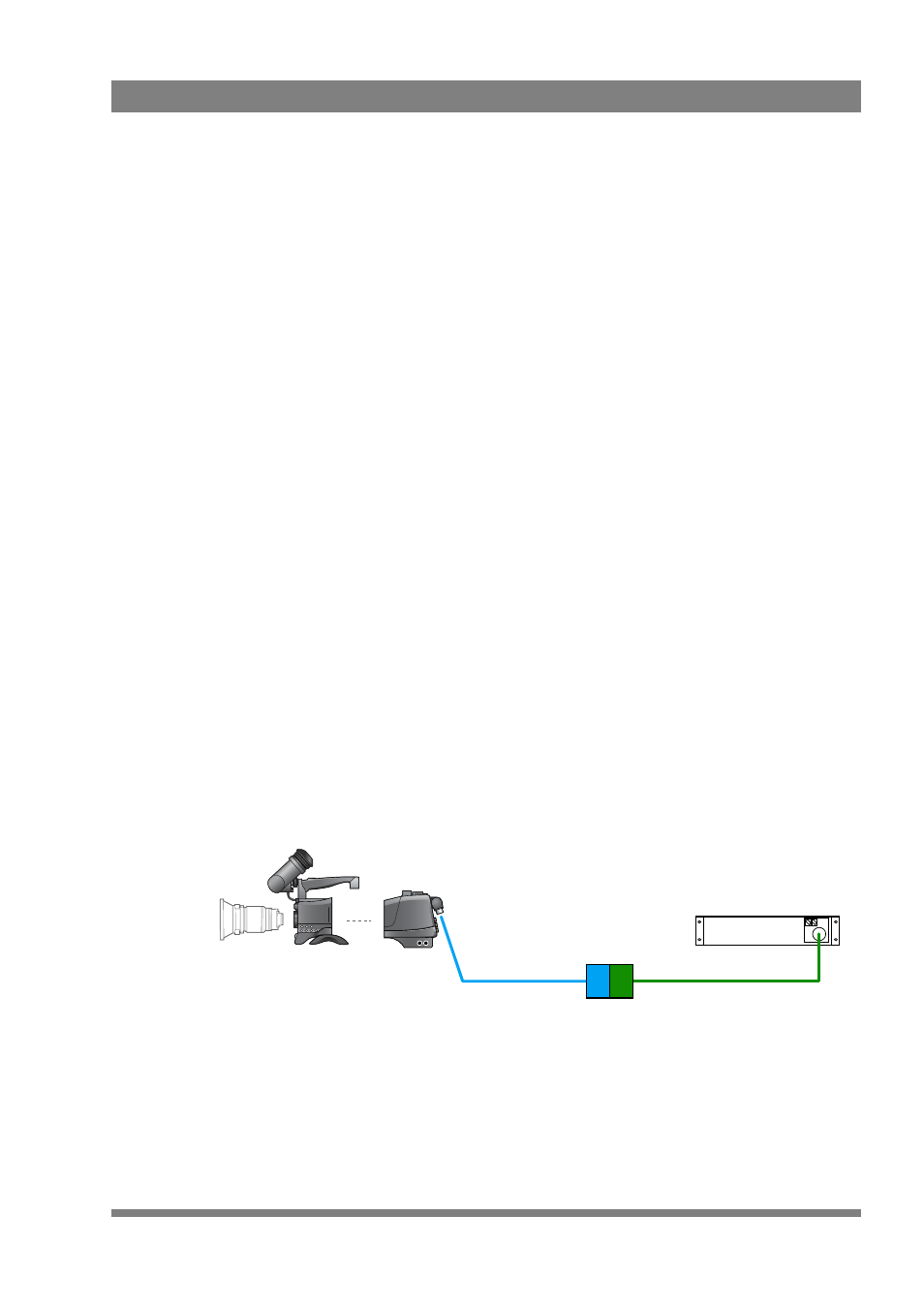

A studio camera with a 3G Fiber adapter is connected to the converter with a hybrid
fiber cable.

LDK 4420

3G Twin Base

Station

Studio camera
with LDK 5420



3G Fiber adapter

LDK 4427 3G

Camera Triax to
Fiber Converter

Triax

Fiber
