LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)

21

Chapter 3 - Specifications

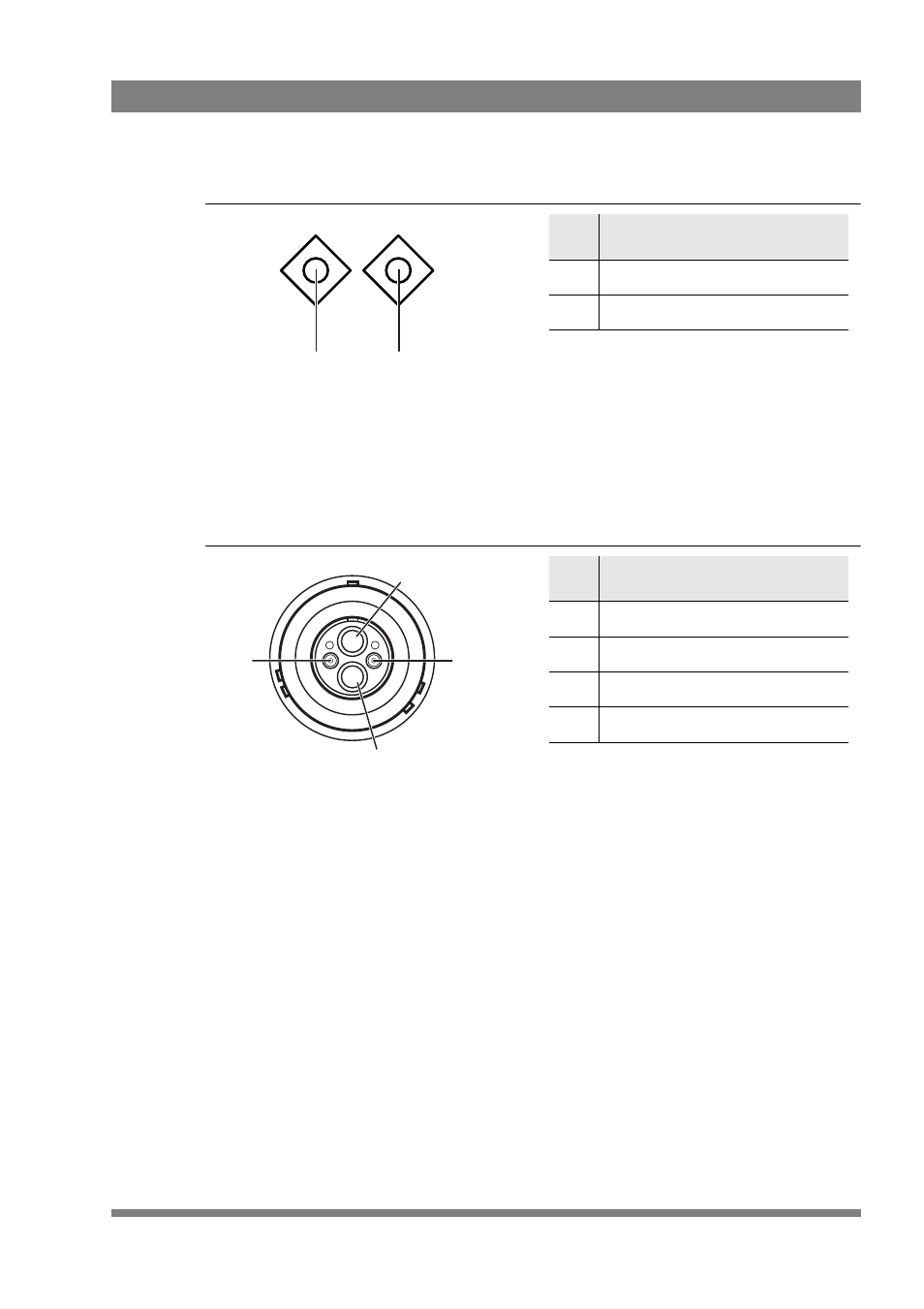

3.2.2 Dark Fiber connectors (2x)

3.2.3 Hybrid Fiber connector

A

B

Cn

Description

A

Optic fiber A

B

Optic fiber B

Various types available

Lemo hybrid fiber connector compliant
with SMPTE 304M.

Pin Description

1

Optic fiber channel A

2

Power supply return

3

Optic fiber channel B

4

Power supply

1

4

2

3

Various types available
