16 LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)
Chapter 2 - Operation
2.2 Power and connection
2.2.1 Local power indicator
This green indicator lights when local power is used.
2.2.2 Camera test/camera connected indicators

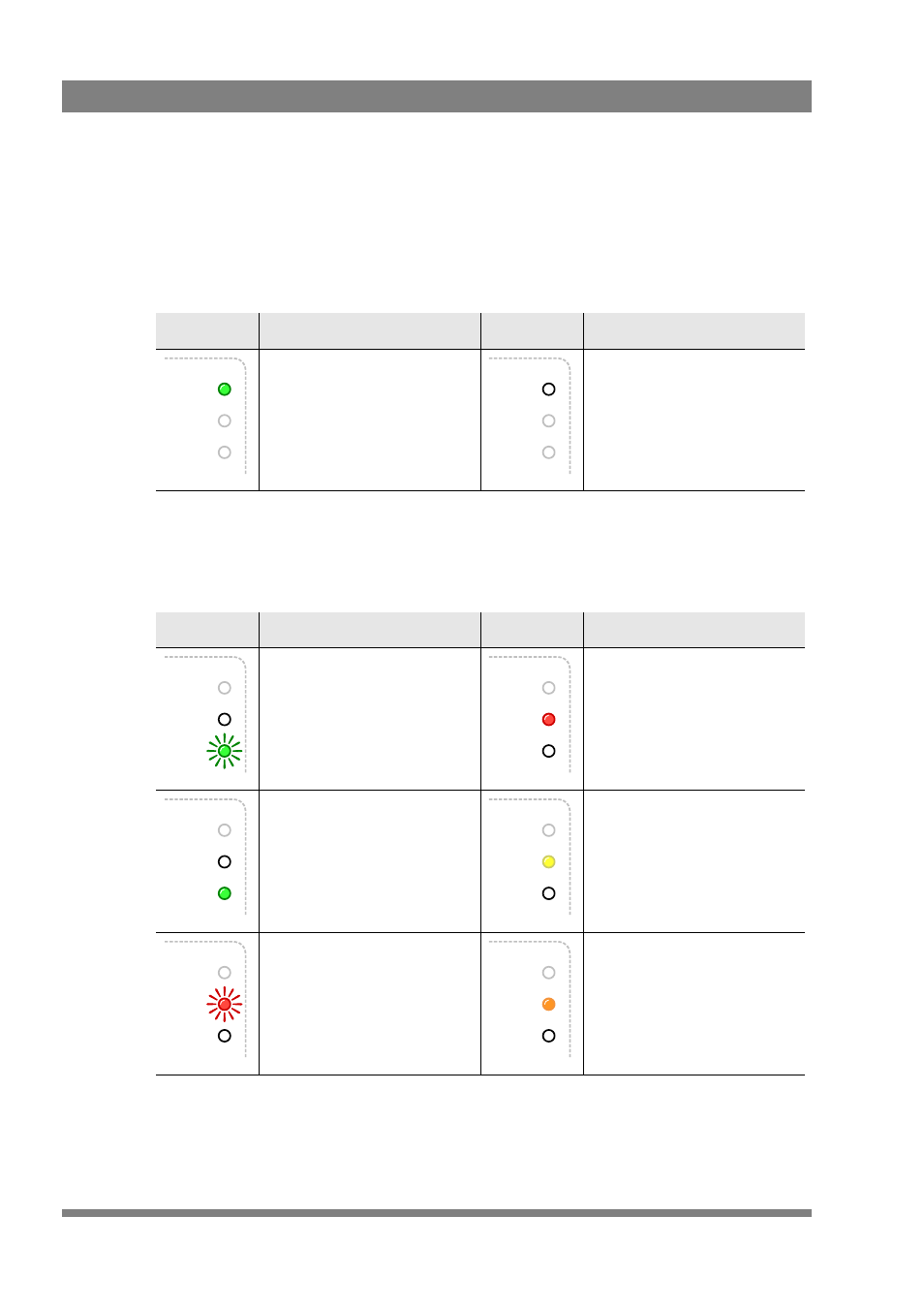

These indicators provide information about the power status of the connection:
Indicators Condition Indicators Condition
LOC PWR green:
Local power (mains) is
used. LOC PWR off:
Local power (mains) is not
used.
LOC
PWR
CAM
TST
CAM
CON
LOC
PWR
CAM
TST
CAM
CON
Indicators Condition Indicators Condition
CAM CON green flashing:
Transmission cable is
connected to camera. CAM TST red:
Transmission cable error:
shortcircuit or wrong
power system.
CAM CON green:
Transmission cable is
connected to camera and
camera is powered. CAM TST yellow:
Camera power is
switched off by a control
panel or from a menu.
CAM TST red flashing:
Transmission cable open. CAM TST orange:
Selftests are running
CAM
TST
LOC
PWR
CAM
CON
LOC
PWR
CAM
TST
CAM
CON
LOC
PWR
CAM
TST
CAM
CON
LOC
PWR
CAM
TST
CAM
CON
LOC
PWR
CAM
TST
CAM
CON
LOC
PWR
CAM
TST
CAM
CON
