See UPS status at a glance.

An intuitive LCD interface provides detailed information and menu-driven functions for UPS manage-
ment. The entire display rotates for the best orientation, whether the UPS is used vertically as a tower
unit or horizontally in a rack.

Monitor and manage the UPS from anywhere.

Connectivity options are available to suit nearly any communication requirement. The standard unit is
equipped with native USB and RS-232 serial communication ports and a DB-9 dry contact port. You can
customize your UPS by adding X-Slot

interface options for other types of communications, such as:

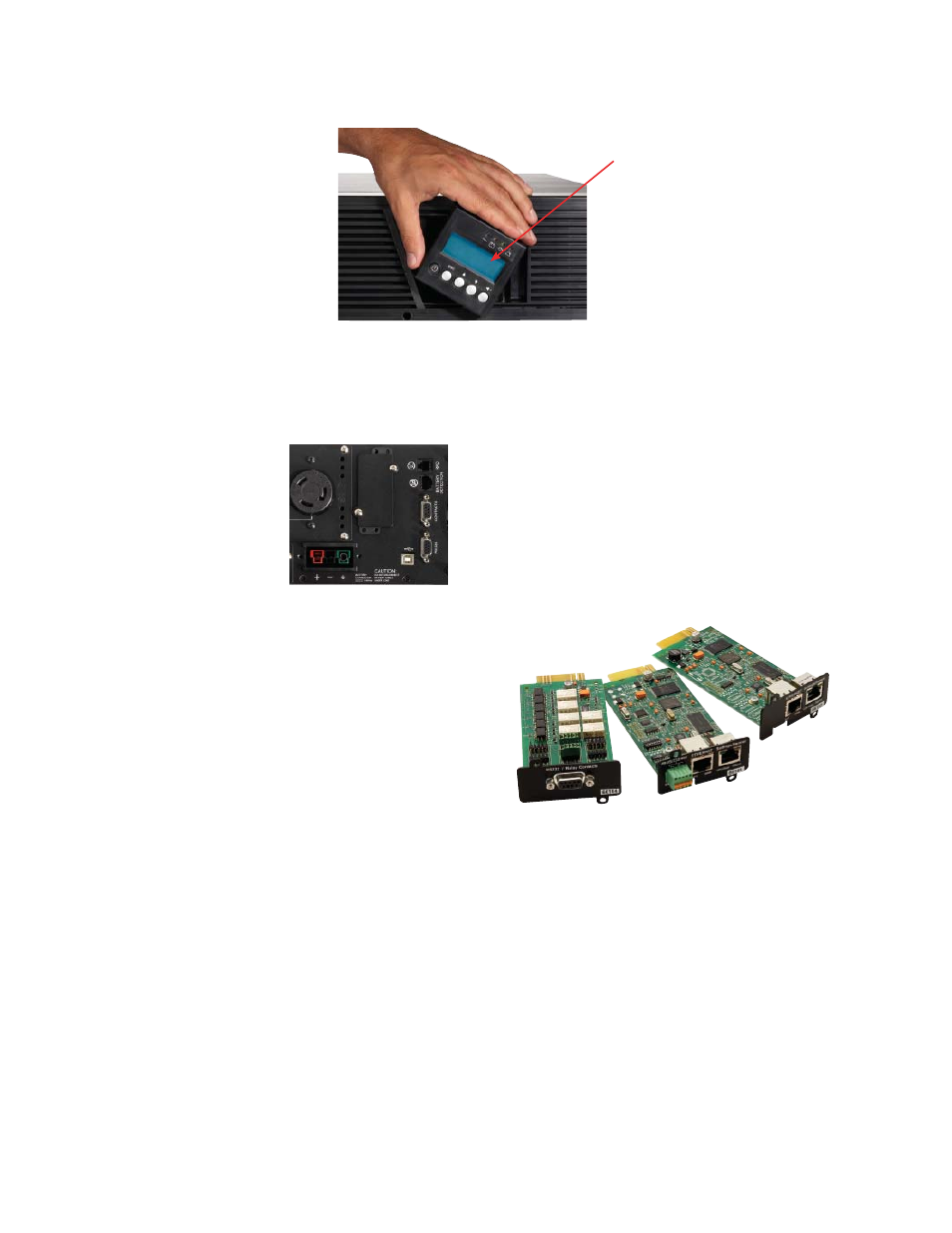

The blue, backlit LCD screen displays four
lines of alphanumeric information.

LEDs clearly display UPS status:

• Load Protected

• Downgraded Operation

• Load Not Protected

Navigate the display with buttons to scroll
up, scroll down, select or escape.

UPS ON/OFF button

9135 Ethernet cards

• A direct connection to the Ethernet network and the Internet,

with the ability to monitor and manage the UPS from a standard
Web browser

• Serial connection for monitoring and graceful shutdown of up to

five servers running various operations systems

• Serial connection for simple alarm notification via isolated con-

tacts to signal a change of state in UPS operation (typical in IBM

eServer

iSeries applications)

www.powerware.com 1.800.356.5794

1. Optional communication
card slot for Web/SNMP
interface

2. USB port

3. DB 9 serial port

4. DB 9 with five dry output
contacts

5. Remote power off
