English – Elektra Beckum KGS 303 User Manual
Page 5
5
ENGLISH
1.

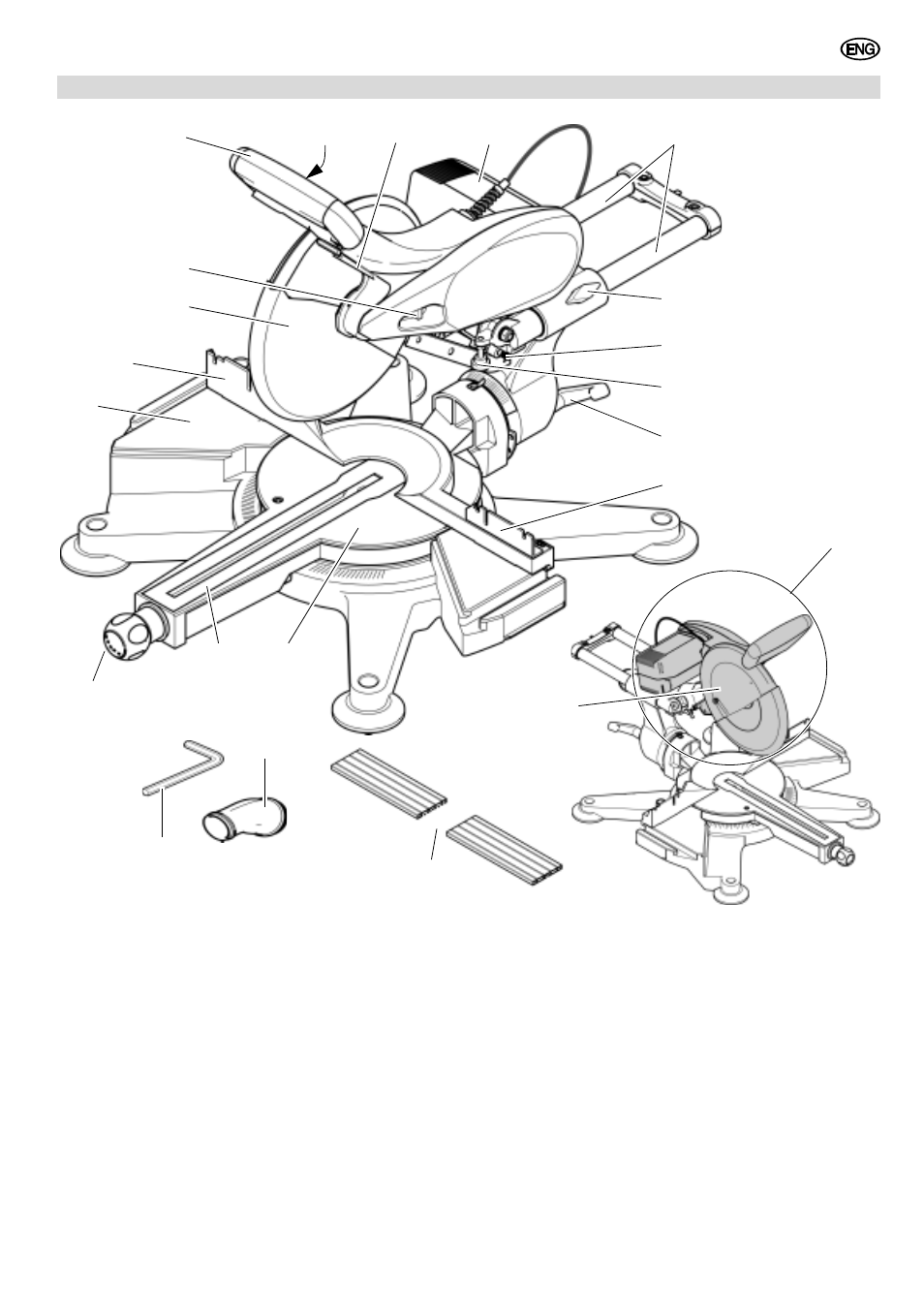

Components and Parts (base model; optional equipment not shown)
1
2
4
5
6
7
8
9
10
11
12
13
15
16
17
18
20
22
3
14
19
21
1
Handle
2
ON/OFF switch
3
Holder for Allen wrench 6 mm
4
Motor
5
Track arm guide bars
6
Track arm lock screw
7
Transport lock
8
Cutting depth limiter
9
Sawhead tilt lock lever
10
Hinged fence
11
Rotating table
12
Table insert
13
Rotating table lock screw
14
Saw base
15
Fence
16
Retractable blade guard
17
Saw blade lock
18
Sawhead assembly
19
Flange guard
20
Dust spout adapter
(for connection of dust collector)
21
auxiliary fence
Tools
22
Allen wrench 6 mm;
use metric tools only when
adjusting, repairing or maintain-
ing this machine
Machine documents
–
Operating Instructions (with War-
ranty Terms and Conditions)
–
Spare parts list
