NOTE: If you have removed the outlet fitting from the check valve prior to gluing the connection,
make sure to slide the union nut onto the supply pipe before gluing the socket fitting in place.
NOTE: If your cut-to-fit reference number is
larger than 9 ½”, you will need to extend the
discharge pipe. This can easily be done using
standard 2” PVC pipe and fittings.
Complete installation by tightening the union nuts on the Triton check valve.
HAND TIGHTEN ONLY. DO NOT USE CHANNEL LOCKS TO TIGHTEN THE
UNION NUTS.
Installation of Triton Check Valve if Using Any Equipment
Combination Not Listed Above
If you are using an equipment combination not listed above, you will need
to use the 1” cut-to-fit’ reference marks on the back side of the

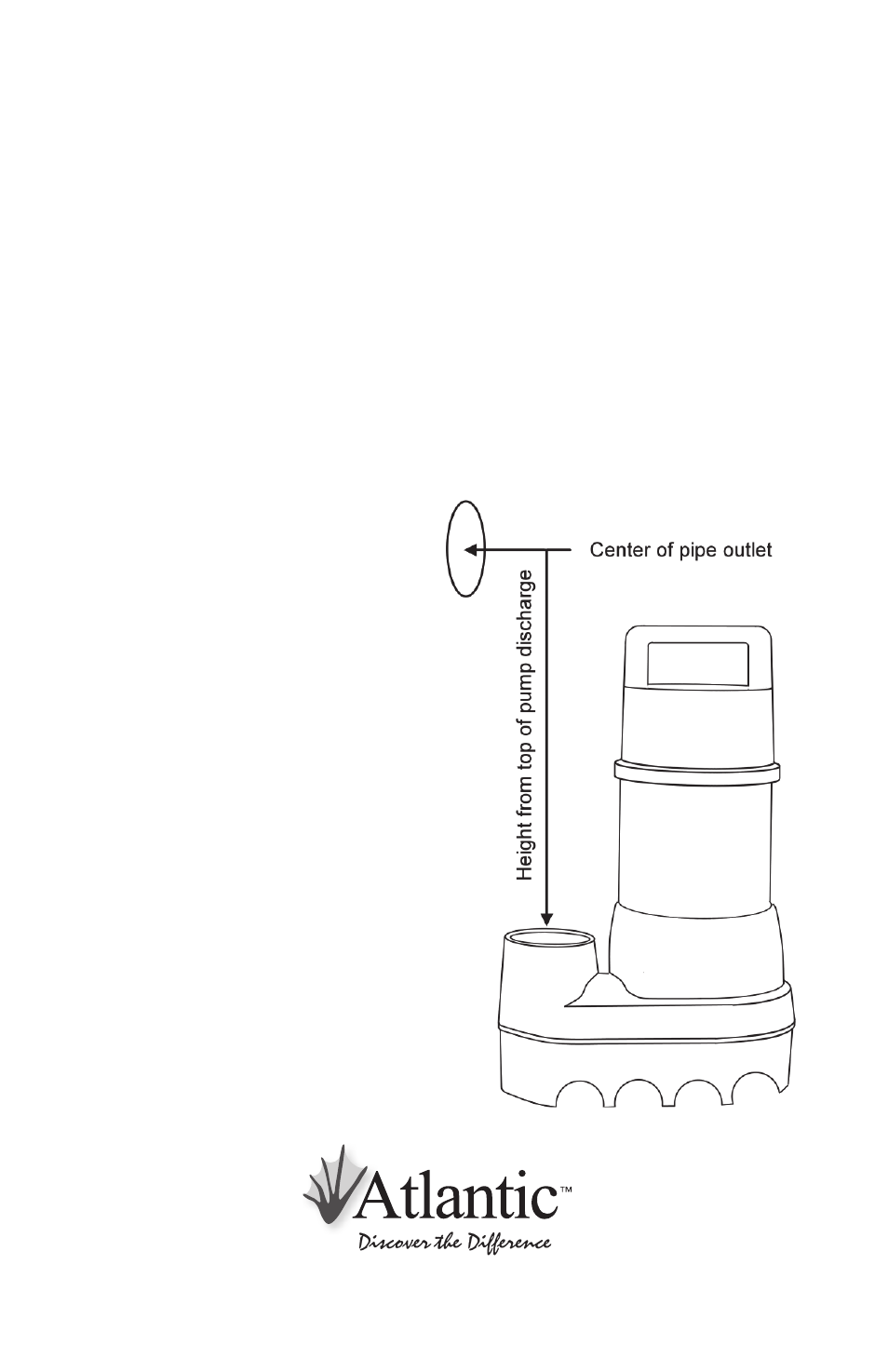

discharge pipe. Place the pump
inside the skimmer or pump vault
being used. Measure the distance
between the center of the outlet
pipe and the top of the pump
discharge. Subtract 7” from this
number. This is your ‘cut-to-fit’
reference mark. 1” cut-to-fit
reference marks are molded in
both directions on the discharge
pipe. Locate the thread size needed
for your pump and count up from
there until you find the correct
mark. Cut the discharge pipe and
follow the instructions above to
complete installation.
For your convenience; 2” and 1-1/2” outlet fittings are supplied with the Triton
Check Valve.
