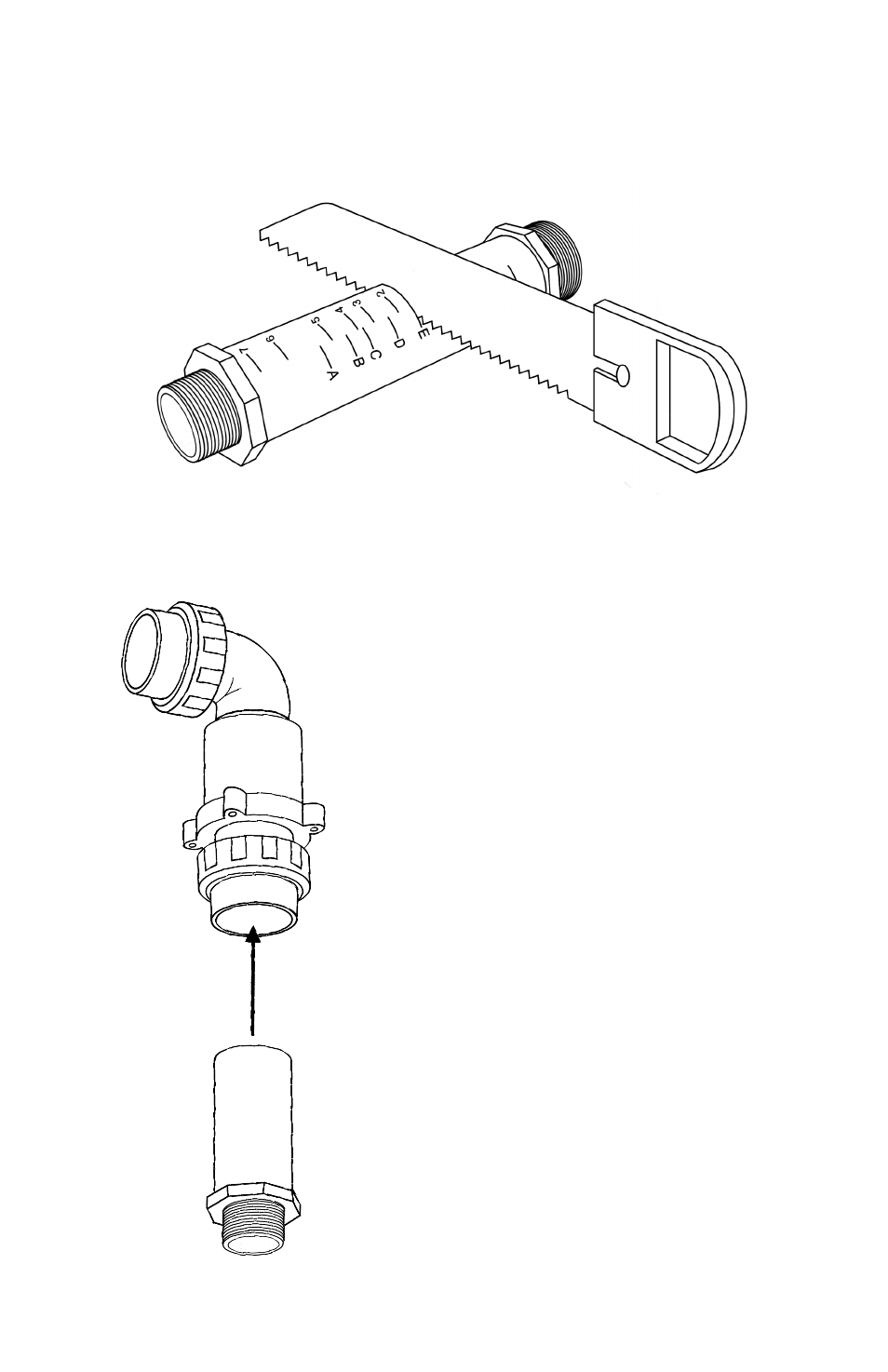

Locate the correct reference mark for this installation on the discharge pipe.
Using a hacksaw or PVC saw, cut the pipe at this mark being careful to make a
clean, square cut. Discard the end of the discharge pipe that will not be used.
NOTE: If you have removed the 2” socket fitting from the
bottom of the check valve prior to gluing the connection,
make sure to slide the union nut onto the discharge pipe
before gluing the socket fitting in place.
NOTE: If you are installing a TW2 series pump, you will
need to use the threaded transition coupling that is
supplied with the pump to make this connection. If you
are installing a SH series pump, you will need to use the
threaded transition elbow that is supplied with the pump
to make this connection.
Use a small piece of sandpaper to smooth out the cut end of the discharge
pipe. Clean the 2” socket fitting on the bottom of the check valve and the cut
end of the discharge pipe with PVC cleaner/
primer. Apply PVC glue and insert the dis-
charge pipe into the 2” socket fitting. Hold
the discharge pipe firmly in place for a few
seconds, giving the glue time to set up.
Attach the Triton Check Valve to the TidalWave
pump, by threading the discharge pipe into
the pump discharge.
Place the TidalWave pump with installed Triton
Check Valve into your Atlantic Skimmer/ Pump
Vault. Connect the outlet fitting of the Triton
Check Valve to the PVC supply line that feeds
the waterfall using PVC glue and Cleaner.
