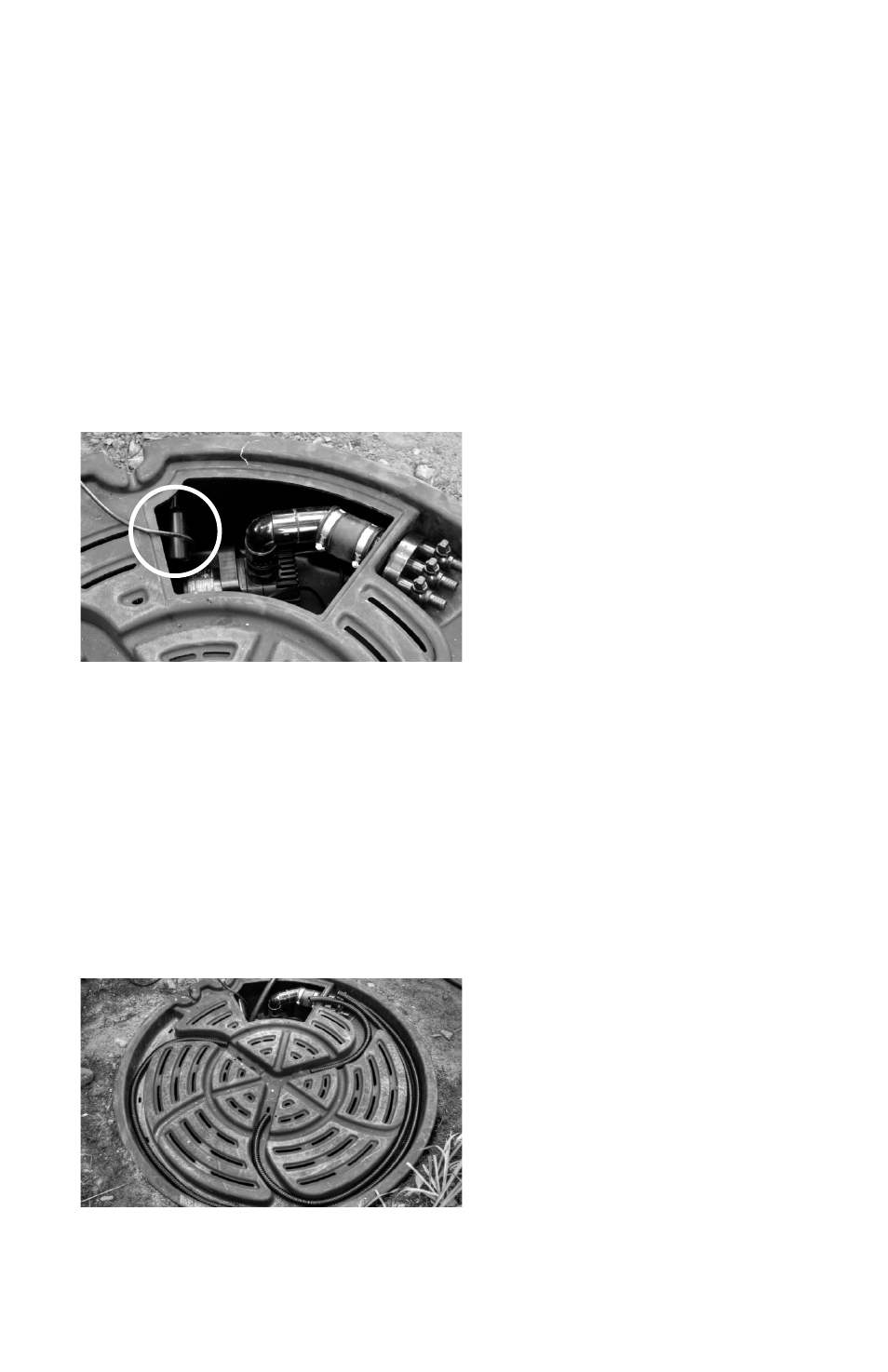

Figure 3.
Figure 4.
Atlantic Pro-Series Fountain Basins have been designed to work in con-
junction with Atlantic FBKIT1 / FBKIT3 and TidalWave Hybrid / Mag-Drive
Series pumps to simplify installation.
The FBKIT3 contains pump discharge fittings, Triton 3-way manifold,
tubing and the fittings needed to connect up to three fountain pieces
(As seen in figure 3). The FBKIT1 contains pump discharge fittings, single
valve, tubing and the fittings needed to connect one fountain piece.
Note: AF1000 Auto Fill Kit can be added to the Fountain Basin and should
be installed on the left side of the pump chamber, as seen in figure 3.
Determine the layout of the fountain pieces, and the length of the ¾”
tubing. The tubing runs on top of the Fountain Basin within the plumbing
channels, as shown in figure 4.
Note: The top deck of Atlantic Pro-Series Fountain basins are supported
by 3 (FB3200) or 7 (FB4600) support cones. When installing large, heavy
fountain pieces, it is recommended to distribute the weight evenly over
multiple cones to reduce point loads.
