INSTALLATION
Cable Connection
3
GETTING STARTED

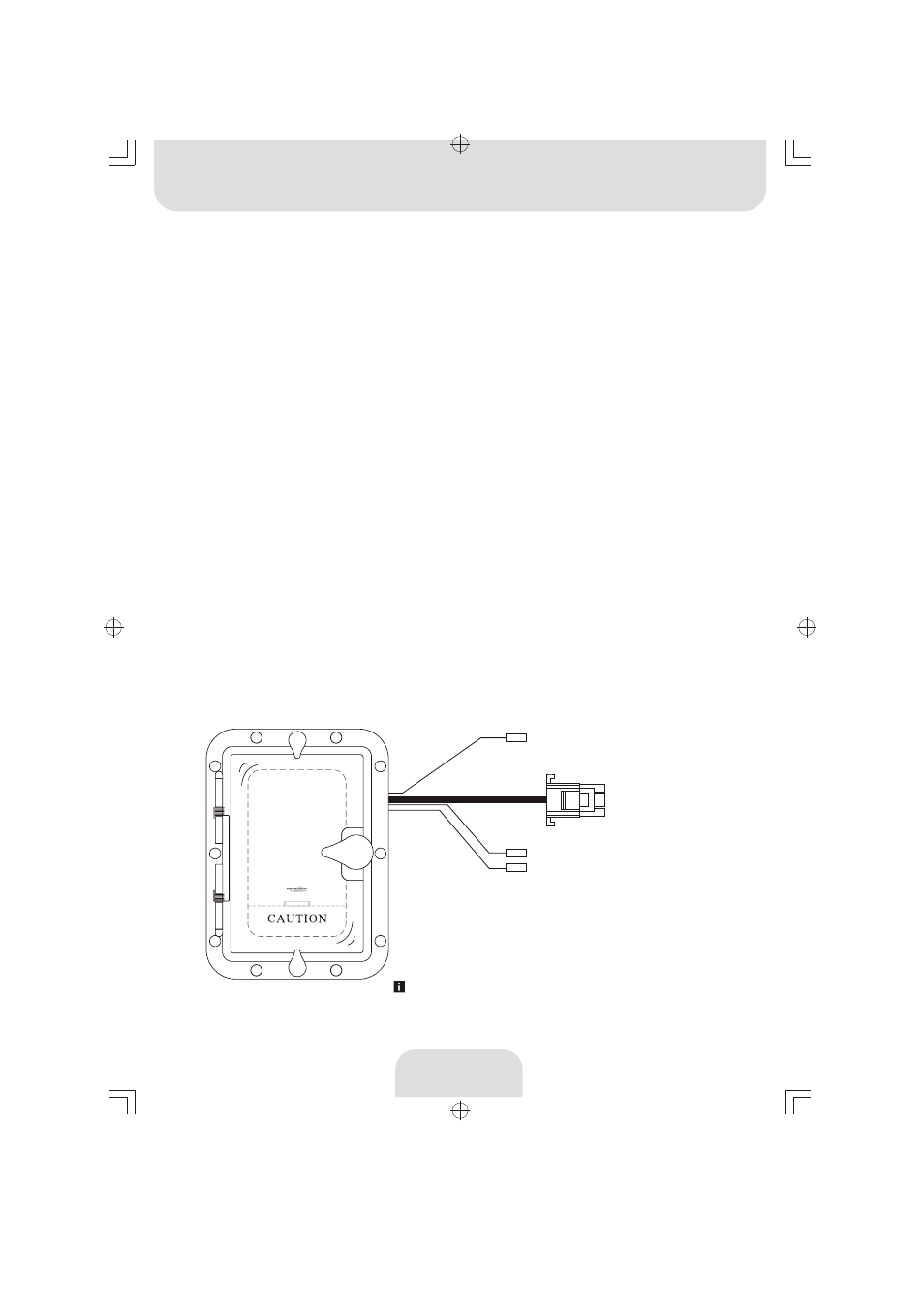

12 pin
Harness Cable
RCA Output Jack
FM Radio
Antenna jack
Left Audio
Right Audio
FM Radio: The AQ-DM-2 has U.S. and Euro FM Frequency capability.
In both applications, make sure the FM Antenna is fully extended at the
highest possible level (Height) for best performance. 2.
Plug and Play Connector: The AQ-DM-2 incorporates a 12 pin "plug
and play" connector harness. Owner product application options may
require an "optional" connector option. Contact your dealer for details. 1.
3. RCA Inputs: The AQ-DM-2 was developed with flexibility to use RCA
based Audio Media. The AQ-DM-2 has 1 set of RCA Audio Auxiliary
Inputs so you can connect other RCA based devices.
For non-OEM use, wiring harness must be
ordered separately
Part number AQ-UNH-1 or AQ-UNH-2
AQ-DM-2
Keep Dry
CONTENTS:
Please make sure the following items are included.
TM a) AQ-DM-2 Digital Media Locker
b) Water/Dust Proof RF Wireless Remote Control
c) Ten (10) Finishing Covers for Stainless Mounting Screws
TM d) Five (5) iPod Cradles
e) Ten (10) Stainless Steel Wood Screws
f) Two (2) CR-2032 Batteries
