Page 28
28
PARTS

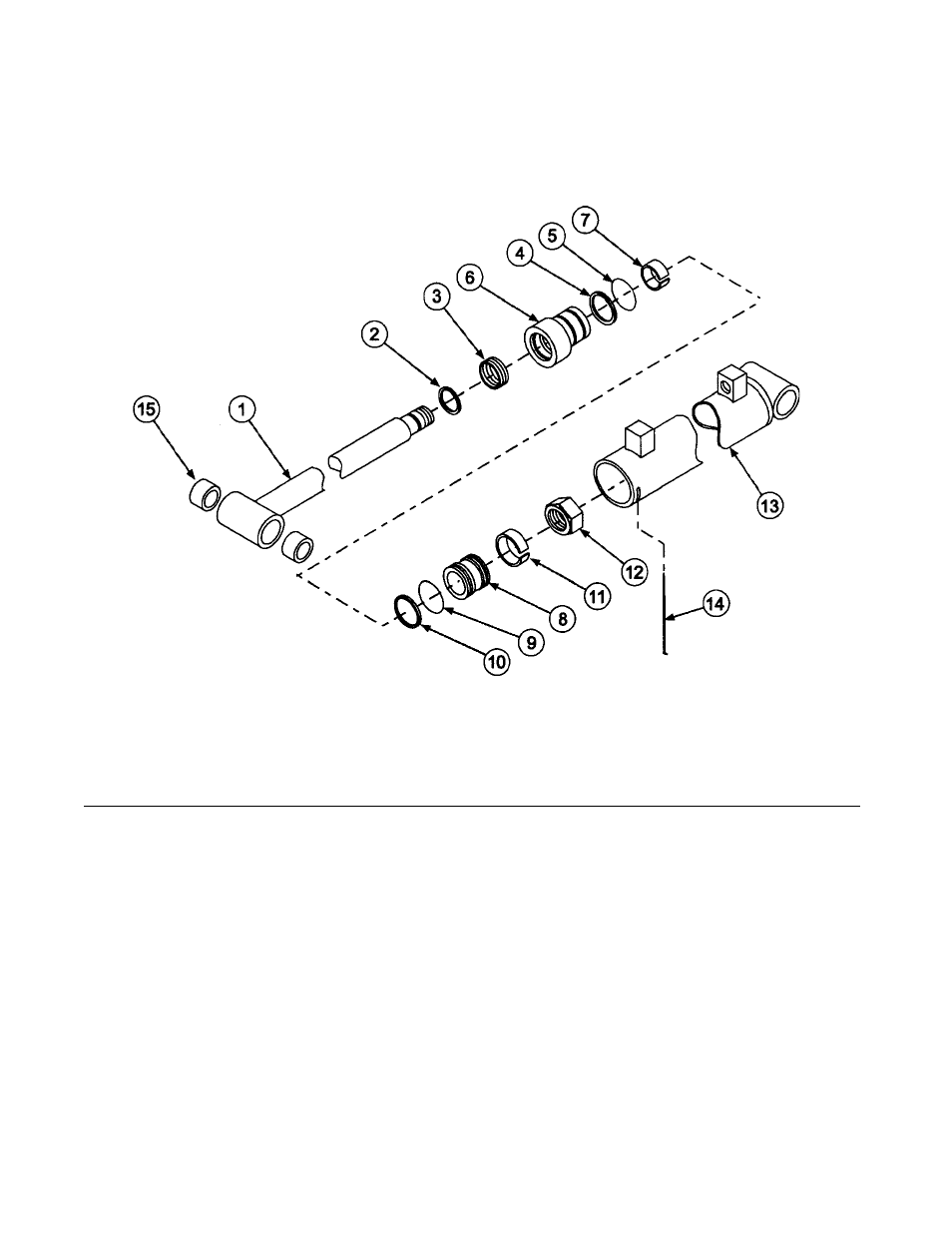

Figure 15
Lift Cylinder
NOTE: Cylinder code stamped
Near cylinder base end.
PARTS LIST - LIFT CYLINDER (2-3/4") - 47466 (Code MB) DIPPER CYLINDER (2-3/4) - 47465 (Code MD)
ITEM
PART NO.
DESCRIPTION
Qty.
1
932056
ROD, Weldment, 1-3/8" (Lift Cylinder) w/ Bushings
1
932057
ROD, Weldment, 1-3/8" (Dipper Cylinder) w/ Bushings
1
2
*
RING, Wiper
1
3
*
SEAL, V-Cup
1
4
*
RING, Backup
1
5
*
O-Ring
1
6
932058
HEAD, Cylinder
1
7
*
RING, Wear
1
8
932059
PISTON
1
9
*
O-Ring
2
10
*
SEAL, Piston
1
11
*
RING, Wear
1
12
932060
NUT, Lock, 1-14
1
13
932061
CYLINDER TUBE, Weldment (Lift Cylinder)
1
932062
CYLINDER TUBE, Weldment (Dipper Cylinder)
1
14
*
LOCKWIRE
1
NS
930320
Repair KIt, Includes (*) Items
1
15
932044
BUSHING 1.25 O.D. X 1.00 I.D. X 1.25 LONG
2
