Page 27
27
PARTS
NOTE: Cylinder code stamped
Near cylinder base end.
PARTS LIST - BUCKET CYLINDER (2-1/4") - 47464
(Code MA)
STABILIZER CYLINDER (2-1/4) - 47272
(Code LY)
ITEM
PART NO.
DESCRIPTION
Qty.
1
930322
ROD, Weldment, 1-3/8" (Bucket Cylinder w/Bushings)
1
930323
ROD, Weldment, 1-3/8" (Stabilizer Cylinder)
1
2
*
RING, Wiper
1
3
*
SEAL, V-Cup
1
4
*
RING, Backup
1
5
*
O-Ring
1
6
932049
HEAD, Cylinder
1
7
*
RING, Wear
1
8
932054
PISTON
1
9
*
O-Ring
2
10
*
SEAL, Piston
1
11
*
RING, Wear
1
12
932052
NUT, Lock
1
13
930322
CYLINDER TUBE, Weldment (Bucket Cylinder)
1
932055
CYLINDER TUBE, Weldment (Stabilizer Cylinder)
1
14
*
LOCKWIRE
1
15
932044
BUSHING ( Bucket Cylinder only) 1.25 O.D. X 1.00 I.D. X 1.25 Long
2
(Note: NO BUSHING IN STABILIZER CYLINDER)
*
930321
Repair Kit, Includes (*) Items
1

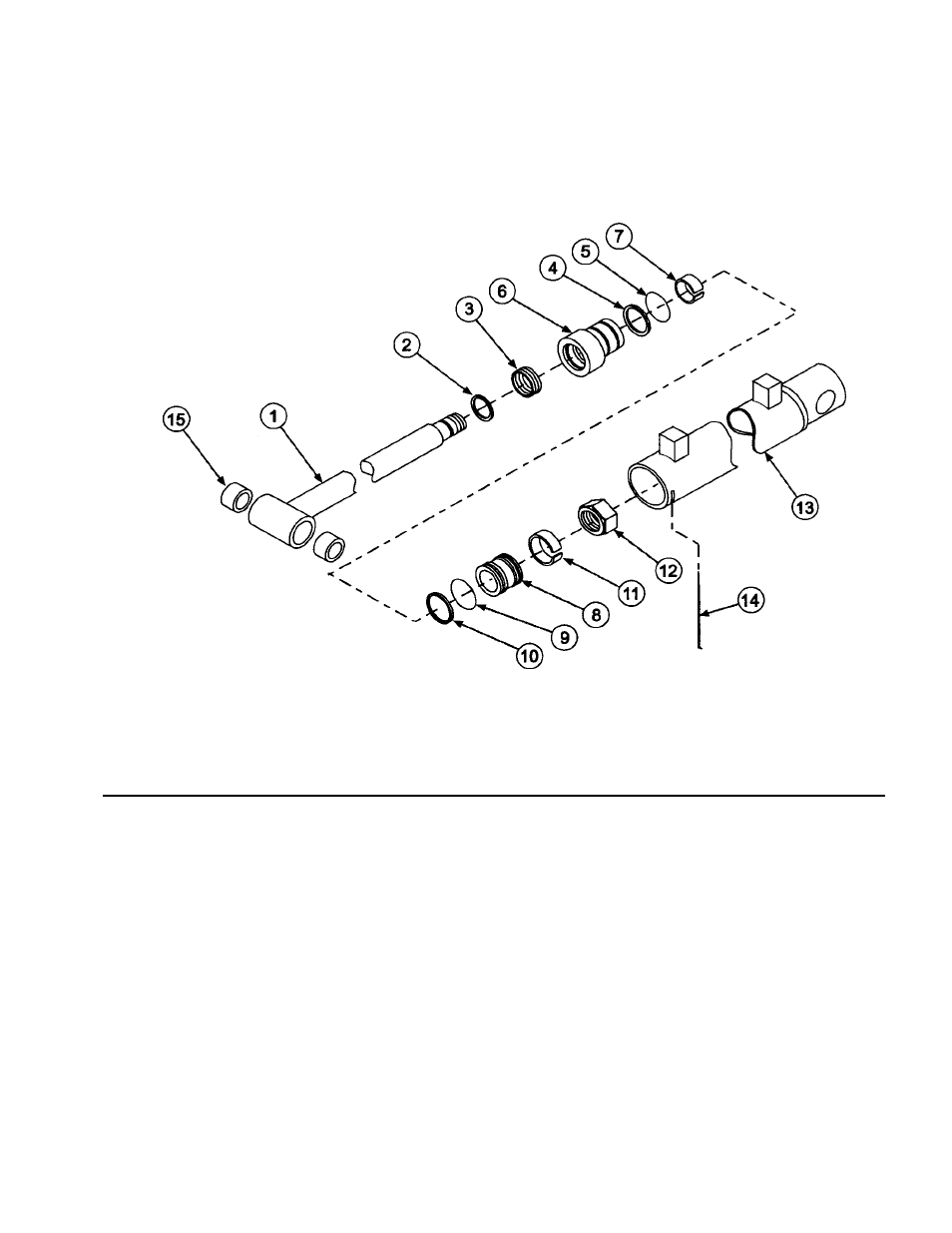

Figure 14
Bucket Cylinder
