MAXI-HEAT ® DUCTWORK INSTALLATION OPTIONS

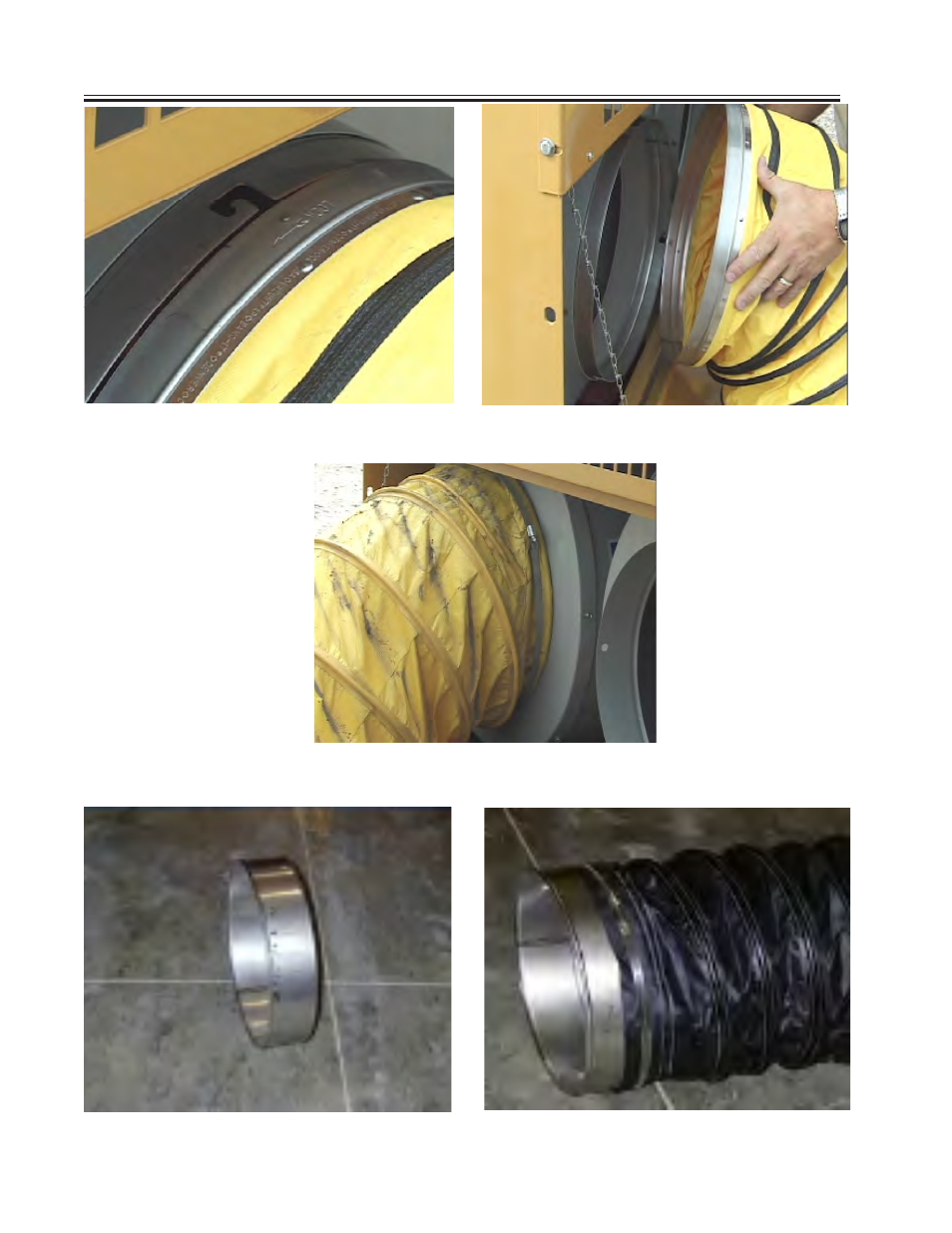

Duct (pn848172) installed on connecting band
(pn848976) with 16” screw clamp (pn848176)
Connecting Band (pn848976) for connecting multiple
hose lengths
Illustration of lock pin and arrow on 16” slip lock
connector (pn848974) for duct installation
Duct ready for installation on heater using
16” Slip-Lock Connectors (pn 848974)
16” screw clamp (pn848176) used here to attach
duct (pn848172)
