Component Identification
3A1187E 5
Component Identification
C
ti16293a
ti14792a
PRIME
PRESSURE
A
NOTE: The valve handle can move both clockwise and counter clockwise and can face different directions.
B
ti16292a

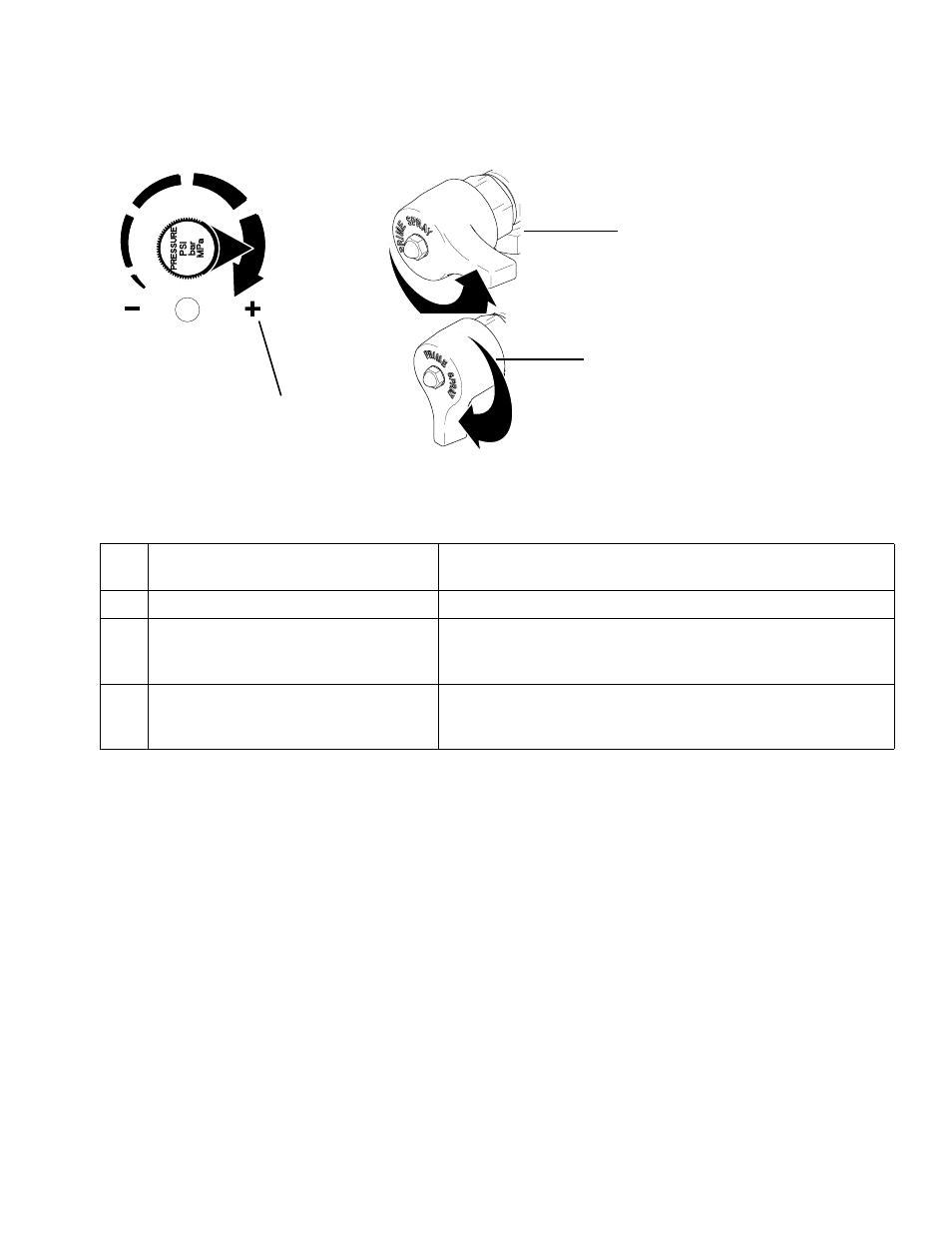

A Pressure Control Knob Adjusts pressure. Turn clockwise to increase pressure and
counterclockwise to decrease pressure.
Prime/Pressure (PR) Relief Valve Primes pump and relieves pressure from gun, hose and tip.
B Prime/Pressure (PR) Relief Valve Open
Position Relieves pressure from gun, hose and tip and primes the unit
when in the open position. It is in the Open position when there
is a wider gap between valve handle and cam body.
C Prime/Pressure (PR) Relief Valve
Closed Position Pressurizes system when closed. It is in the Closed position
when there is only a slight gap between handle and body. Turn
to the closed position to spray.
