AIRLESSCO GS6250 - Manual (Page 30)

Parts
30 3A1187E

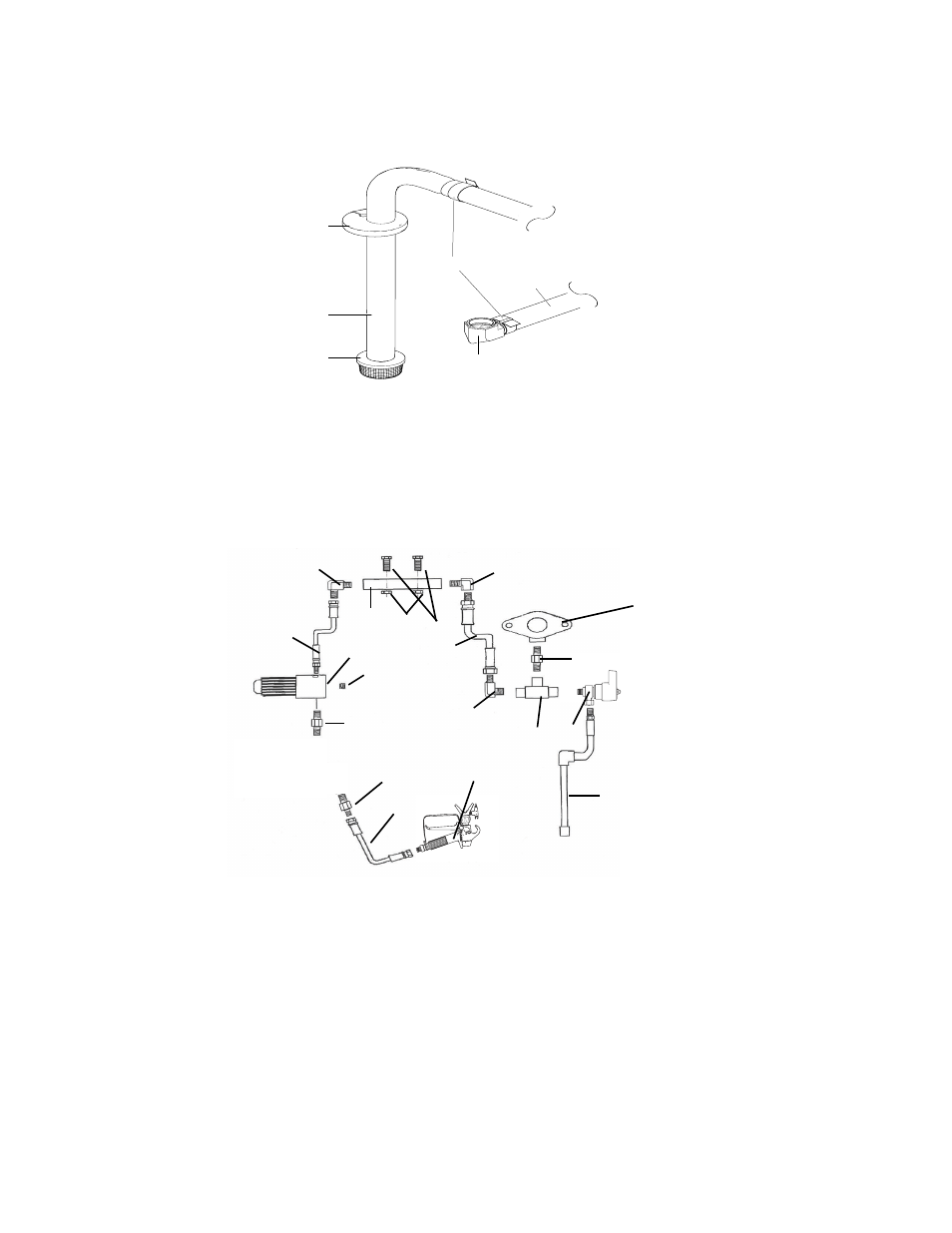

Suction Assembly (301594)
Paint System Assembly
5
4
6
2 2
3
1
ti16012a
Ref. Part Description Qty. Ref. Part Description Qty.
1 866020 ELBOW 1 4 15F149 TUBE 1
2 867446 PUNCH CLAMP 2 5 187147 INLET FILTER 1
3 866388 HOSE 54” 1 6 15F513 GASKET, PAIL 1
1
2
3
5
6
7
8
9
10
11
12
13
14
15 16
17
9
5
ti16003a
See Packing Replace-
ment Procedures
Ref. Part Description Qty. Ref. Part Description Qty.
1 GUN 9 867183 ELBOW
289316 24F575 1 10 301253 MANIFOLD 1
24E382 16M532 1 11 867325 NUT 2
2 HOSE 12 102547 BOLT 2
HSE3850 3/8” x 50’ (24F575) 1 13 867188 ELBOW 1
865675 3/8” x 50’ (16M532) 1 14 867400 HOSE, PAINT 3/8” x 21”’ 1
3 867309 NIPPLE 1 15 867660 TEE 1
5 867311 NIPPLE 1 16 865719 PRIME VALVE 1
6 557391 PLUG 1 17 248217 HOSE DRAIN 1
7 865627 MANIFOLD FILTER ASSY 1 15F514 GASKET, PAIL 1
8 301309 HOSE 1 16D431 GROMMET 1
867759 CONNECTOR, MALE, 3/8” x 1/8” 1
255439 HOSE 3/8” x 3’ (24F575) 1
