Epic Fitness EPSY5015.0 - Manual (Page 19)

19

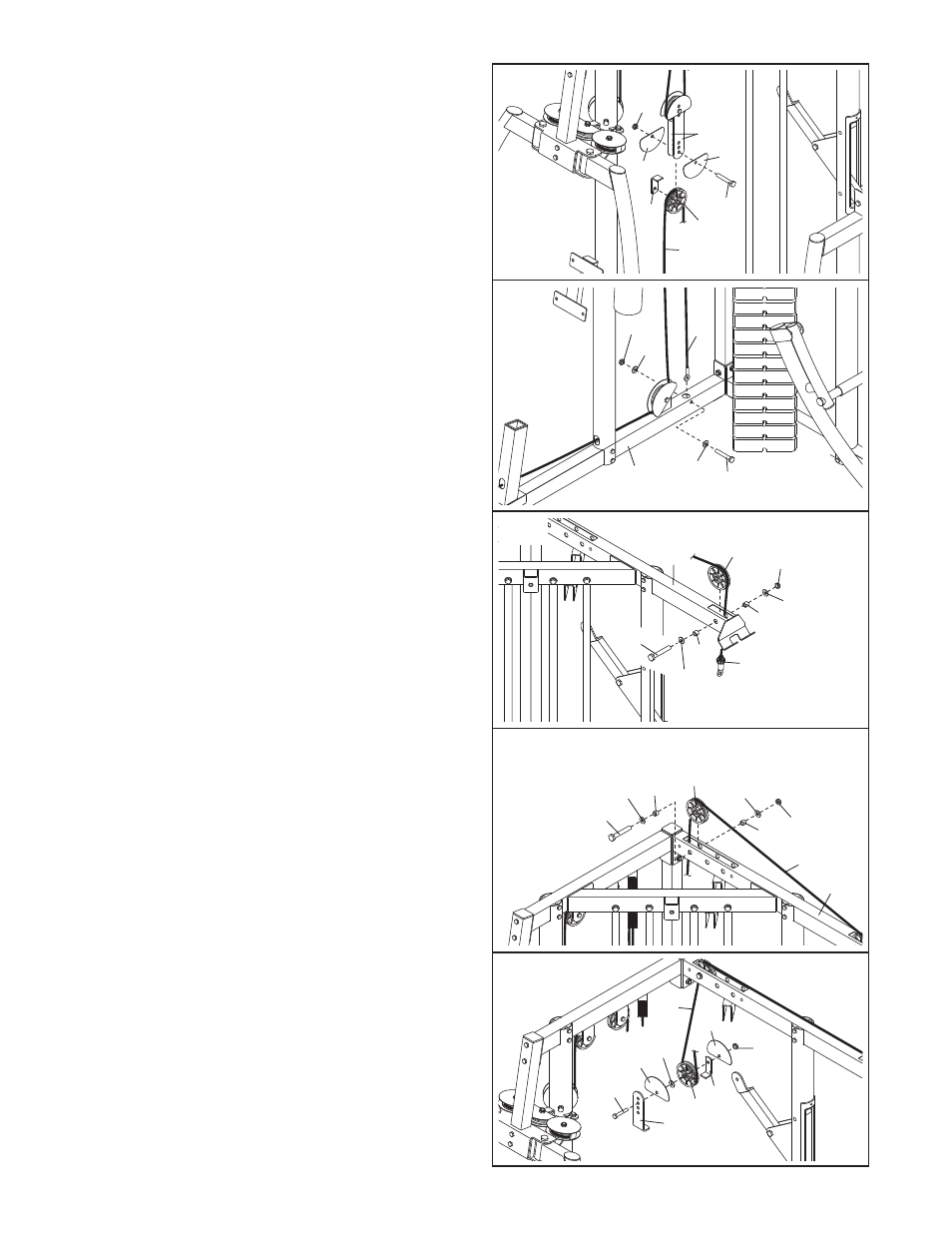

38. Wrap the Low Cable (70) over a Pulley (43).
Attach the Pulley, a Cable Trap (48), and two Half
Finger Guards (46) at the bottom hole of the two
Pulley Plates (49) with an M10 x 50mm Bolt (106)
and an M10 Nylon Locknut (111).
Makes sure
that the Cable Trap is oriented to hold the
Cable in the groove of the Pulley.
39. Attach the Low Cable (70) inside the Right Base
(1) with an M10 x 65mm Bolt (110), two M10
Washers (109), and an M10 Nylon Locknut (111).
40. Identify the High Cable (88). Route the Cable up
through the Left Top Frame (4) and over a Pulley
(43). Attach the Pulley inside the Left Top Frame
with an M10 x 65mm Bolt (110), two M10
Washers (109), two 1/2" Spacers (68), and an
M10 Nylon Locknut (111).
41. Route the High Cable (88) over a Pulley (43) and
down through the Left Top Frame (4). Attach the
Pulley inside the Left Top Frame with an M10 x
65mm Bolt (110), two M10 Washers (109), two
1/2" Spacers (68), and an M10 Nylon Locknut
(111).
43
46
46
49
106
111
70
48
38
39
1
111
109
70
110
109
41
42
110
40
110
68
43
109 109
111
68
88
4
88
46
46
48
43
50
106
111 109
42. Wrap the High Cable (88) under a Pulley (43).
Attach the Pulley, a Cable Trap (48), an M10
Washer (109), and two Half Finger Guards (46) at
the second hole from the top of the Small Pulley
Plate (50) with an M10 x 50mm Bolt (106) and an
M10 Nylon Locknut (111).
Makes sure that the
Cable Trap is oriented to hold the Cable in the
groove of the Pulley.
68
68
43
4
88
109
109
111
