Elite Screens Universal - Manual (Page 5)

Rev. 02811‐AS
www.elitescreens.com [email protected] 5
Unit mm
Models
Diagonal
&
Ratio Size
Case
Length
(A)
View
Width
(B1)
Tray
(A2) View
Height
(A1)
Overall
Height
(B)
D D1
N.W
(KGS)
WB58VW 58” (4:3) 1216 1175 1100 883 937 20 69 7.5
WB77VW 77” (4:3) 1606 1564 1450 1175 1216 20 69 11.32
WB87XW 87” (16:10) 1914 1874 1800 1175 1216 20 69 15.72
WB94HW 94” (16:9) 2120 2081 2000 1175 1216 20 69 16.9
Unit inch
Models
Diagonal
&
Ratio Size
Case
Length
(A)
View
Width
(A1)
Tray
(A2) View
Height
(B1)
Overall
Height
(B)
D D1
N.W.
(LBS)
WB58VW 58” (4:3) 47.9 46.3 43.3 34.8 36.9 0.8 2.7 16.6
WB77VW 77” (4:3) 63.2 61.6 57.1 46.3 47.9 0.8 2.7 25
WB87XW 87”(16:10) 75.4 73.8 70.9 46.3 47.9 0.8 2.7 35
WB94HW 94” (16:9) 83.5 81.9 78.7 46.3 47.9 0.8 2.7 37

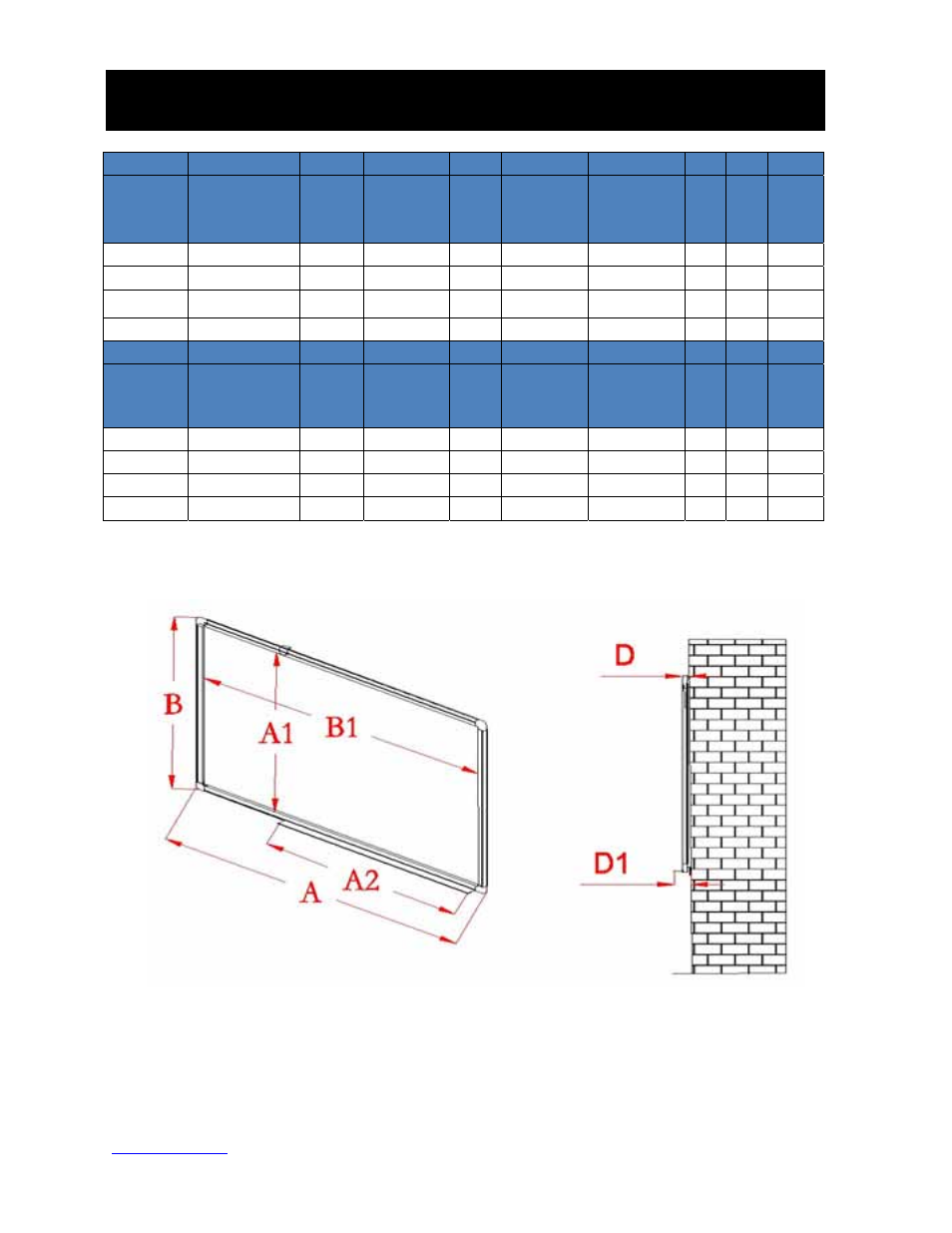

WhiteBoardScreen™ Universal Dimension Table
