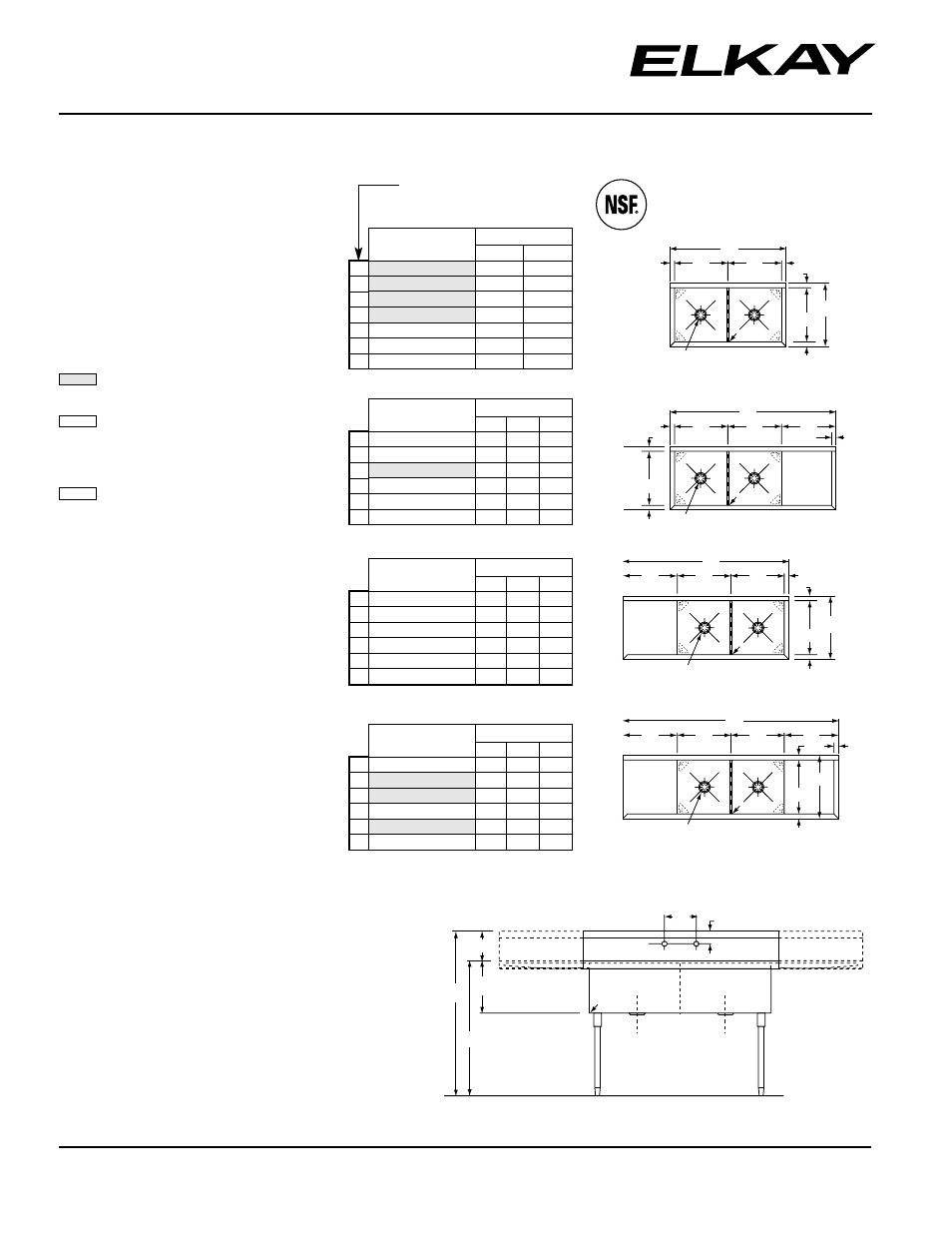

610
699
51
B B
A
38
38 38
6 R
89 DIA. CSK HOLE
610
51
B C B
A
38
38
38
89 DIA. CSK HOLE
610
699
51
B C B
A
38
38
38
89 DIA. CSK HOLE
610
699
51
B C C B
A
38
38 38
89 DIA. CSK HOLE
6 R
6 R
6 R
GENERAL
Model No. WNSF______ #14 gauge, type
304, (18-8) stainless steel scullery sink.
Compartments 356mm deep. Welded 6mm
radius coved corner construction. Welds
are ground to a smooth and cleanable
finish. Full length 203mm high backsplash
with 45° sloped top. 38mm wide inward
sloping top channel rims. Integral drain-
board/s, sink compartments pitched to
drain. Exposed surfaces polished to a
satin finish. Weldbilt sinks carry the NSF
International Certification.
Sinks supported on (4)
LK251 stainless
steel, 41mm O.D. tubular legs, #16 gauge
wall thickness. Adjustable bullet shaped
feet.
Shaded models are normally
carried in stock with standard
faucet location.
Non-shaded models with speci-
fied dimensions are considered
standard models which must be
made to order–standard faucet
location unless otherwise specified.
Last item in each group is custom.
Fill in dimensions. Standard faucet
location unless otherwise specified.
Drainboards over 648mm long fur-
nished with one tubular leg.
Drainboards over 1,219mm long
furnished with two tubular legs.
SPECIFIED FITTINGS:
SUPPLY:
DRAIN:
ALL DIMENSIONS IN MILLIMETERS.
SEE OTHER SIDE FOR DIMENSIONS IN INCHES.
•
Weldbilt ® Double Compartment Scullery Sink
6mm Radius Coved Corner
®
SPECIFICATIONS
Elkay 2222 Camden Court
Oak Brook, IL 60523
elkayusa.com
Printed in U.S.A.
©2006 Elkay
4-6H (Rev. 6/06)
Model
Dimensions
Number A B C
WNSF8230LR 1981 381 610
WNSF8236LR 2134 457 610
WNSF8248LR 2438 610 610
WNSF8254LR 2591 686 610
WNSF8260LR 2743 762 610
• WCNSF8200LR
Model
Dimensions
Number A B
WNSF8230 838 381
WNSF8236 991 457
WNSF8242 1143 533
WNSF8248 1295 610
WNSF8254 1448 686
WNSF8260 1600 762
• WCNSF8200
NO DRAINBOARD
Model
Dimensions
Number A B C
WNSF8230R 1410 381 610
WNSF8236R 1562 457 610
WNSF8248R 1867 610 610
WNSF8254R 2019 686 610
WNSF8260R 2172 762 610
• WCNSF8200R
RIGHT DRAINBOARD
Model
Dimensions
Number A B C
WNSF8230L 1410 381 610
WNSF8236L 1562 457 610
WNSF8248L 1867 610 610
WNSF8254L 2019 686 610
WNSF8260L 2172 762 610
• WCNSF8200L
LEFT DRAINBOARD
RIGHT & LEFT DRAINBOARD
(Check Model Specified):
INDICATE NUMBER OF FAUCET HOLES WHEN
PLACING ORDER. (NON-STANDARD FAUCET
AND OVERFLOW DRILLING LOCATIONS ARE
AVAILABLE. SPECIFY ON DRAWING AT RIGHT.)
203
203
356
914
1,118
38 DIA. 2 HOLES
89
6 R
