4 6160-2002
Specifications
Transmission Asynchronous, full/half duplex or simplex
Interface EIA RS-232-C/V.24
25-position D-sub female, DCE
Transmission rate Data rates up to 19.2 Kbit/s
Max interface capacity 15 RS-232-C/V.24 line interfaces
Power supply Throught PS-02 in rack card (RV-01)
Humidity 0-95% RH, non-condensing
Dimension Takes one card slot in (RV-01)
Weight 0.1 kg
Product description
LA-10 is used in a multidrop star-net structure system where you have the ability to
connect up to 15 RS-232/V.24 interfaces. LA-10 distributes transmitted data from the
master to all line interfaces. Whichever external unit that answering, the received data
through the ”OR” connection will always be received on pin 3 in the computer.
To avoid collision on the line the communications has to be controlled by the master,
that is that the units which is connected to the star-net structure has to be addresable.

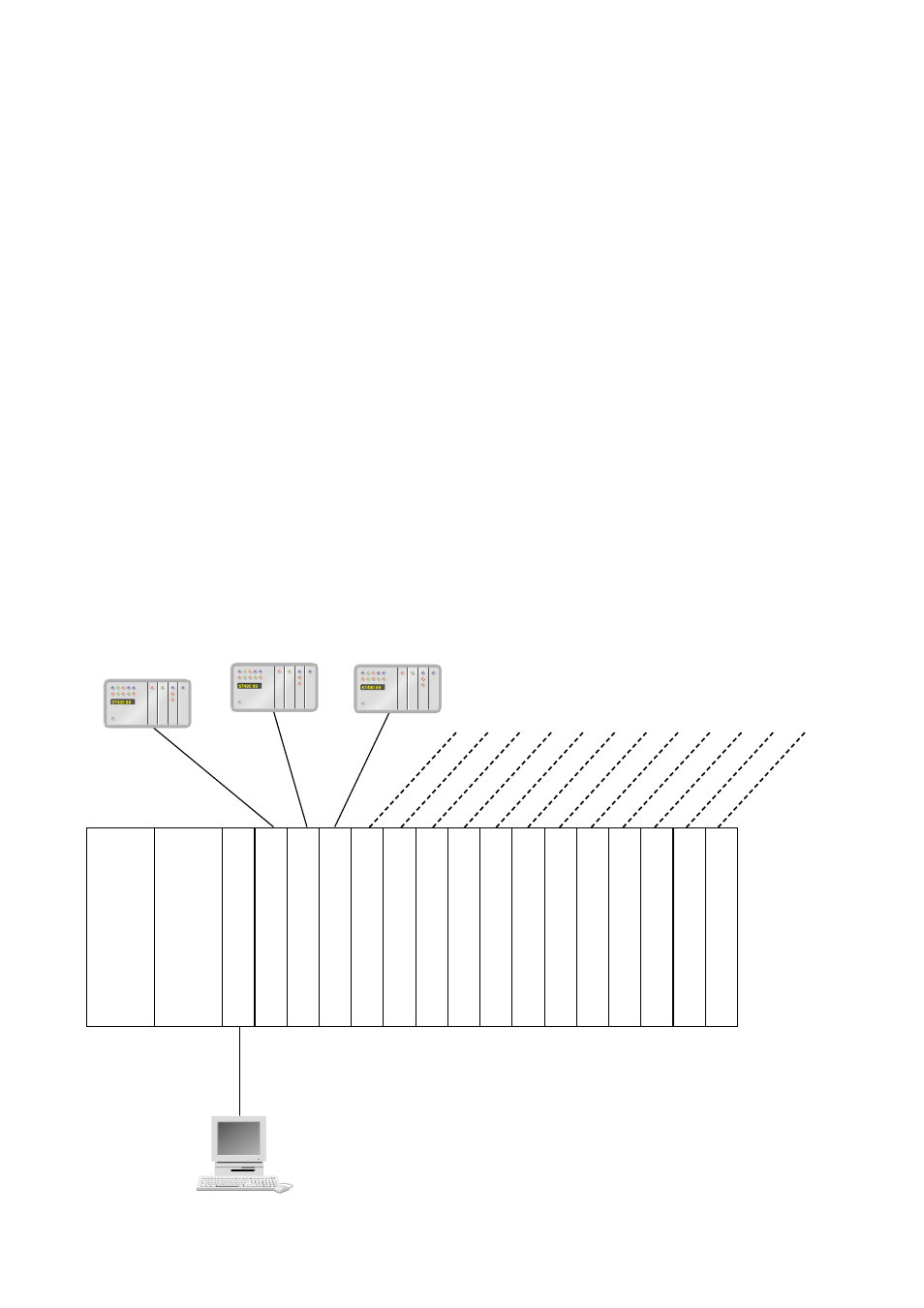

Application
LA-10
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
Rack
card
PS-02 PS-02
Power supply
Master
19” Rack (RV-01)
