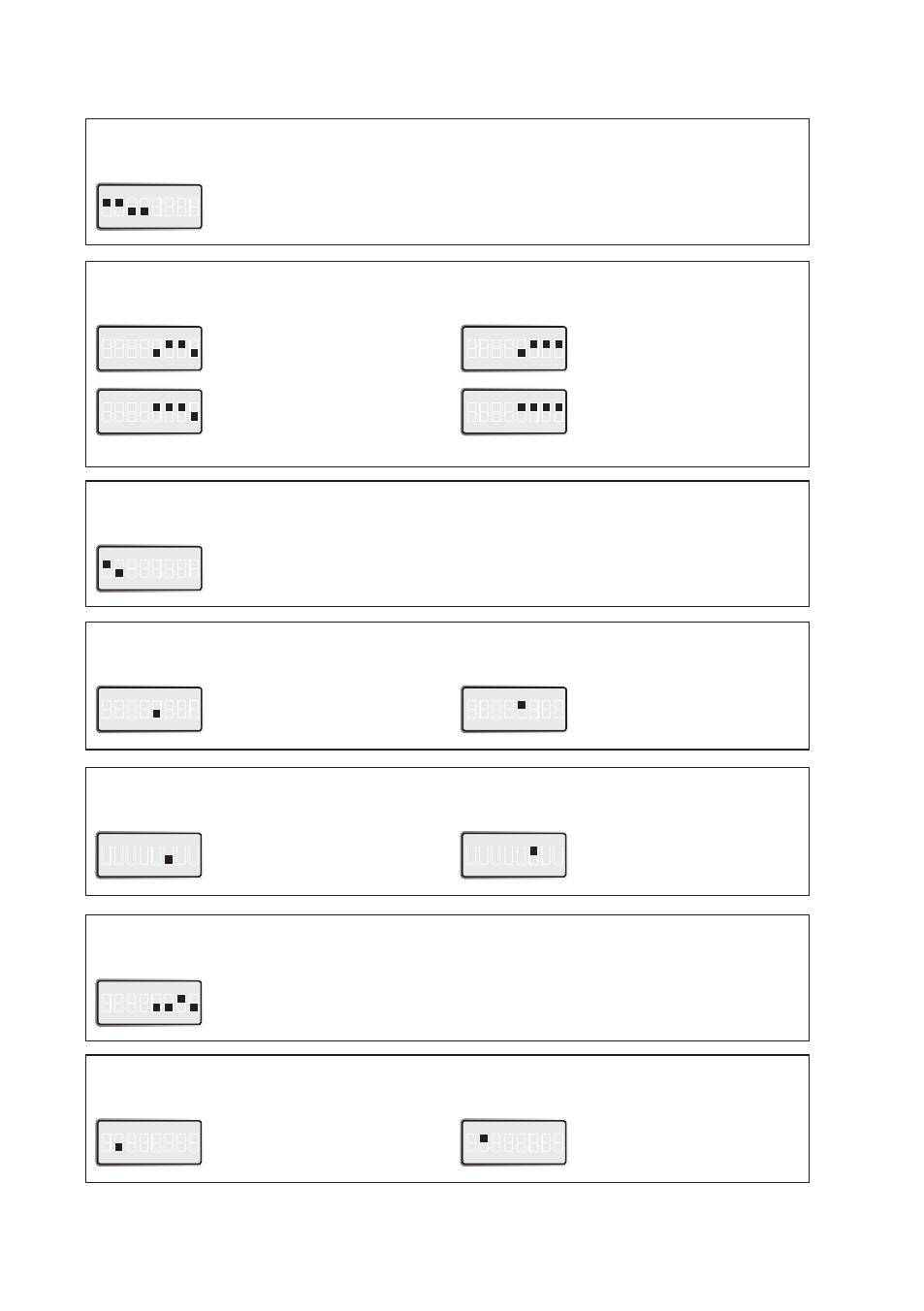

S1 DIP-switch
Selection of DTE speed
ON
1 2 3 4 5 6 7 8
1200 bit/s
S2 DIP-switch
Leased line mode selection
ON
1 2 3 4 5 6 7 8
1200 bit/s leased line /mulidrop
S4 DIP-switch
V.23 line modulation
ON
1 2 3 4 5 6 7 8
V.23 1200 HDX/FDX
S1 DIP-switch
Selection of DTE-format
ON
1 2 3 4 5 6 7 8
8E1, 8O1, 8O1
in command mode ON
1 2 3 4 5 6 7 8
8E2, 8O2, 8N2
in command mode
ON
1 2 3 4 5 6 7 8
7E1, 7O1, 8N1, 8N1
in command mode
ON
1 2 3 4 5 6 7 8
7E2, 7O2, 8N2, 8N2
in command mode
S2 DIP-switch
Leased line 2/4-wire selection
ON
1 2 3 4 5 6 7 8
2-wire leased line
ON
1 2 3 4 5 6 7 8
4-wire leased line
S3 DIP-switch
Carrier active using RTS or incoming data
ON
1 2 3 4 5 6 7 8
Incoming data
ON
1 2 3 4 5 6 7 8
RTS controlled
S4 DIP-switch
Permanent carrier control
ON
1 2 3 4 5 6 7 8
Disabled
ON
1 2 3 4 5 6 7 8
Enabled
V.23 2- / 4-wire HDX- / FDX-leased line settings for TD-36 485
