24 6618-2202

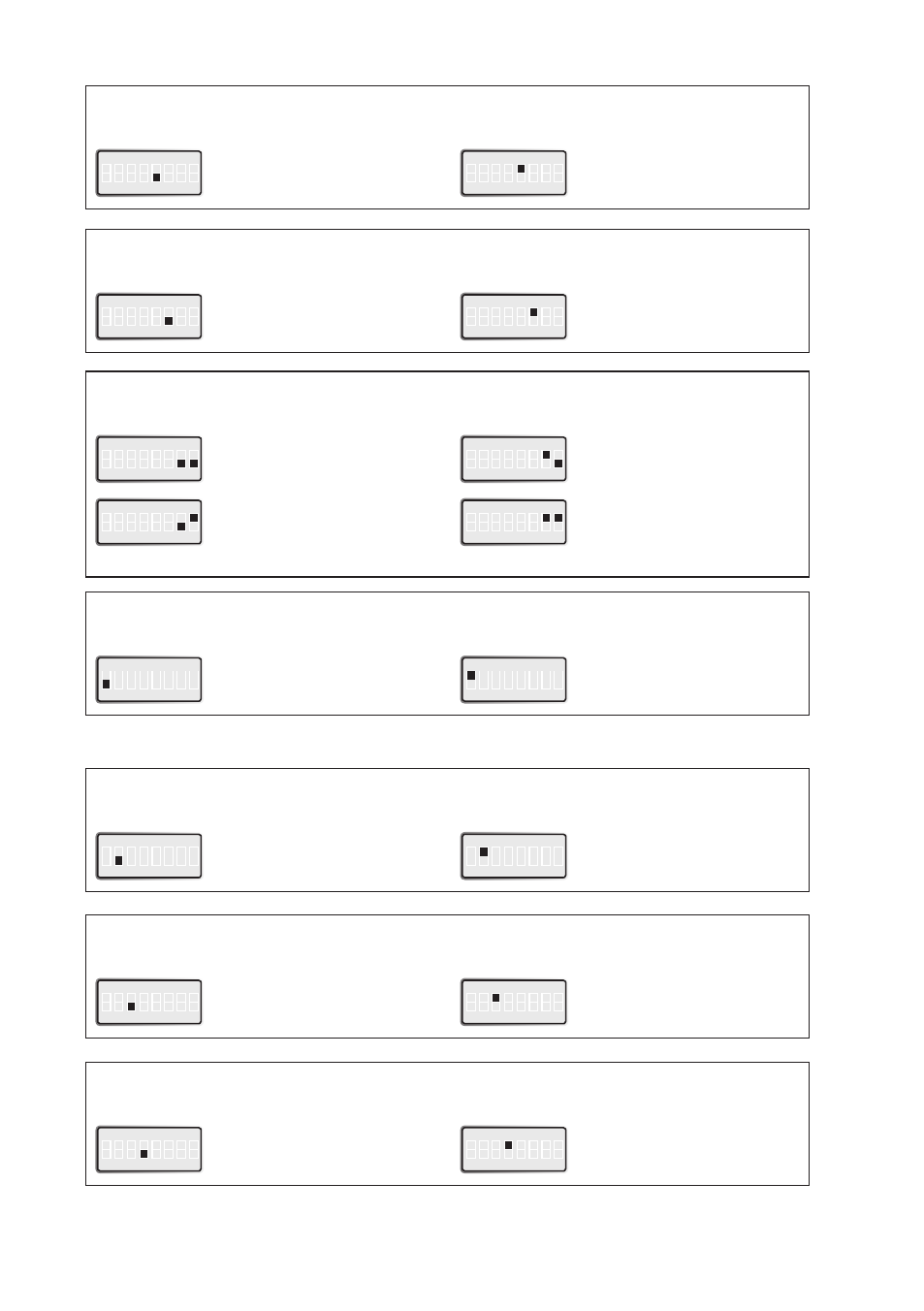

S4 DIP-switch
Auto retrain control
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Auto retrain disabled (AT%E0)
S4 DIP-switch
Data compression control
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Data compression disabled
(AT%C0)
S4 DIP-switch
DCD, DTR and DSR control
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
DCD and DSR always on, DTR
ignored (AT&C0&D0&S0)
S4 DIP-switch
Set modem to factory default
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Restore factory default setting*
* Don’t leave S4:1 in ON position if not intending to restore factory setting at every power on.
S3 DIP-switch
Flow control DTE interface
ON
1 2 3 4 5 6 7 8
Use stored value for AT&Kn
ON
1 2 3 4 5 6 7 8
RTS/CTS flow control enable
(AT&K3)
S3 DIP-switch
PLC parameter setting
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
PLC settings
(ATQ1E0&C1&K0&A1)
S3 DIP-switch
Leased Line termination
ON
1 2 3 4 5 6 7 8
Termination disabled
ON
1 2 3 4 5 6 7 8
Termination of Receiver
in 4-wire mode
ON
1 2 3 4 5 6 7 8
Termination of Transmitter / Receiver
in 2-wire mode and Transmitter in
4-wire mode
ON
1 2 3 4 5 6 7 8
Termination of both Transmitter
and Receiver in 4-wire mode
